Edifier Airpulse A80 Speaker
Edifier Airpulse A80 Speaker is available in Bangladesh.
| Tweeter unit |
Horn Loaded Ribbon Tweeter |
| Mid-Woofer |
4.5-inch Aluminum Cone 30mm VC Mid-Woofer |
| Amplifier System |
Digital Amplifier With Xmos Processor |
| Total Power Output |
L/R(Treble):10W 10W, L/R(Woofer): 40W 40W |
| Frequency Range |
52Hz-40KHz |
| Signal-To-Noise Ratio |
L/R:≥90dB(A) |
| Input Type |
AUX, PC, USB, Optical, Bluetooth (The USB, Optical Inputs Support Up to 192KHz Input Sample Rate) |
| Input Sensitivity |
AUX:450±50mV PC:550±50mV, USB:400±50mFFs |
| Optical |
400±50mFFs |
| Bluetooth Profile |
500±50mFFs |
| Sub Out |
1200mV Max |
| Mains Voltage |
AC 100-240 V /50-60 Hz |
| Cabinet Size |
140x250x220mm |
| Net Weight |
9.3 Kg(20lbs) /pair |
Hi-Res Audio Certified Active Speaker System
Airpulse A80 active bookshelf speaker system is a perfect combination of uniquely designed conventional loudspeakers and digital systems of XMOS. It supports Hi-Res high-quality audio playback and has obtained a Hi-Res official certification. They are housed in an 18-mm thick high-strength MDF cabinet with beautiful walnut finish.
Horn Loaded Ribbon Tweeter
The A80 horn-loaded ribbon tweeter is the same as A100’s, its thin aluminum ribbon diaphragm has high sensitivity, superb transient response extended frequency range, and well-defined resolution. This also leads to superior imaging of the speaker. The result is full and three dimensional sound with each detail well defined.
4.5 inch Aluminum Cone 30mm Voice Coil Mid-woofer
The Mid-woofer is a 4.5 inch unit with a hard-anodized aluminum alloy cone suspended in a heavy, ultra-rigid cast magnesium alloy frame. The 30mm diameter voice coil is unusually larger than most loudspeakers of this size. It has been shown that larger voice coils have less power compression because they run at a cooler operating temperature. Sonically this means a more realistic dynamic representation of the music.
Rich Sound in a Bold Design
The A80 cabinet is built with 18-mm thick high-strength MDF with a beautiful walnut finish to further reduce coloration. The cabinet interior is fully lined with professional waved sound absorption material. The oval-shaped vent tube in the A80 is carefully designed to minimize wind noise.

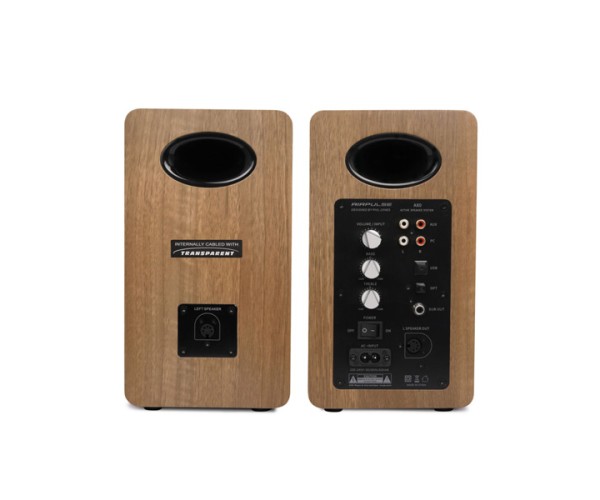

Multiple Inputs and Subwoofer Output
The system in the A80 supports multiple inputs, including Bluetooth, AUX, PC, USB, and fiber optic. The Bluetooth audio receiver is built on Qualcomm’s Bluetooth V5.0 chipset, which supports APT-X decoder, and offers a far better audio playback quality than what a traditional Bluetooth SBC codec can present.
Ultra-low Distortion Signal Processing and Amplification System
The entire digital system is built on a multi-core signal processor XMOS XU216, a 16-core powerful audio processor based on XMOS xCore200 architect, which is proud of having up to 2000MIPS processing horse-power. The power amplification part is built with 2 pieces of TAS5754 Class-D amplifier from Texas Instrument. With very low output jitter, the unpacked audio signal can be delivered to the XMOS processor with zero loss.
TRANSPARENT Internal Wiring
The A80 uses TRANSPARENT audiophile-grade speaker cable made in the USA for internal wiring. Signals are transferred with utmost accuracy with a minimum loss, which brought you much closer to music!
Acoustic Isolation Pads
The 8-degree elevation acoustical isolation pads included can reduce vibration and help to eliminate unwanted levels of audio resonance to achieve the optimal audio performance.
