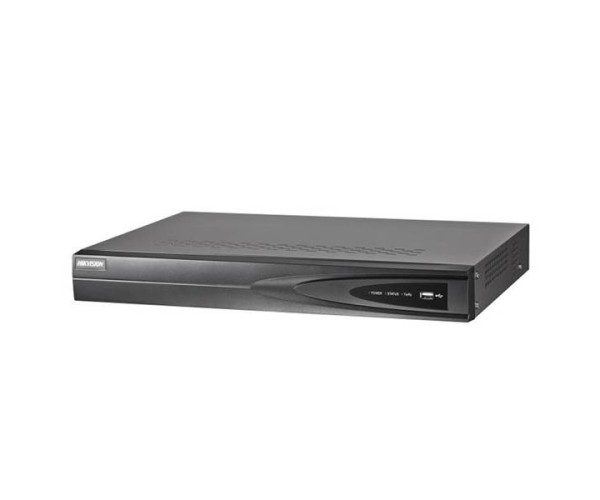

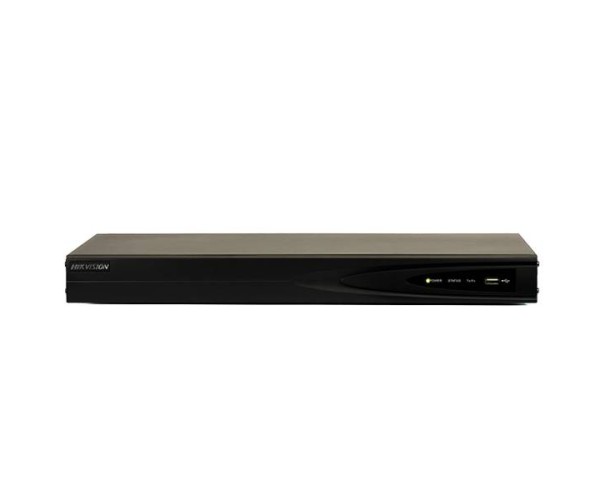

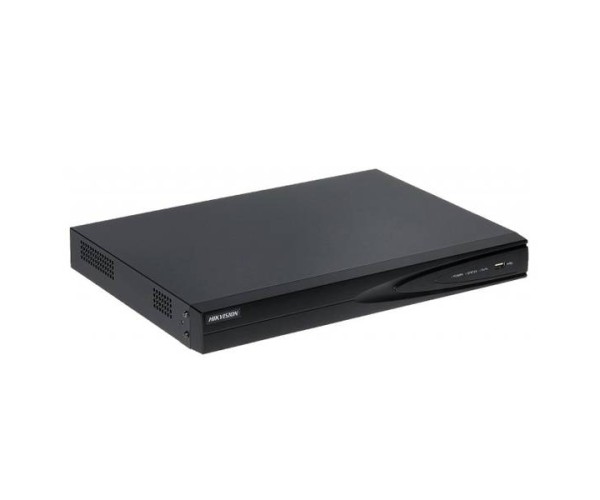

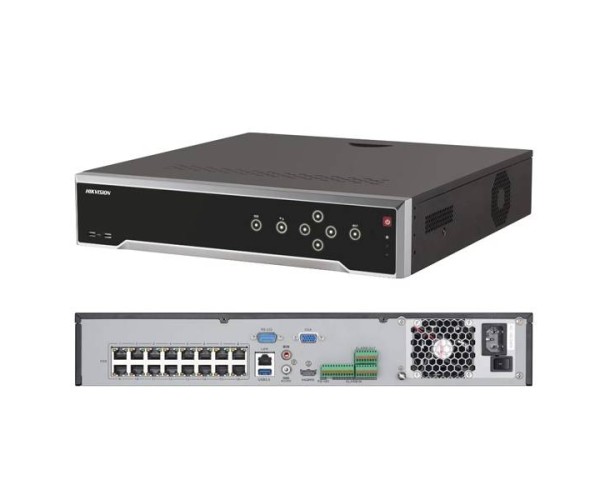

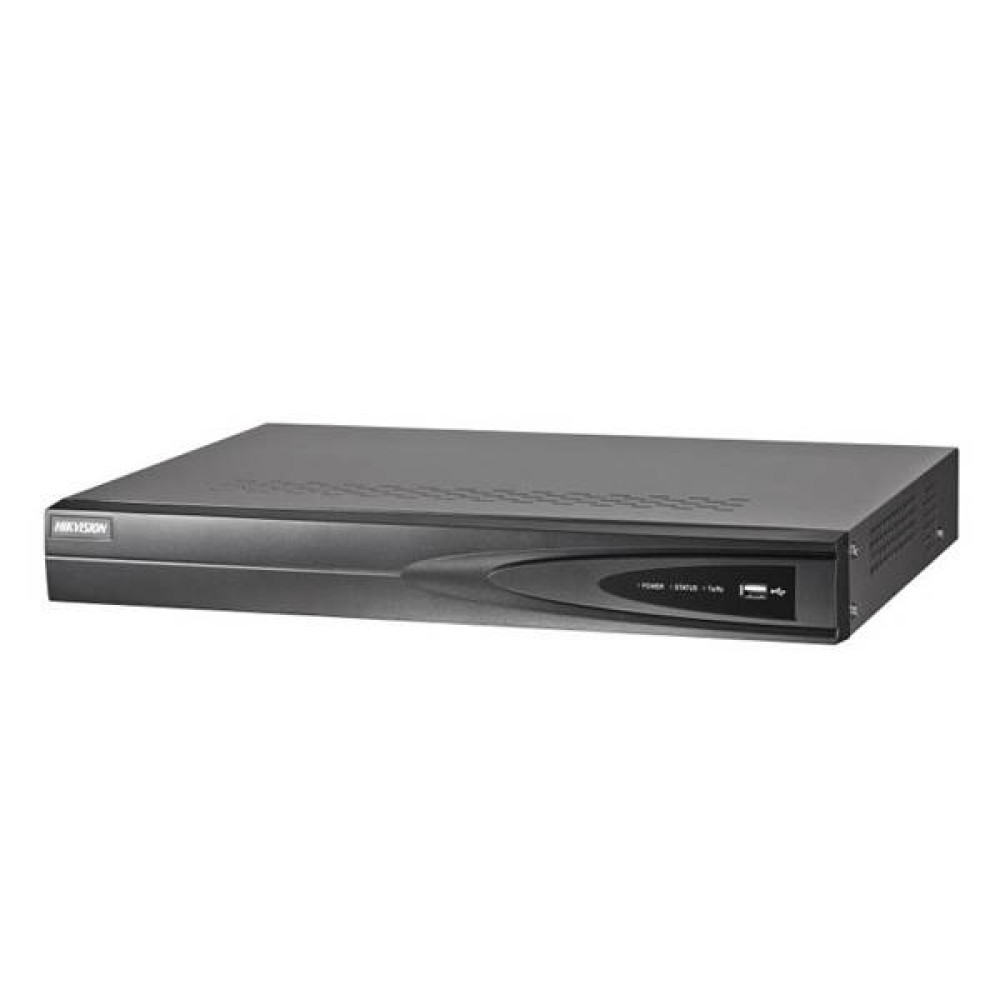

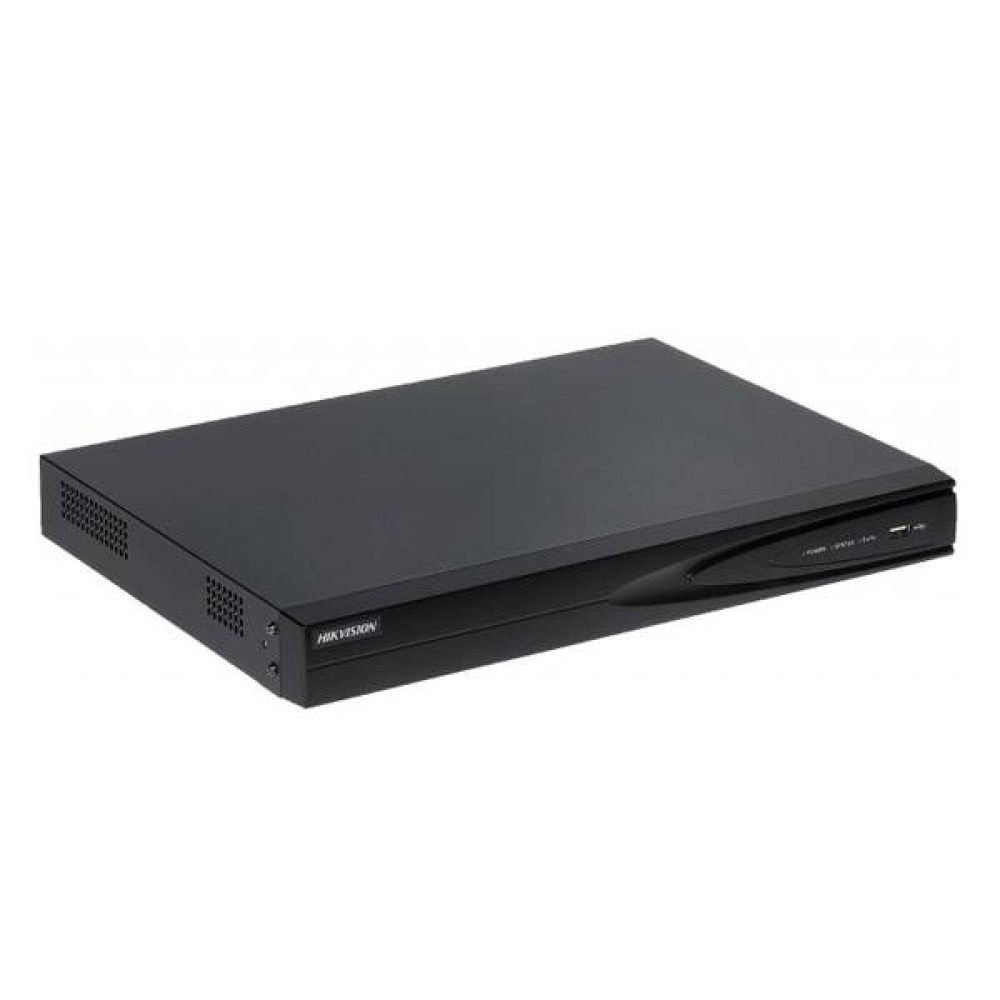

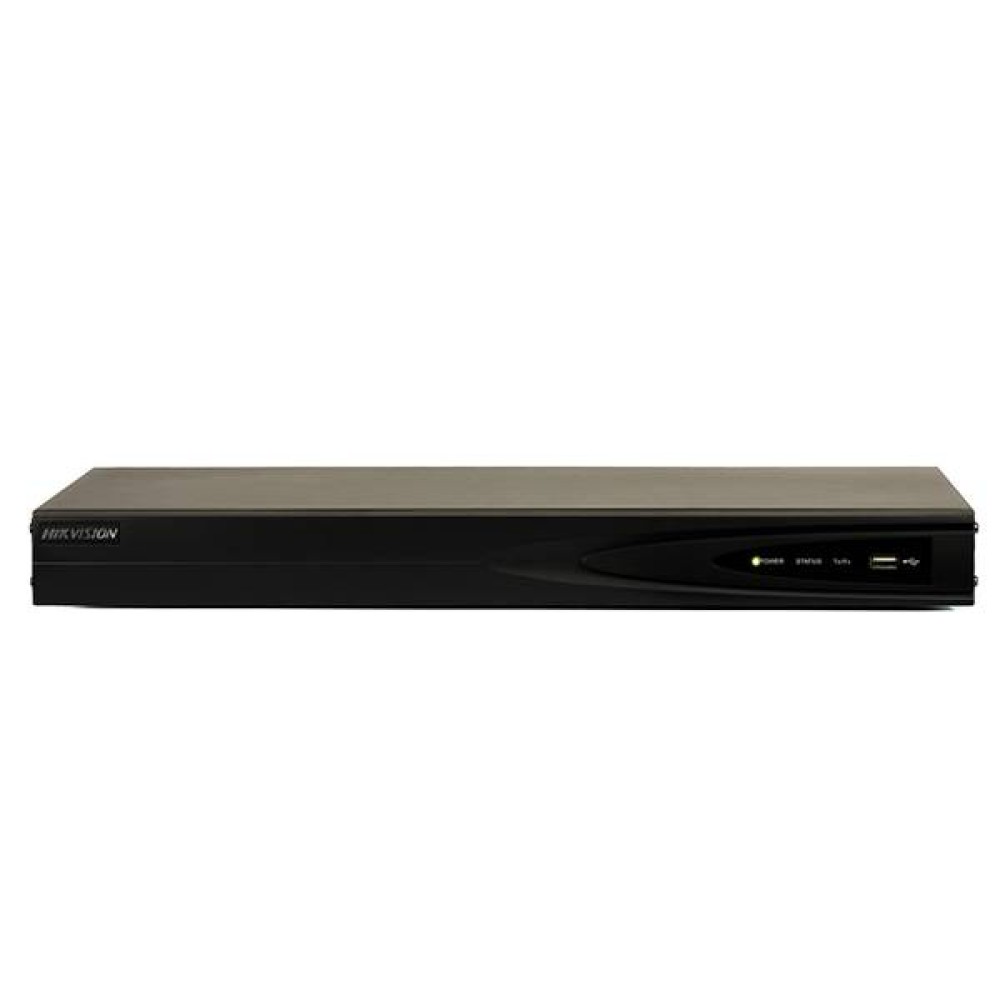

Hikvision DS-7616NI-K2 4K resolution 16 channel IP Network Video Recorder (NVR)
Hikvision DS-7616NI-K2 IP Video Recorder is a modern IP network
video recorder capable of monitoring, recording and playing back images from 32 IP cameras of megapixel resolutions, up to 8 MP. This standalone NVR with two video outputs (HDMI up to 4K resolution and VGA up to 1080p) can be directly connected to monitors or televisions, without a need for an additional computer.
The view on each output can be independently configured (different window layouts), and of the windows can display the image from any camera. Two SATA ports allow for connecting hard disks with a capacity of up to 6 TB each. The NVR also supports network NAS arrays. In the event of a memory overflow, automatic overwrite function prevents the loss of the latest data. Built-in USB ports allow the user to connect a memory stick or external disk and copy specific fragments to the external data carrier.
Hikvision DS-7616NI-K2 IP Video Recorder 4K Specifications:
| Model |
Hikvision DS-7632NI-K2 |
| Code |
K22166 |
| Standard |
IP |
| Number of channels |
32 |
| Max total bandwidth (IN/OUT) [Mbps] |
256 / 160 |
| Remote connections |
up to 128 |
| HDD |
Max 2x 6 TB HDD SATA |
| Video outputs |
HDMI, VGA |
| HDMI/VGA display modes |
HDMI: Max. 4k (3840 x 2160)
VGA: Max. 1080p (1920 x 1080) |
| Max recording resolution |
8 MP |
| Synchronous playback |
8 channels |
| Decoding |
two 4k channels, eight 1080p channels |
| S.M.A.R.T. |
YES |
| Supported camera brands |
ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, PANASONIC, Pelco, SAMSUNG, SANYO, SONY, Vivotek, ZAVIO, ONVIF or PSIA |
| Ethernet port |
RJ-45 10/100/1000 Mbps (Auto) |
| Video compression |
H.265 /H.265/H.264 /H.264/MPEG4 |
| Recording modes |
Continuous, schedule, motion detection, events (VCA) |
| Protocols |
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPNP, HTTPS, RTSP |
| Backup/archiving |
USB memory device, remote server |
| ANR function |
YES
|
| Audio IN/OUT |
RCA 1 / 1 |
| Alarm IN/OUT |
4/1 |
| Additional connectors |
1 x USB 2.0, 1 x USB 3.0 |
| Mobile access |
Android, iOS |
| Browser |
IE |
| Operating temperature range |
-10 ... 55 °C |
| Power consumption |
<15 W (without an HDD) |
| Supply voltage |
12 VDC (AC/DC adapter incl.) |
| Dimensions ( S x G x W ) |
385 x 315 x 52 mm |
| Weight |
2.97 kg |
Key features:
- Recording resolution up to 8 MP,
- Support for up to 32 Hikvision IP cameras or Onvif-compliant cameras from other manufactures,
- Two independent monitor outputs: HDMI1 (4K/30Hz, 2k,1080p/30/60Hz), VGA2 (1080p/60Hz),
- Support for two SATA disks, each up to 6 TB,
- Max total bandwidth (input/output): 256/160 Mbps,
- Support for ANR,
- Support for H.265/H.264 /H.264/MPEG4 video compression
- VCA image analysis,
- Integration with cash registers via POS,
- 1 x USB 2.0, 1 x USB 3.0 interfaces,
- Monitoring of LAN, cameras, disk statuses.
