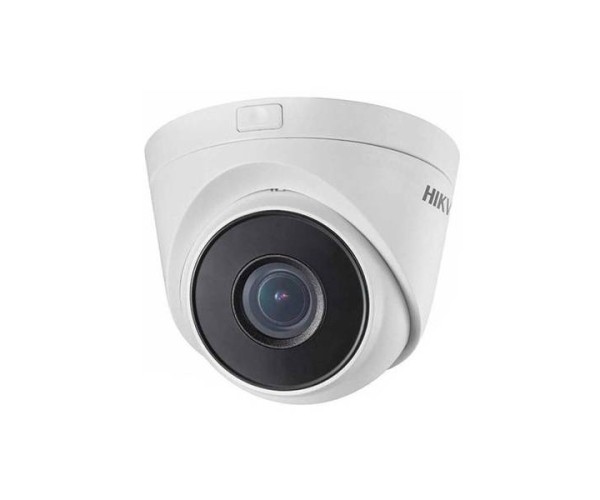

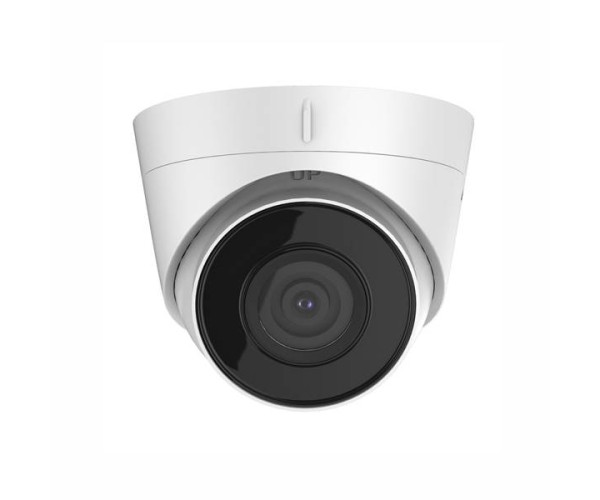

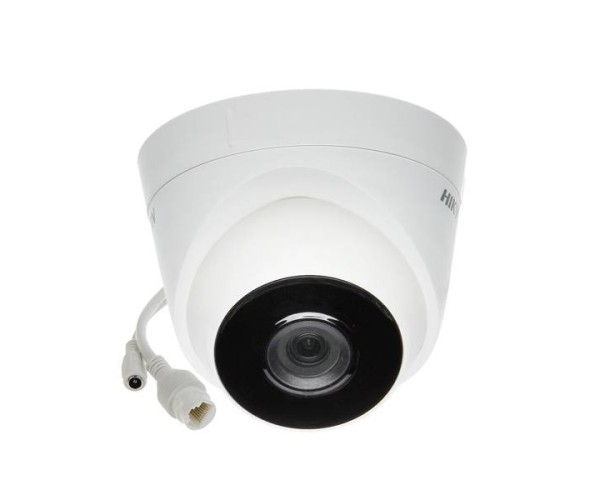

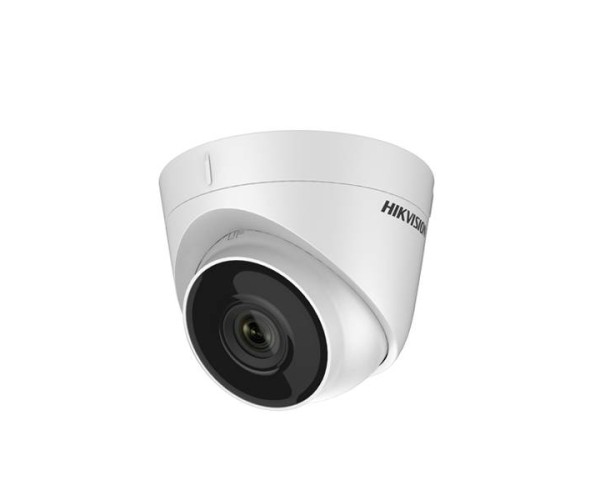

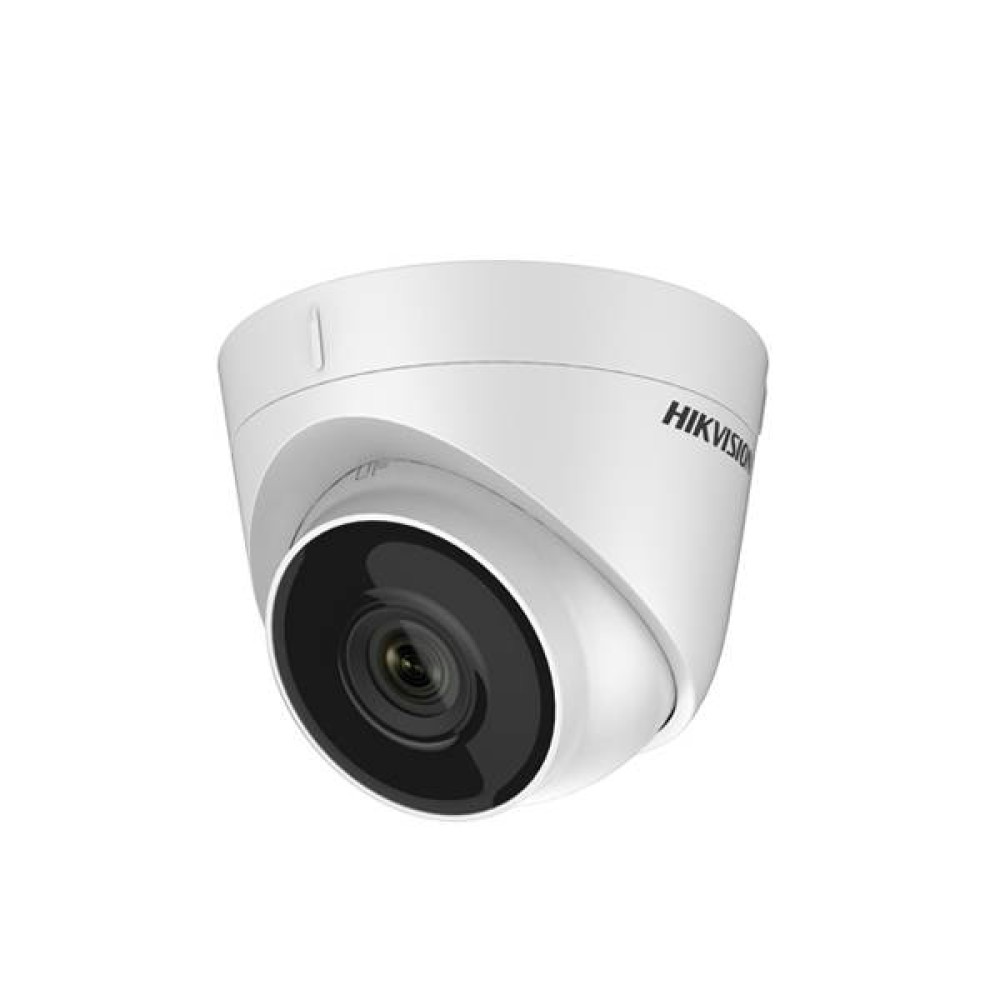

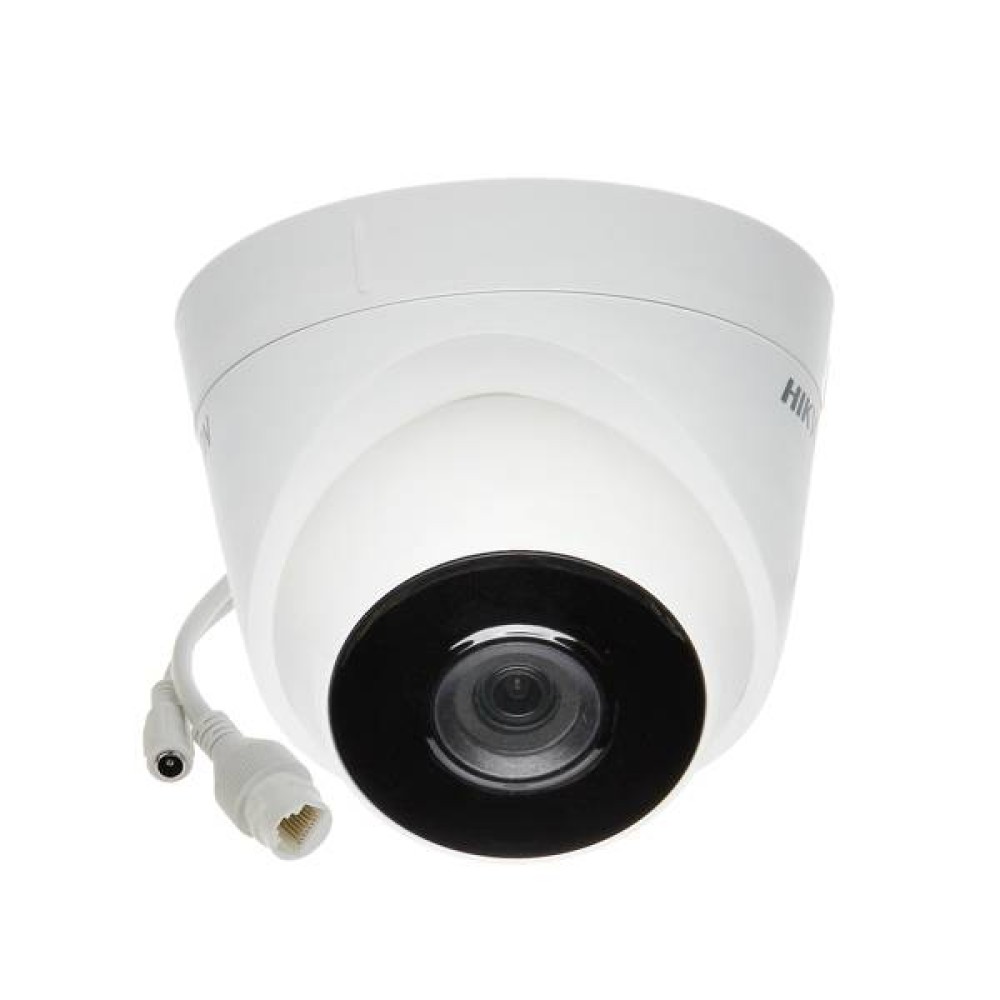

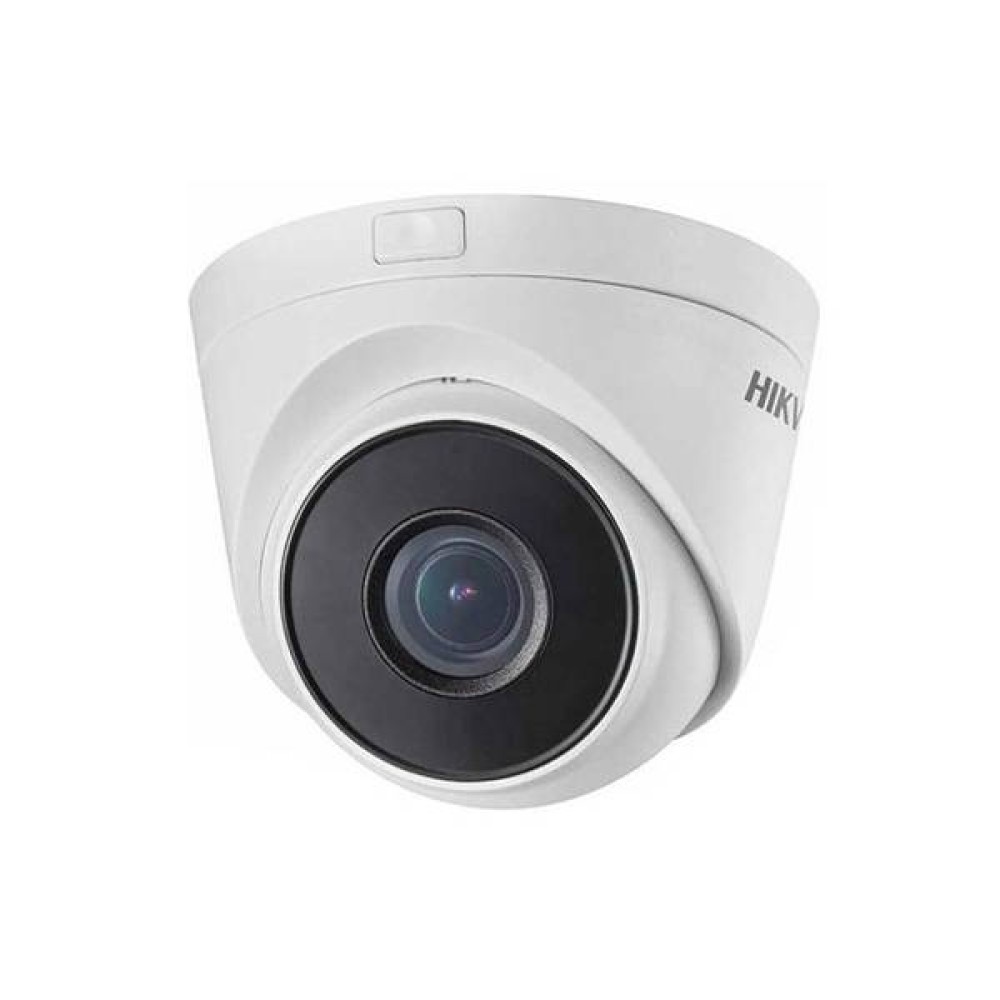

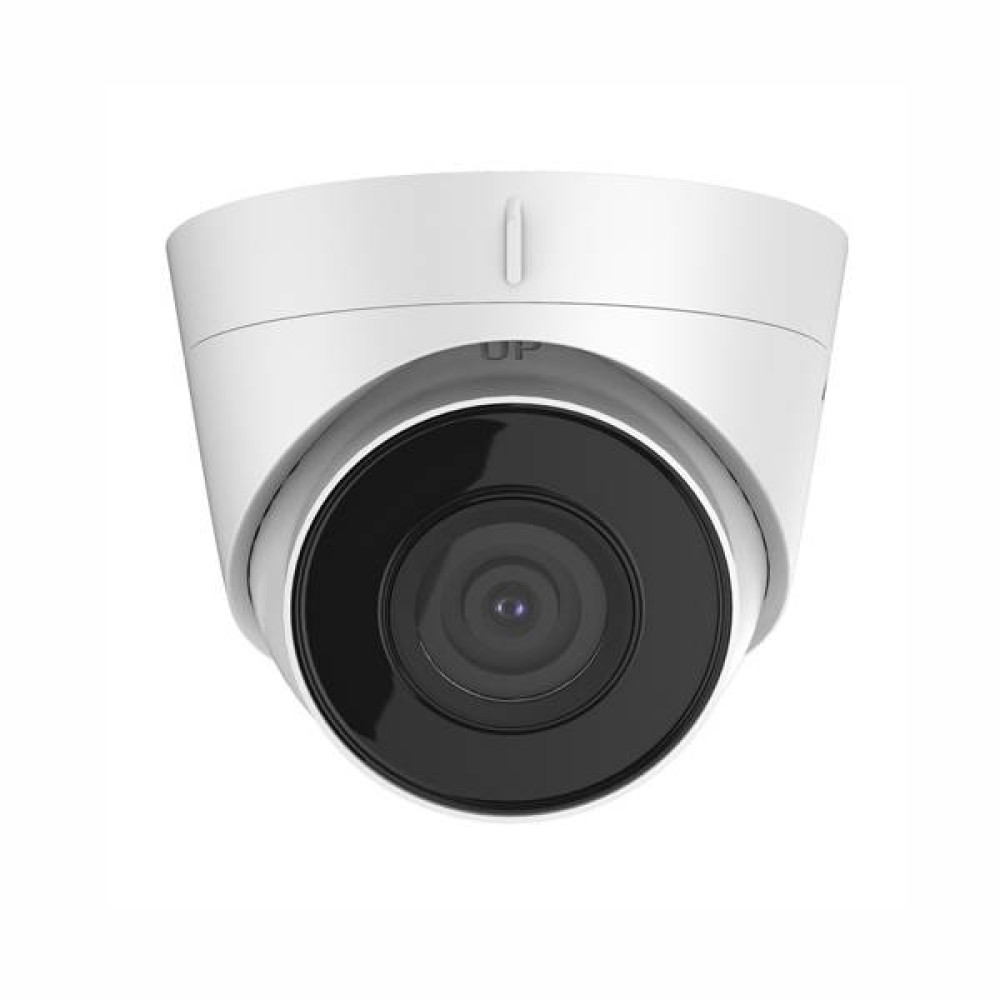

Hikvision DS-2CD1323G0E-I (2.0MP) Dome IP Camera
Hikvision DS-2CD1323G0e-I IP Camera is dedicated for IP CCTV systems. The camera has been equipped with 1/2.8" CMOS sensor with 2 MP resolution and with IR illuminator made in EXIR 2.0 technology, ensuring good image quality without visible lighting within the range up to 30 m. The built-in 2.8 mm lens has 103° viewing angle. The camera can operate outdoors or indoors. Its housing with high ingress protection rating (IP67) protects the electronics against adverse weather conditions. The camera can be powered with a 12 VDC power source or via PoE (802.3af).Hikvision DS-2CD1323G0E-I IP Camera Specifications
Name | HIKVISION DS-2CD1323G0-I |
Code | K17253 |
Standard | IP |
Housing | Ceiling |
Direction adjustment | 3-axis |
Image sensor | 1/2.8" Progressive Scan CMOS |
Sensitivity | 0.028 lux @ (F2.0, AGC ON), 0 lx in IR mode |
Resolution | 1920 x 1080 |
Frame rate | 25 fps at 1920 x 1080 and lower res. |
Focal length/viewing angle | 2.8 mm / 103o |
Video compression | H.265/H.265 /H.264/H.264 /MJPEG |
Number of video streams | 2 |
Bit rate range | 32 kbps - 8 Mbps |
IR illuminator range | 30 m |
Video enhancement functions | 3D-DNR, DWDR, BLC, HLC |
Mechanically switching IR filter | Yes |
Gain | Automatic/Preset |
Alarm events | Motion detection, dynamic analysis, video tampering |
Intelligent image analysis | No |
Corridor mode | No |
ROI | Yes (1) |
ANR function | No |
Recording | NAS (NFS/SMB/CIFS), FTP (screenshots) |
Network interface | RJ-45 10/100 Base-T |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
Standards | ONVIF (S,G profile), PSIA, CGI, ISAPI |
Housing materials | Metal and plastics |
IP rating | IP67 |
Power supply | 12 VDC ± 25%, PoE 802.3af |
Power consumption | Max: DC 12V - 5W; PoE - 7W |
Operating temperature range | -30°C... 60°C |
Dimensions | Φ110 × 93 mm |
Weight | 0.35 kg |
Features
- Resolution: 2 MP (1920 x 1080)
- 2.8 mm / 103° lens
- IR illuminator with range up to 30 m (EXIR 2.0)
- H.265 /H.265/H.264 /H.264/MJPEG video compression
- 3D-DNR, DWDR, BLC video processing functions
- Access via Hik-Connect app
- Region of interest (ROI)
- Mechanically switching IR filter
- IP67 rating
- Power: 12 VDC or PoE (802.3af)
