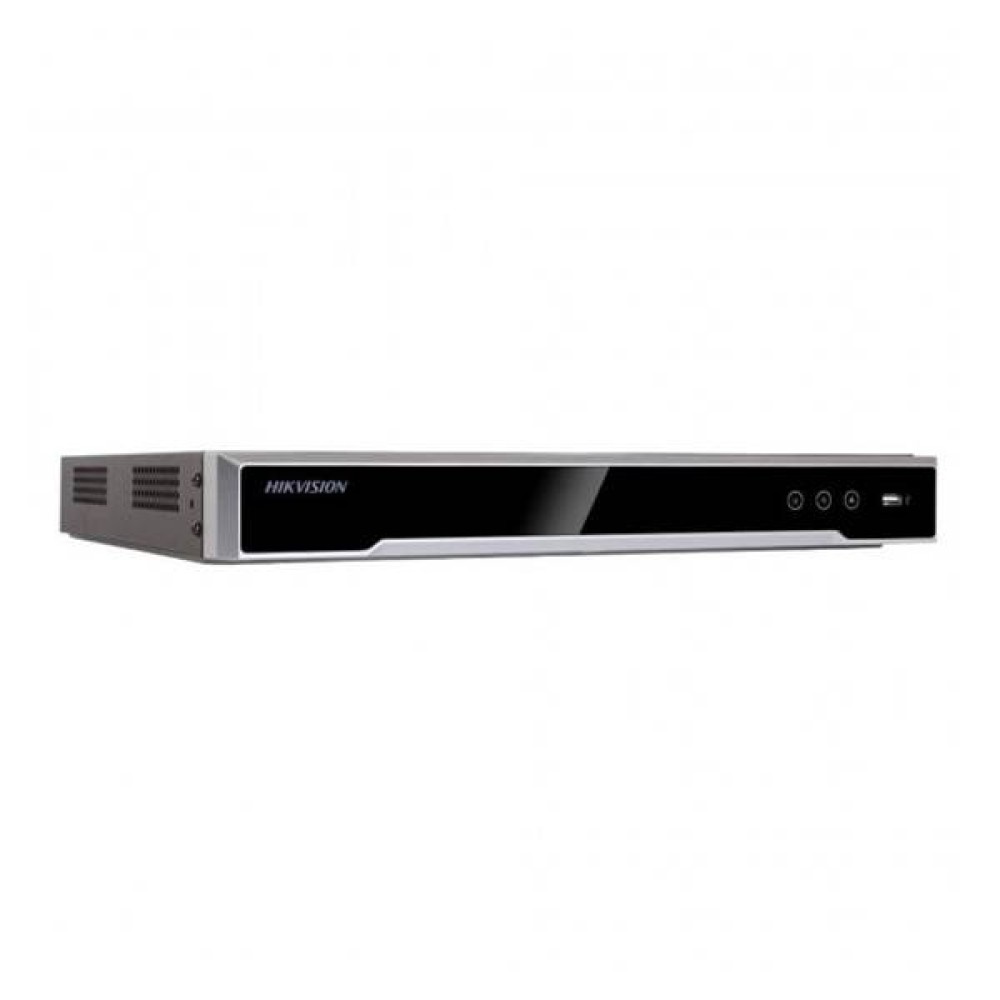

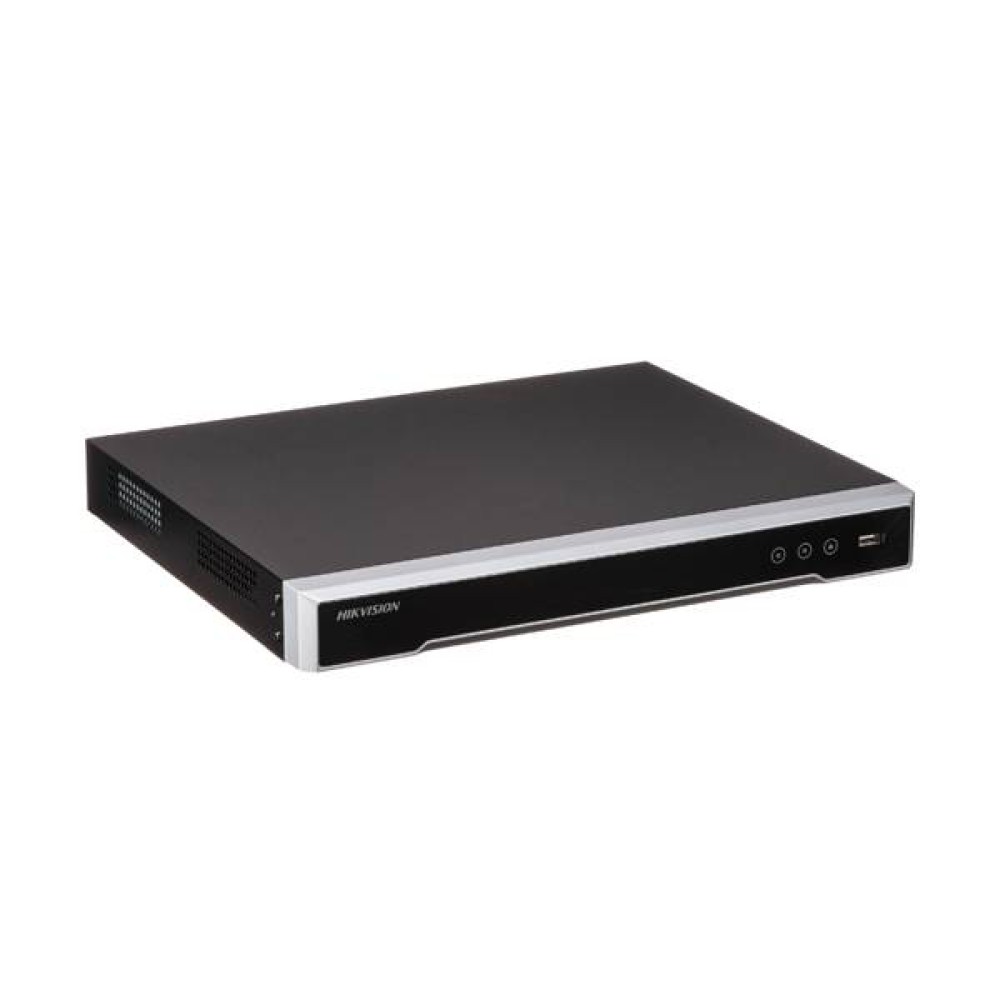

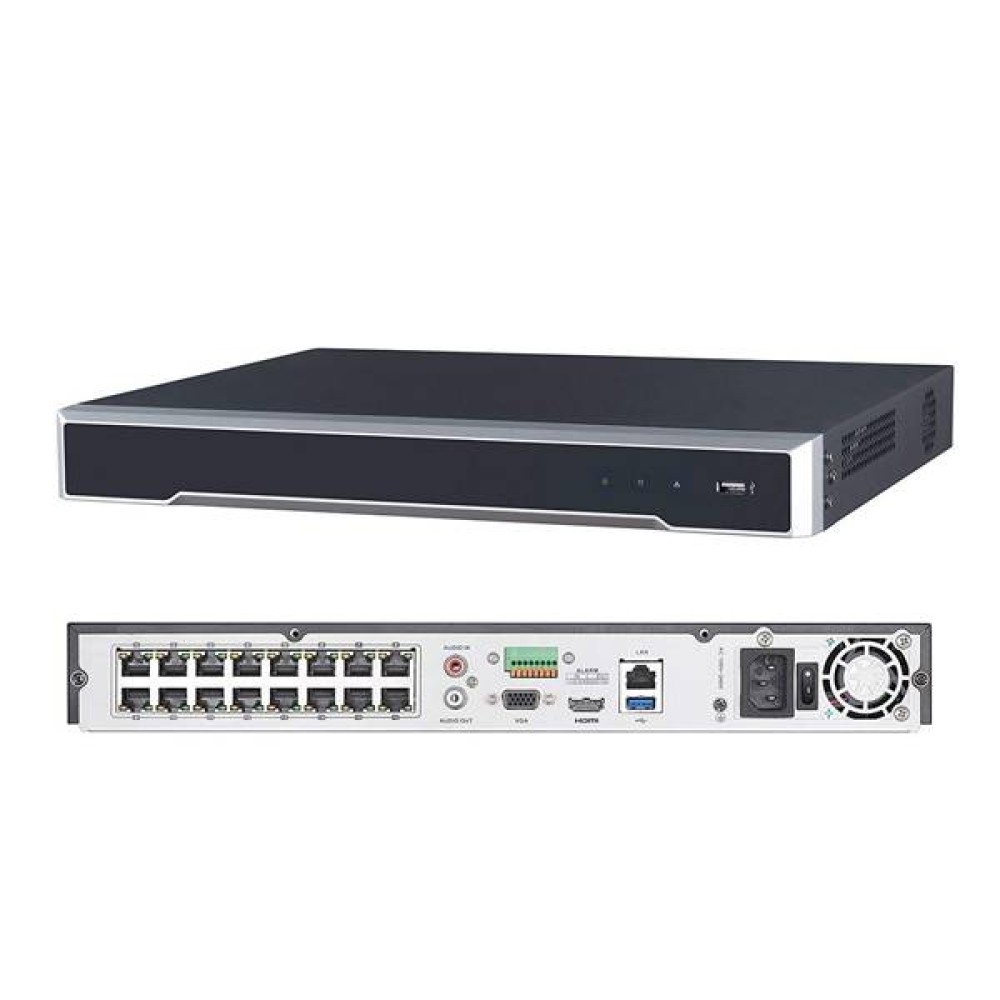

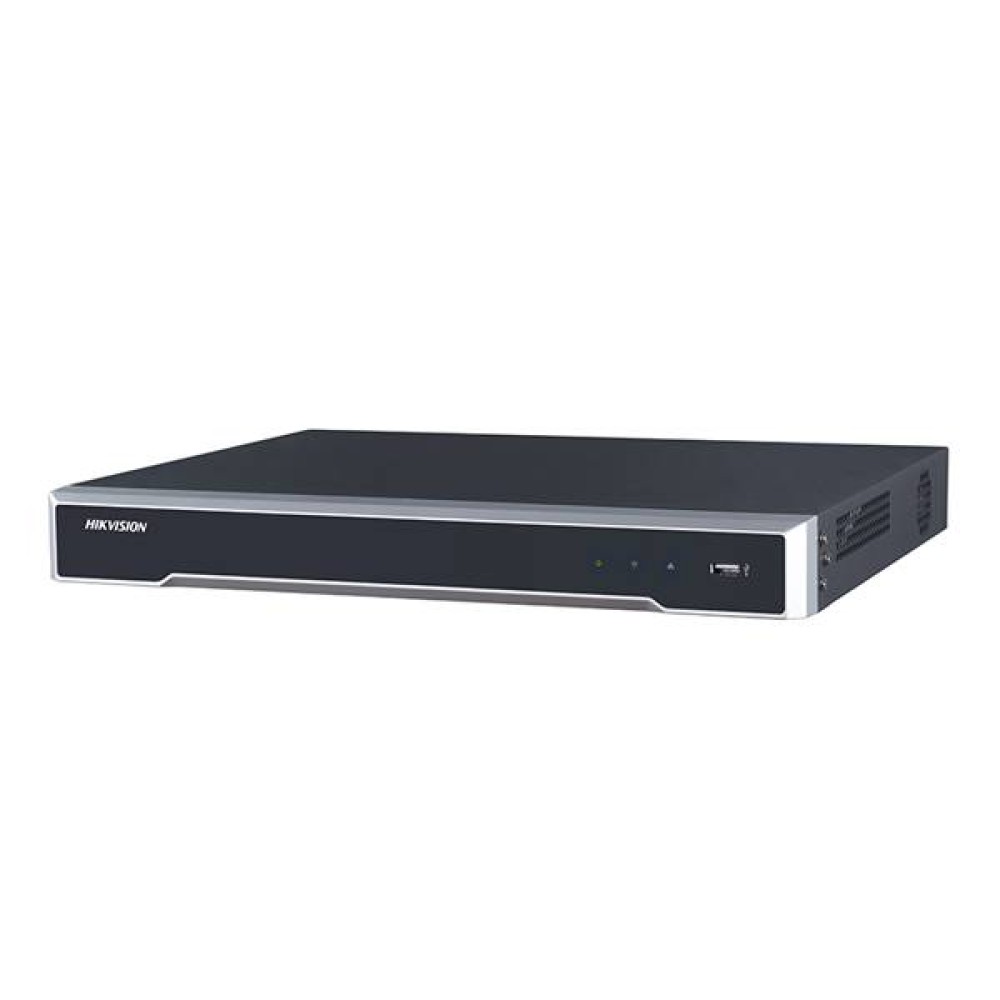

Hikvision DS-7616NI-Q2/16P 16-Channel 4K UHD NVR with 4TB HDD
Record from and manage up to 16 cameras with the
DS-7616NI-Q2/16P 16-Channel 4K UHD NVR (No HDD) from
Hikvision. The recorder can host two HDDs up to 8TB each for a maximum internal capacity of 16TB (available separately). H.265, H.265 , H.264, and H.264 compressions keep file sizes manageable while maintaining the best quality possible. Two-way audio communication is supported.
Hikvision DS-7616NI-Q2 Specifications
Audio/Video Inputs/Outputs
| IP Video Inputs |
16
Up to 8 MP Resolution |
| HDMI Interface |
1 |
| VGA Interface |
1 |
| Recording Resolutions |
8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| HDMI Output Resolution |
30 Hz: 3840 x 2160
60 Hz: 1920 x 1080p, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 |
| VGA Output Resolution |
60 Hz: 1920 x 1080p, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Two-Way Audio |
1 x RCA Input (2.0 V p-p, 1 kOhm)
1 x RCA Output (Linear, 1 kOhm) |
Decoding and Playback
| Decoding Formats |
H.265, H.265 , H.264, H.264 , MPEG-4 |
| Live View / Playback Resolutions |
8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Synchronous Playback |
16-Channel |
| Capability |
1-Channel at 8 MP
4-Channel at 1080p |
Network
| Bandwidth |
Incoming: 160 Mb/s
Outgoing: 80 Mb/s |
| Protocols |
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
HDD
| HDD Capacity |
2 x SATA Ports (8 TB Capacity per Disk) |
| HDD Included |
4 TB Preinstalled |
Interface
| Network Interface |
1 x RJ45 1000M Self-Adaptive Ethernet |
| USB Interface |
2 x USB 2.0 |
| PoE Interface |
16 x RJ45 100M Self-Adaptive Ethernet (≤150 W, IEEE 802.3af/at) |
| Alarm |
1 x Input
1 x Output |
General
| Power Supply |
100 to 240 VAC |
| Power |
≤280 W |
| Power Consumption |
≤15 W (without HDD) |
| Operating Temperature |
14 to 131°F / -10 to 55°C |
| Operating Humidity |
10 to 90% Humidity (Non-Condensing) |
| Chassis |
1 RU |
| Dimensions (W x D x H) |
15.2 x 12.4 x 2" / 385 x 315 x 52 mm |
| Weight |
≤6.6 lb / 3 kg (without HDD) |
Packaging Info
| Package Weight |
9.49 lb |
| Box Dimensions (LxWxH) |
17.2 x 17 x 5.3" |
