Name: ASUS PRIME B650M-A
Brand: Asus
Availability: OutOfStock

Audio
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Battery
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O, ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot, ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED, Aura Sync - Aura RGB header - Addressable Gen 2 headers
Casing Specification
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ), Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Connector & Ports
Display Port (s)	1x DisplayPort
Internal I/O Ports	Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header, Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 3 x 4-pin Chassis Fan headers, Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector, Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports, USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
LAN Port (s)	1 x Realtek 2.5Gb Ethernet
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD B650 Chipset, M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
USB (s)	Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Expansion Slots
PCI	AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD B650 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode)
General
Chipset	AMD B650 Chipset
Keyboard Specifications
Type	DDR5
Memory
Maximum Memory	128GB
Slots	4 DIMMs
Supported Memory	DDR5 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II
Motherboard Basic Information
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Supported CPU	AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Others
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving, AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyAsus Norton Anti-virus software (Free Trial version), WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Technical Specifications
Graphics	1 x DisplayPort 1 x VGA port 1 x HDMI port, Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications., Supports max. 8K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1.
Warranty
Warranty	3 Years

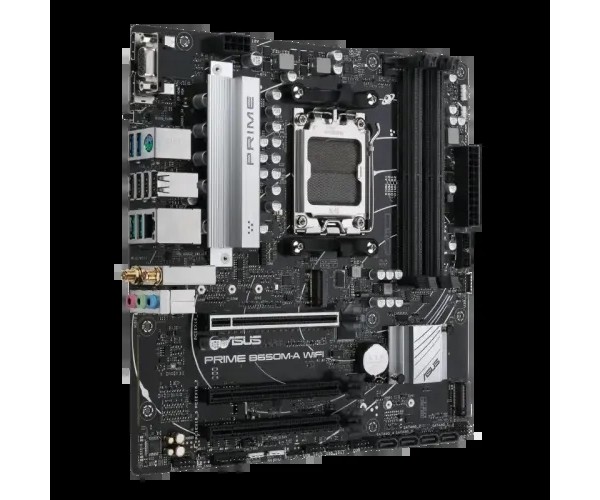

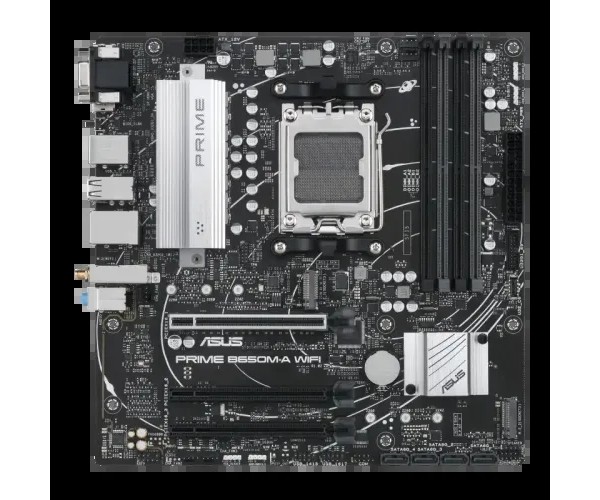

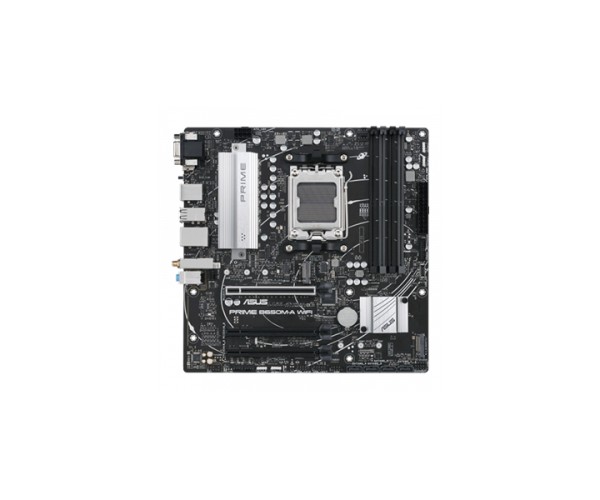

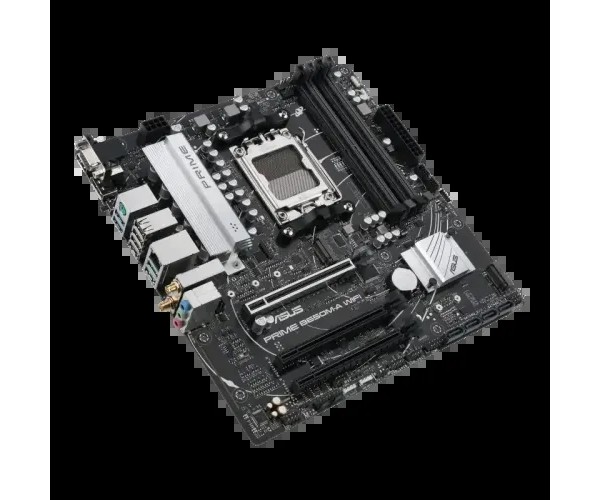

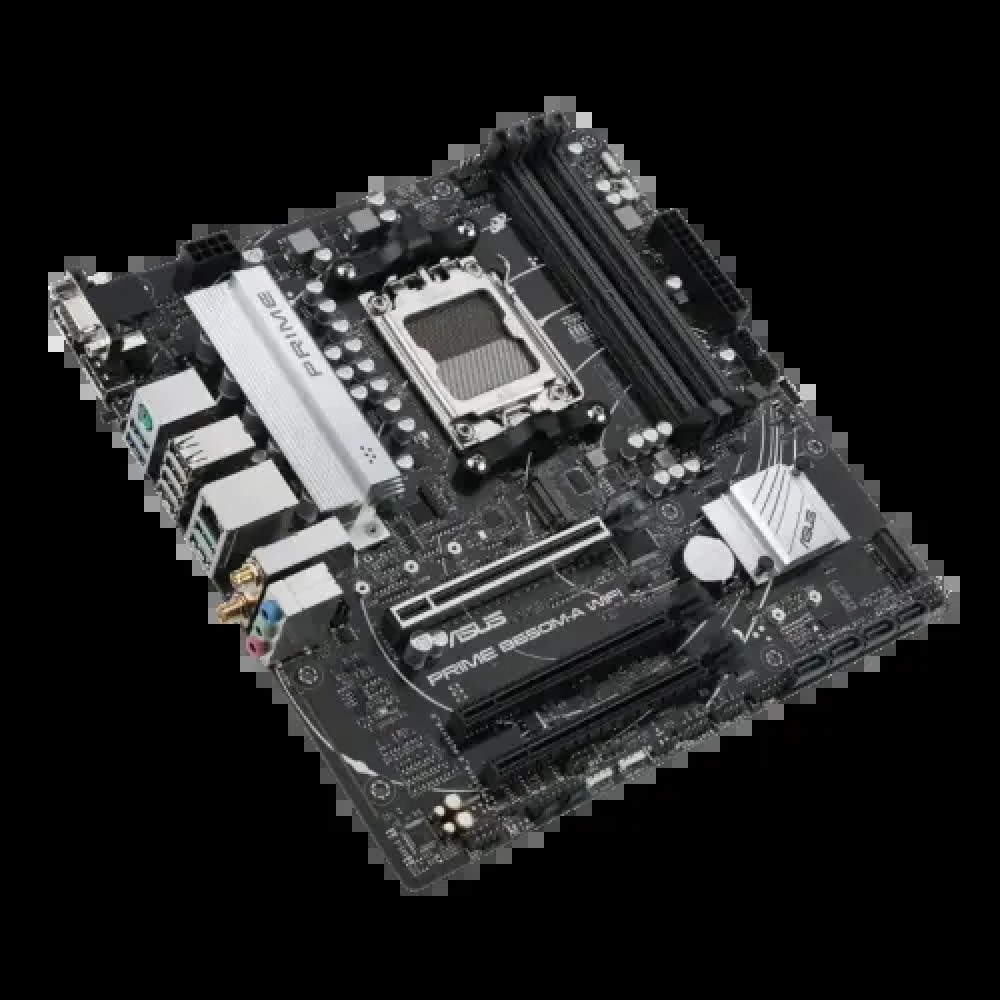

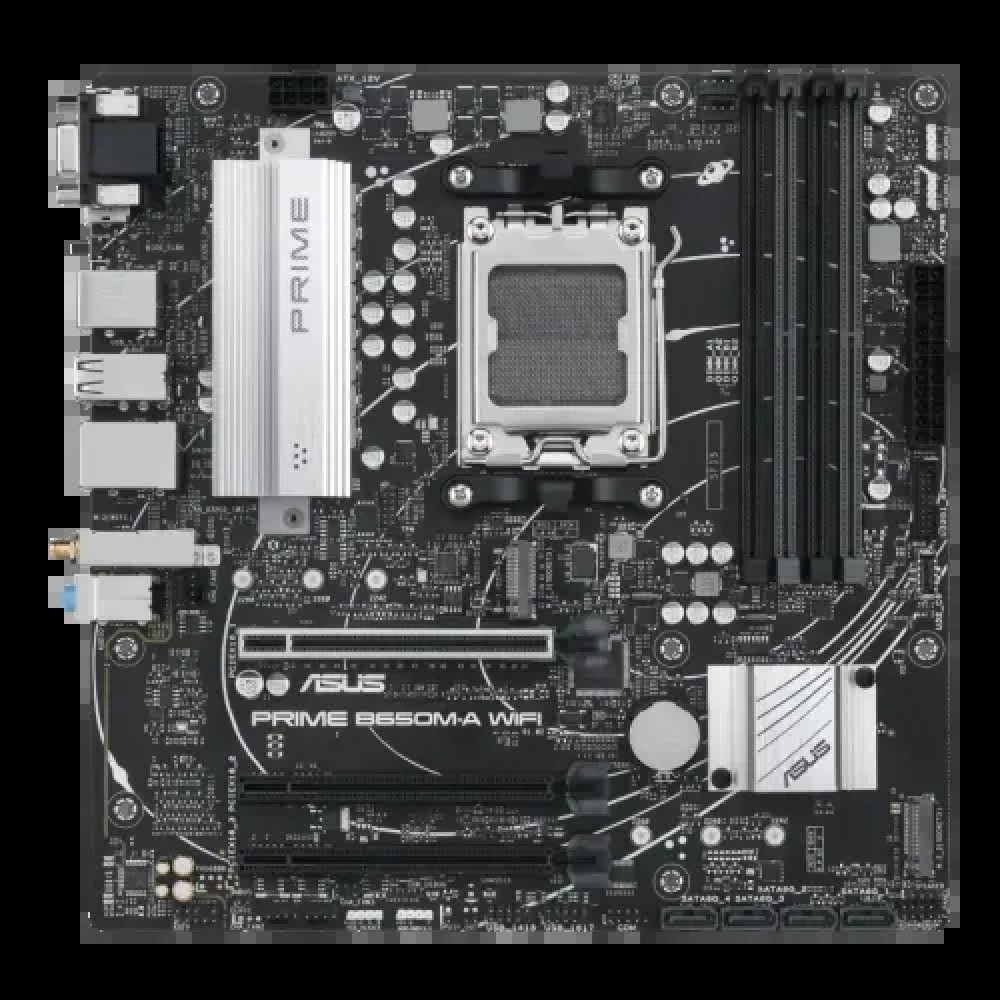

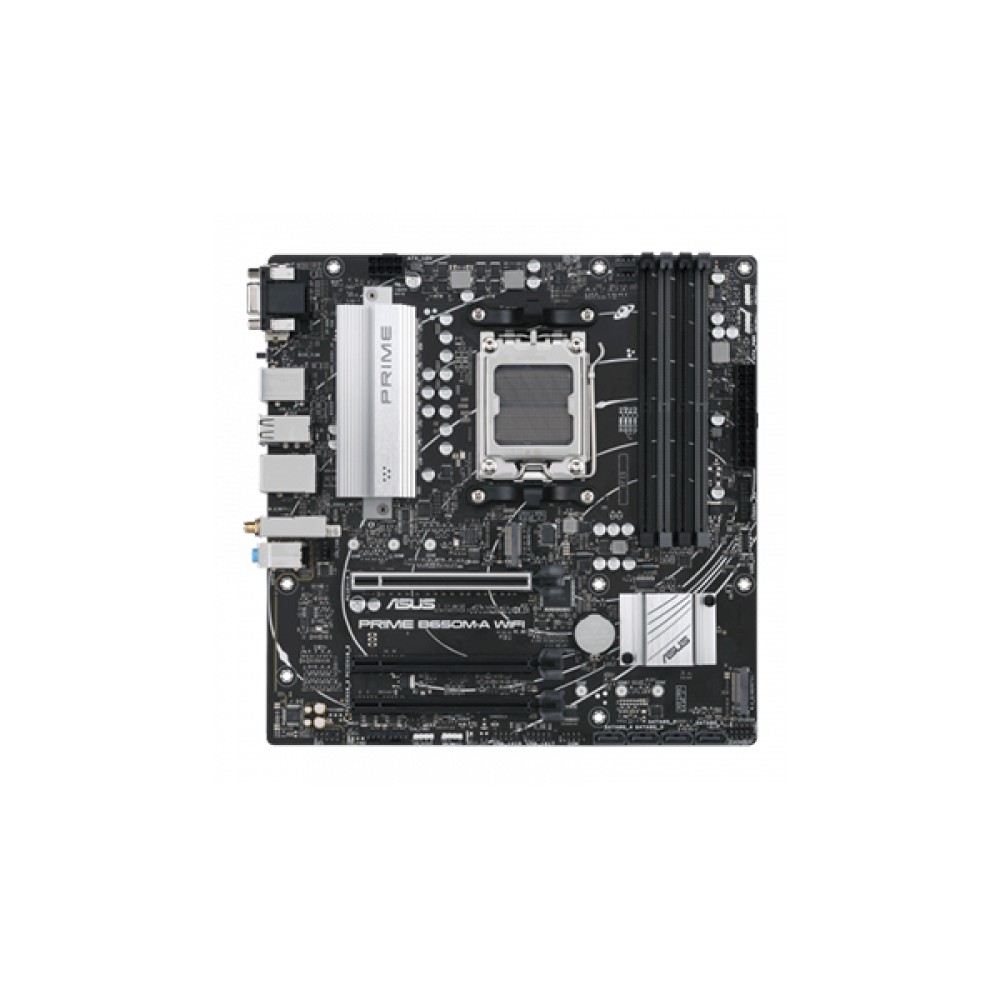

Asus PRIME `B650M-A` WIFI DDR5 AMD AM5 Micro-ATX Motherboard

The Asus PRIME B650M-A WIFI supports AMD Ryzen 7000-series processors for socket AM5. It has been expertly engineered to unleash the full potential of Ryzen 7000 series CPUs. It comes with a robust power design, comprehensive cooling solutions, and intelligent tuning options. Asus PRIME B650M-A WIFI Motherboard is packed with flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. The motherboard is equipped with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. It has a 6-layer PCB Design. Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds. It features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS. PRIME B650M-A WIFI offers a total of two M.2 slots, the first one supports data-transfer speeds of up to 128Gbps via PCIe 5.0. It also offers Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, VGA, HDMI, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C. Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers. The Asus PRIME B650M-A WIFI Motherboard comes with 3 years of warranty.
