Audio Technica AT-ART20

Audio Technica AT-ART20
Audio Technica AT-ART20
Audio Technica AT-ART20
Audio Technica AT-ART20
Audio Technica AT-ART20
Audio Technica AT-ART20
Audio Technica AT-ART20
Audio Technica AT-ART20
Audio Technica AT-ART20

Features

  • Stock: Out Of Stock

Cash Discount Price

348,999৳
Check available payment method
Contact for bulk quantity: 01755532345

Monthly EMI Price

31,785৳
Total 359,783৳ need to pay in 12 month.
Price Click here to view 25 banks EMI Plans
Ex Tax: 348,999৳

Available Options

  • Please confirm availability before completing your purchase by calling us.
  • The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.
  • We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.
  • We cannot guarantee that the information on this page is 100% accurate. Multimedia Kingdom is not responsible for any results obtained from using this information.
Appearance
Dimension 17.3 mm (0.68”)×16.8 mm (0.66”)×26.6 mm (1.05”) (H×W×D)
Weight 9.0g (0.32 oz)
Threaded Hole M2.6 × 2
Accessories Included Non-magnetic screwdriver Brush Washer × 2 Cartridge installation screws (M2.6) (5.0 mm (0.20”) × 2 , 8.0 mm (0.31”) × 2, 10.0 mm (0.39”) × 2, 12.0 mm (0.47”) × 2), Protector
Keyboard Specifications
Type MC
Frequency Response 20 to 50,000 Hz
Technical Specifications
Channel Separation 30 dB (1 kHz)
Vertical Tracking Angle 20°
Vertical Tracking Force 1.6 to 2.0 g (1.8 g standard)
Stylus Construction Nude
Recommended Load Impedance ≥ 100 ohms (when head amplifier connected)
Coil Impedance 12 ohms (1 kHz)
DC Resistance 12 ohms
Coil Inductance 25 μH (1 kHz)
Cantilever 0.28 mm (0.011”) diameter solid boron
Static Compliance 23 × 10-6 cm/dyne
Dynamic Compliance 13 × 10-6 cm/dyne (100 Hz)
Stylus Curvature Radius 1.5 × 0.28 mil
Warranty
Stylus Shape Special Line Contact
Output Voltage 0.55 mV (1 kHz, 5 cm/sec.)

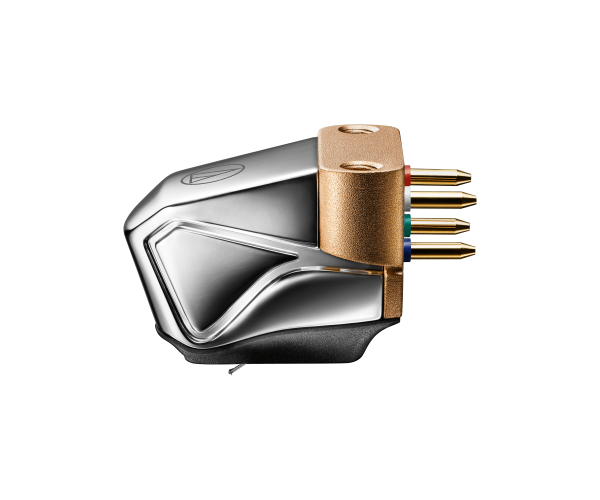

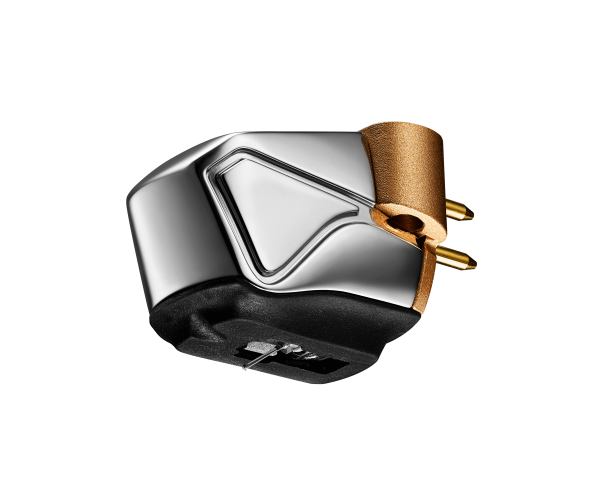

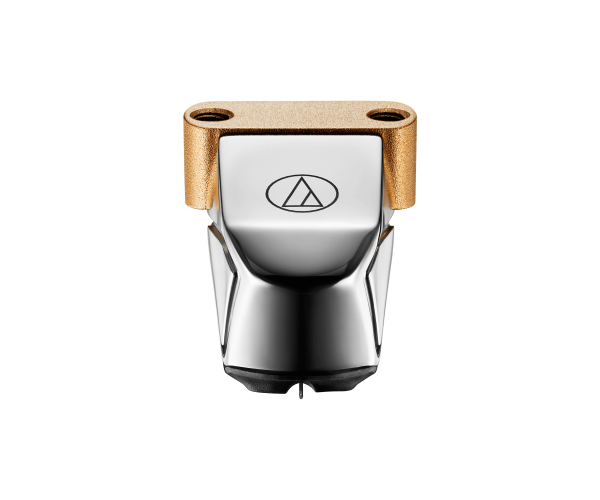

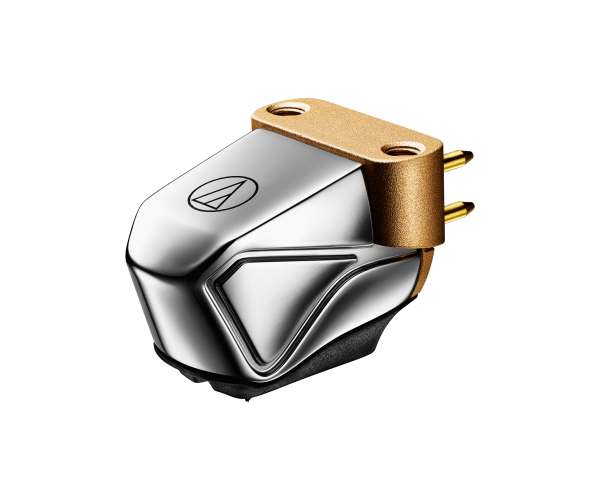

Audio Technica AT-ART20 Dual Moving Coil Stereo Cartridge

Audio-Technica is pleased to introduce the AT-ART20, the latest cartridge in our ART Series that will allow you to experience a new world of sound. As with previous magnetic core cartridges in our high-end lineup, we had two main goals in developing the AT-ART20: provide superlative analog sound reproduction and optimize the performance and benefits of a magnetic core cartridge. The AT-ART20 has been designated an Audio-Technica Excellence Product, a recognition that identifies products that meet our highest standards of high-fidelity performance. Based on cartridge technologies and know-how cultivated over our long history, and employing the best materials and advanced processing techniques, we created a magnetic core moving coil cartridge that’s optimally structured to reproduce sound with the full expressiveness of the original recording. The high-frequency response of the AT-ART20 is extended and detailed, while the low-frequency sound, which cartridges tend to bury, is reproduced with full clarity and force. Vocals come through with all the variety and expressiveness of the human voice, even at low volumes, and, indeed, the full character of the sound source blossoms anew for the listener, with extended sound depth and rich spatial imaging to convey the original environment of the performance.

Unprecedented, Emotional Sound Quality

All sonic details carefully and accurately reproduced Unparalleled expressive power to depict every tone and space As a top-of-the-line MC cartridge, the AT-ART20 transmits an astonishing amount of information with high resolution, while capturing musical expression. The sound field stage is realistic, regardless of music genre, fully delivering the expressiveness of a performer's voice and the instrument’s original dynamic qualities. High-quality terminal pins with thick gold plating The thickness of the gold-plated portion has been increased to approximately 30 times than that of conventional products to reduce contact resistance. Resonance suppression by combining various materials The cartridge construction consists of an aluminum base, titanium housing, and elastomer undercover. The unique combination of these materials minimizes resonance.

Design That Expresses a Sense of Life and Dynamism

Utilizing Fukui Prefecture’s world-class technology in cartridges Precision-machined titanium with polished finish By utilizing the advanced cutting and polishing technologies cultivated in the eyeglass industry of Sabae City, Fukui Prefecture, which has a history stretching back more than 100 years, Audio-Technica has realized an organic design with a beautifully curved surface that has never been seen in a cartridge before. The combination of this design and advanced cutting technology has also made it possible to reduce the thickness of the titanium, resulting in a significant weight reduction.

Magnetic Core MC with a Superb Sound

Cartridge finished in Japan Newly designed magnetic circuit improves the cartridge’s efficiency Based on the magnetic circuit of the AT-ART9XI, the front yoke is 0.6 mm (0.024″) thicker to improve magnetic flux density. By increasing the efficiency, more realistic sound quality is achieved. Output voltage is improved by more than 15% without increasing the number of coil turns which can increase mass and impedance.

Lighter and More Responsive with a New Stylus/Cantilever Assembly

Strengthened cantilever improves high-frequency characteristics Tip reinforcement plate made of titanium reduces stylus tip mass As in the flagship model of the ART Series, the AT-ART1000, titanium is used for the tip reinforcement plate that holds the diamond tip in place. This reduces its mass and improves the high-frequency characteristics. Special line contact stylus and 0.28 mm (0.011″) diameter solid boron cantilever A nude special line contact stylus is used to provide premium high-frequency response with minimal inner-groove distortion for consistent reproduction across the entire record. The special line contact shape also causes very little abrasion, resulting in long stylus life and low record wear. A rectangular shank mounts the stylus to the cantilever, ensuring precise alignment with the record groove and reducing mass to improve transient and frequency response (20 – 50,000 Hz). In addition, a stepped pipe structure is used, connecting the cantilever and armature increasing rigidity, which improves the strength of the cantilever and suppresses unwanted vibrations. Please Note: AT-ART20’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service your moving coil cartridge.

Features

  • Provides superlative analog sound reproduction
  • Reproduces sound with the full expressiveness of the original recording
  • Newly designed magnetic circuit improves the cartridge’s efficiency
  • Output voltage is improved by more than 15% without increasing the number of coil turns which can increase mass and impedance.
  • High-quality terminal pins with thick gold plating are approximately 30 times than that of conventional products to reduce contact resistance
  • Constructed of titanium, and aluminum with an elastomer undercover to reduce undesirable resonance
  • Special line contact stylus and solid boron cantilever with a 0.28 mm diameter provide premium high-frequency response with minimal inner-groove distortion for consistent reproduction
  • Utilizes the advanced cutting and polishing technologies cultivated in the eyeglass industry of Sabae City, Fukui Prefecture, with history stretching back more than 100 years Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm
Please Note: AT-ART20’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service your moving coil cartridge.
