Audio Technica AT-ART9XA

Audio Technica AT-ART9XA
Audio Technica AT-ART9XA
Audio Technica AT-ART9XA
Audio Technica AT-ART9XA
Audio Technica AT-ART9XA
Audio Technica AT-ART9XA
Audio Technica AT-ART9XA
Audio Technica AT-ART9XA
Audio Technica AT-ART9XA

Features

  • Stock: Out Of Stock
Audio Technica Audio Technica
Based on 0 reviews. - Write a review

Cash Discount Price

179,999৳
Check available payment method
Contact for bulk quantity: 01755532345

Monthly EMI Price

16,393৳
Total 185,561৳ need to pay in 12 month.
Price Click here to view 25 banks EMI Plans
Ex Tax: 179,999৳

Available Options

Add to Cart
Buy Now Buy Now
Add to Wish List Compare this Product
Payment Details
Contacts
Whatsapp

  • Please confirm availability before completing your purchase by calling us.
  • The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.
  • We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.
  • We cannot guarantee that the information on this page is 100% accurate. Multimedia Kingdom is not responsible for any results obtained from using this information.
Keyboard Specifications
Frequency Response 20-50,000 Hz
Technical Specifications
Channel Separation 30 (dB at 1 kHz)
Vertical Tracking Angle 20°
Vertical Tracking Force 1.6-2.0 g (1.8 g standard)
Stylus Construction Nude
Recommended Load Impedance Min. 100 ohms (when head amplifier connected)
Coil Impedance 12 ohms (1 kHz)
DC Resistance 12 ohms
Coil Inductance 2.5 µH (1 kHz)
Output Channel Balance 0.5 dB (1 kHz)
Cantilever 0.28 mm diameter solid boron
Static Compliance 20 x 10-6 cm/dyne
Dynamic Compliance 10 x 10-6 cm/dyne (100 Hz)
Mounting Half-inch
Appearance
Product Model AT-ART9XA
Dimension 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D
Weight 8.5g (0.30 oz)
Threaded Hole M2.6 x 2
Accessories Included Non-magnetic screwdriver 2 washers cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2) protector brush
Notes Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
Warranty
Stylus Shape Shibata
Output Voltage 0.2 mV (1 kHz, 5 cm/sec.)

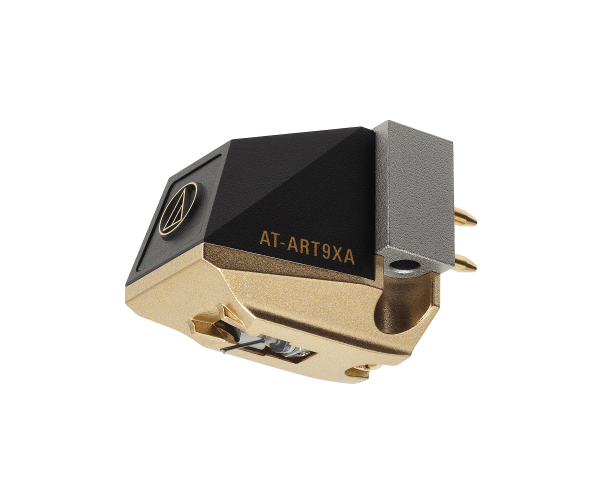

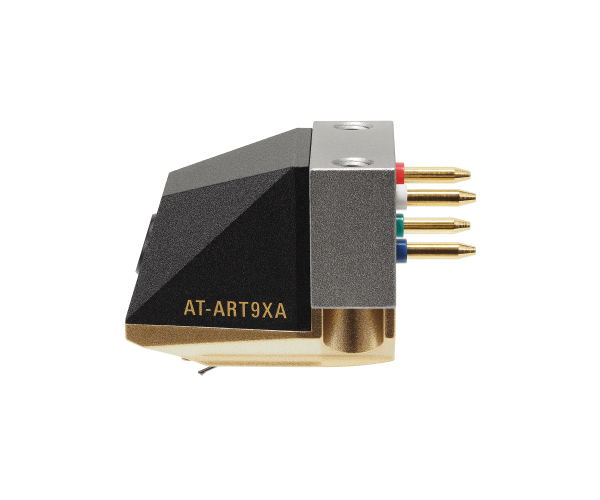

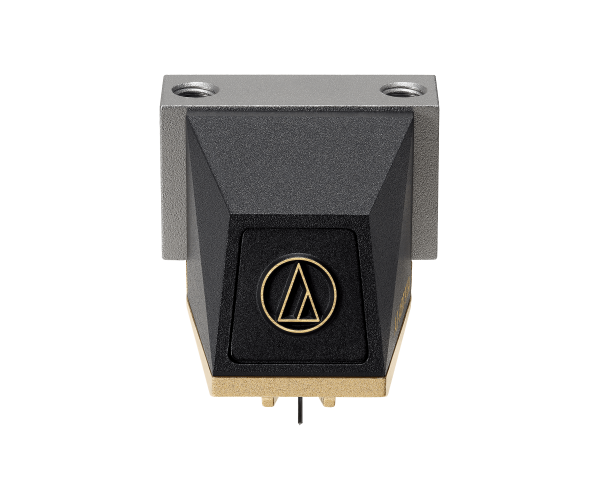

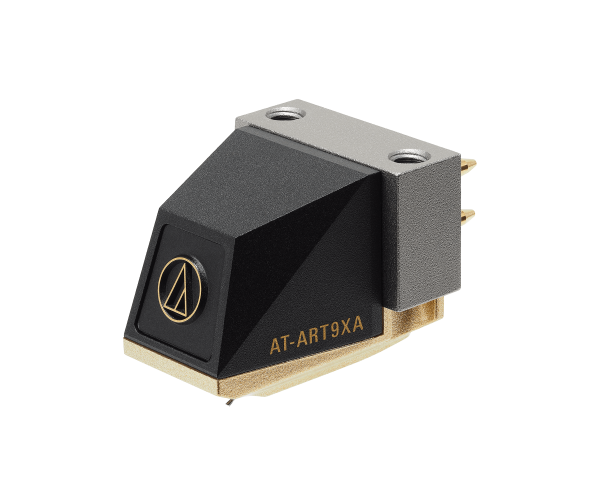

Audio Technica AT-ART9XA Dual Moving Coil Cartridge (Non-Magnetic Core)

An update of the AT-ART7, the AT-ART9XA non-magnetic core MC cartridge features a Shibata stylus on a 0.28 mm diameter solid boron cantilever. The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that we give only to our flagship phono cartridges. Compared with the magnetic core used in most MC cartridges, non-magnetic core cartridges are free from magnetic distortion, allowing for natural timbre and a precise sound field. The AT-ART9XA has been designated an Audio-Technica Excellence Product, a recognition that identifies products that meet our highest standards of high-fidelity performance. Although conventional non-magnetic cores struggle with output voltage, the AT-ART9XA features a newly designed coil armature with an improved output voltage of 0.2 mV (1 kHz, 5 cm/sec). The dual moving coils (fashioned from high-performance PCOCC wire) are aligned in an inverted V shape to provide high separation and wide response. Threaded cartridge mounting holes make installation to a headshell or integrated tonearm incredibly easy. Please Note: AT-ART9XA’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service your moving coil cartridge.

Features

  • Non-magnetic core moving coil cartridge offers superior spatial representation
  • Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion
  • Shibata stylus ensures accurate high and mid-low range reproduction, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics
  • Neodymium magnet and permendur yoke significantly increase magnetic energy
  • Redesigned coil armature provides an output voltage of 0.2 mV (1 kHz, 5 cm/sec)
  • PCOCC coils ensure high-fidelity transmission
  • Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability
  • Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance
  • Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm Please Note: AT-ART9XA’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service your moving coil cartridge.
