Audio Technica AT-ART9XI
- Pre-order
- Brand: Audio Technica
- Model : AT-ART9XI
- PID : 29125
Ex Tax: 179,999৳
Features
- Frequency Response: 20 to 50,000 Hz
- Motor Type: DC Moto
- Nude Round Shank construction
- Material: Aluminum
- Please confirm availability before completing your purchase by calling us.
- The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.
- We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.
- We cannot guarantee that the information on this page is 100% accurate. Multimedia Kingdom is not responsible for any results obtained from using this information.
Keyboard Specifications | |
Frequency Response | 20-50,000 Hz |
Technical Specifications | |
Channel Separation | 30 (dB at 1 kHz) |
Vertical Tracking Angle | 20° |
Vertical Tracking Force | 1.6-2.0 g (1.8 g standard) |
Stylus Construction | Nude |
Recommended Load Impedance | Min. 100 ohms (when head amplifier connected) |
Coil Impedance | 12 ohms (1 kHz) |
DC Resistance | 12 ohms |
Coil Inductance | 25 µH (1 kHz) |
Output Channel Balance | 0.5 dB (1 kHz) |
Cantilever | 0.28 mm diameter solid boron |
Static Compliance | 25 x 10-6 cm/dyne |
Dynamic Compliance | 15 x 10-6 cm/dyne (100 Hz) |
Mounting | Half-inch |
Appearance | |
Product Model | AT-ART9XI |
Dimension | 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D |
Weight | 8.5g (0.30 oz) |
Threaded Hole | M2.6 x 2 |
Accessories Included | Non-magnetic screwdriver 2 washers cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2) protector brush |
Notes | Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable. |
Warranty | |
Stylus Shape | Special line contact |
Warranty | No Warranty |
Output Voltage | 0.5 mV (1 kHz, 5 cm/sec.) |

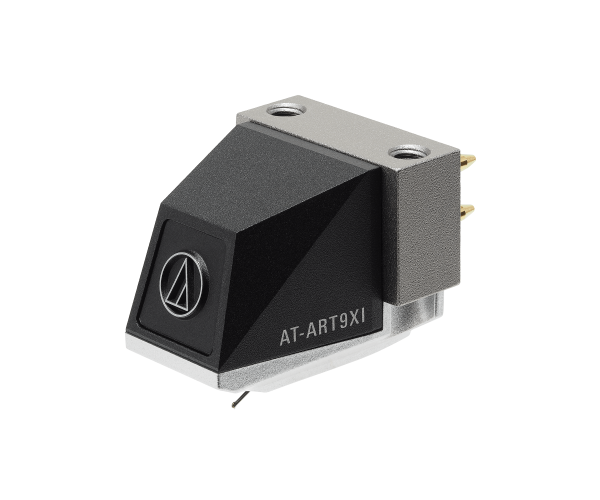

Audio Technica AT-ART9XI Dual Moving Coil Cartridge
Featuring a special line contact stylus on a 0.28 mm diameter solid boron cantilever, the AT-ART9XI replaces the AT-ART9 as Audio-Technica’s flagship magnetic core MC cartridge. The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that we give only to our flagship phono cartridges. The specially designed magnetic circuit boasts an output voltage of 0.5 mV (1 kHz, 5 cm/sec), making the cartridge easy to use and capable of reproducing even the most delicate expressions, while also ensuring dynamic playback. The AT-ART9XI has been designated an Audio-Technica Excellence Product, a recognition that identifies products that meet our highest standards of high-fidelity performance. The dual moving coils (fashioned from high-performance PCOCC wire) are aligned in an inverted V shape to provide high separation and wide response for clear sound localization and minimal distortion. Threaded cartridge mounting holes make installation to a headshell or integrated tonearm incredibly easy. Please Note: AT-ART9XI’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service your moving coil cartridge.Features
- Audio-Technica’s flagship magnetic core moving coil cartridge
- Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion
- Special line contact stylus ensures faithful reproduction of the music signal, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics
- Neodymium magnet and permendur yoke significantly increase magnetic energy
- Specially designed magnetic circuit provides an output voltage of 0.5 mV (1 kHz, 5 cm/sec)
- PCOCC coils ensure high-fidelity transmission
- Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability
- Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance
- Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm Please Note: AT-ART9XI’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service your moving coil cartridge.
