Audio Technica AT-PEQ30

Audio Technica AT-PEQ30
Audio Technica AT-PEQ30
Audio Technica AT-PEQ30
Audio Technica AT-PEQ30
Audio Technica AT-PEQ30
Audio Technica AT-PEQ30
N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.
Audio Technica AT-PEQ30
Based on 0 reviews. - Write a review

Discount Price

23,899৳
+ Available payment method

Monthly EMI Price*

2,177৳
Ex Tax: 23,899৳
Add to Cart
Buy Now Buy Now
Add to Wish List Compare this Product

Features

  • Connectivity Technology: AC Cable
  • Motor Type: DC Motor
  • Material: Aluminum, Metal
  • Compatible Devices: Speaker
Pay: Details
Contacts
Whatsapp

  • Please confirm availability before completing your purchase by calling us.
  • The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.
  • We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.
  • We cannot guarantee that the information on this page is 100% accurate. Multimedia Kingdom is not responsible for any results obtained from using this information.
Technical Specifications
Signal-to-Noise Ratio MM type: 100 dB MC type: 74 dB
Power Consumption 2.5 W
Power Supply DC 15 V, 1.2 A
Appearance
Product Model AT-PEQ30 Phono Equalizer
Product Code AT-PEQ30
Dimension 47 mm (1.85") H x 197.5 mm (7.78") W x 125.5 mm (4.94") D (excluding protrusions)
Input Impedance MM type: 47 kiloohms MC type: 120 ohms
Input Sensitivity MM type: 4.5 mV MC type: 0.28 mV
Rated output MM type: 250 mV MC type: 250 mV
Gain MM type: 35 dB MC type: 59 dB
RIAA Deviation (20 to 20,000 Hz) MM type: ±0.5 dB (20 to 20,000 Hz) MC type: ±0.5 dB
Weight 890 g (31.4 oz)
Accessories Included AC adapter
Warranty
Warranty No Warranty

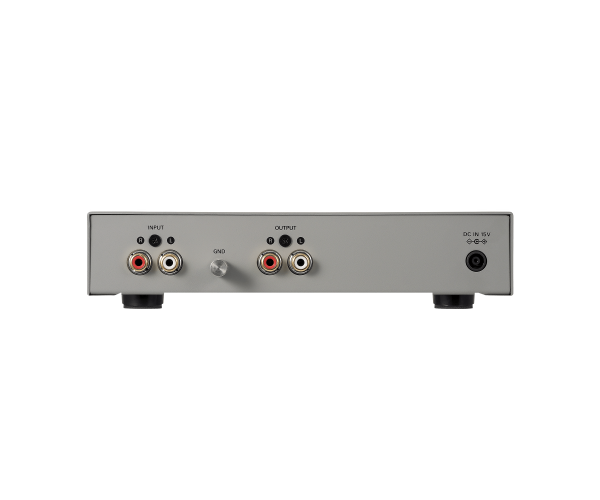

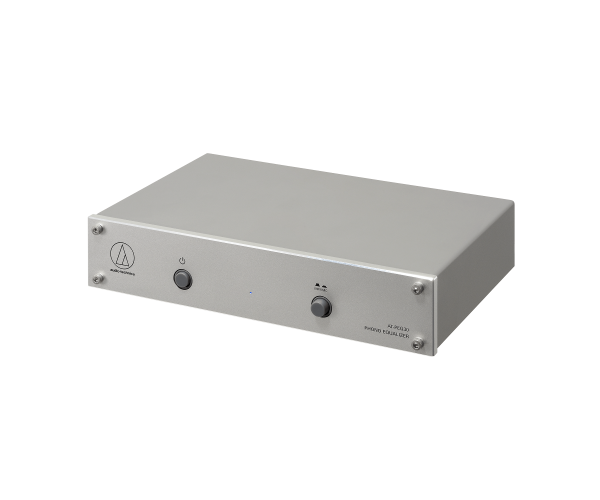

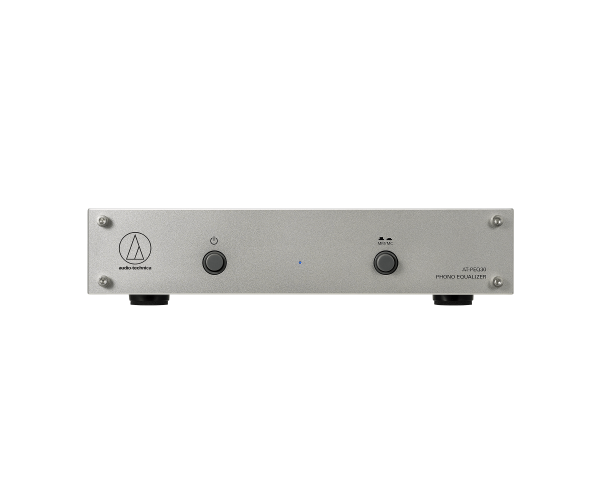

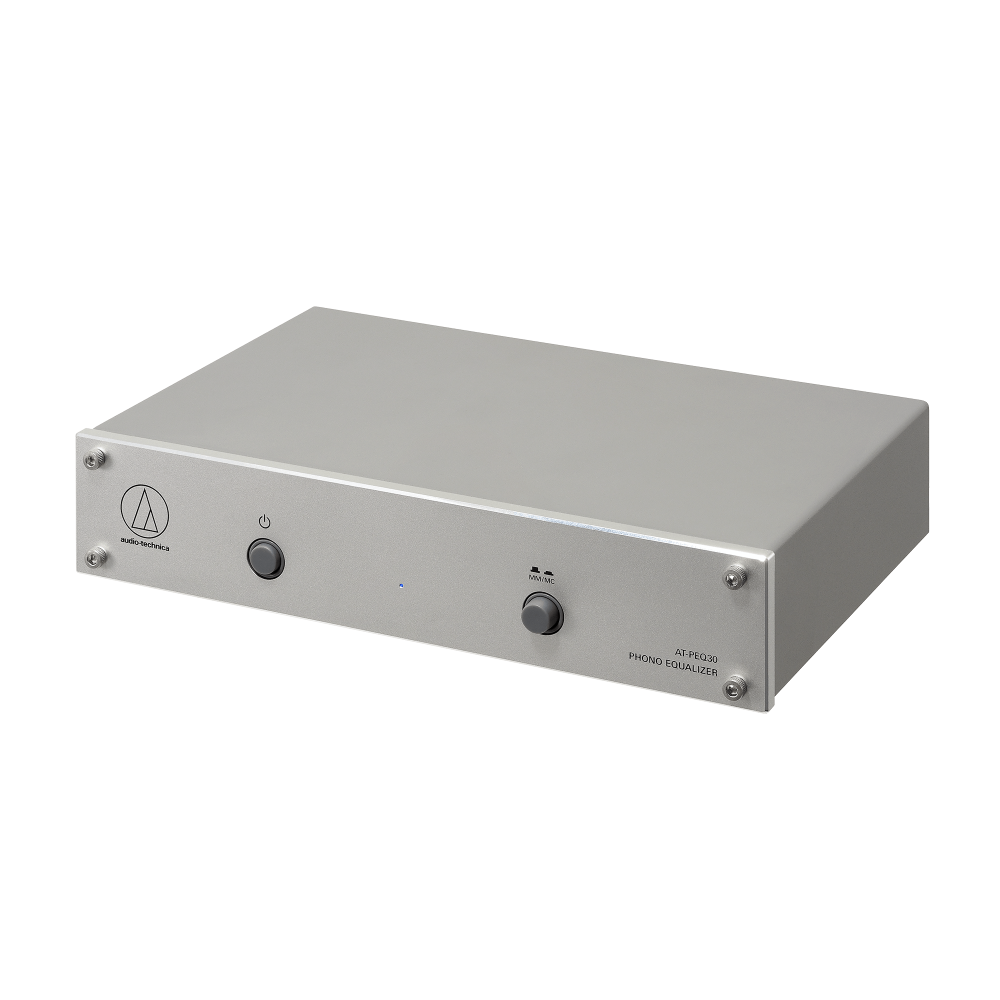

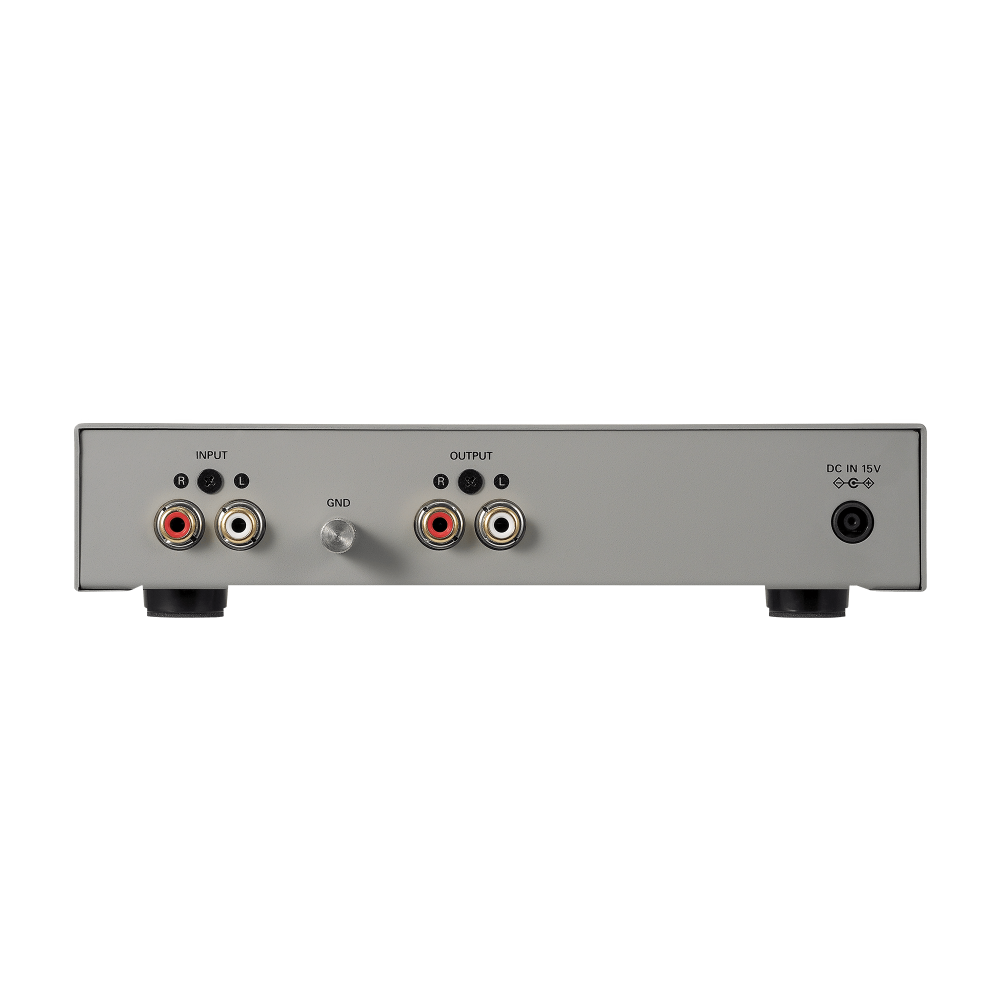

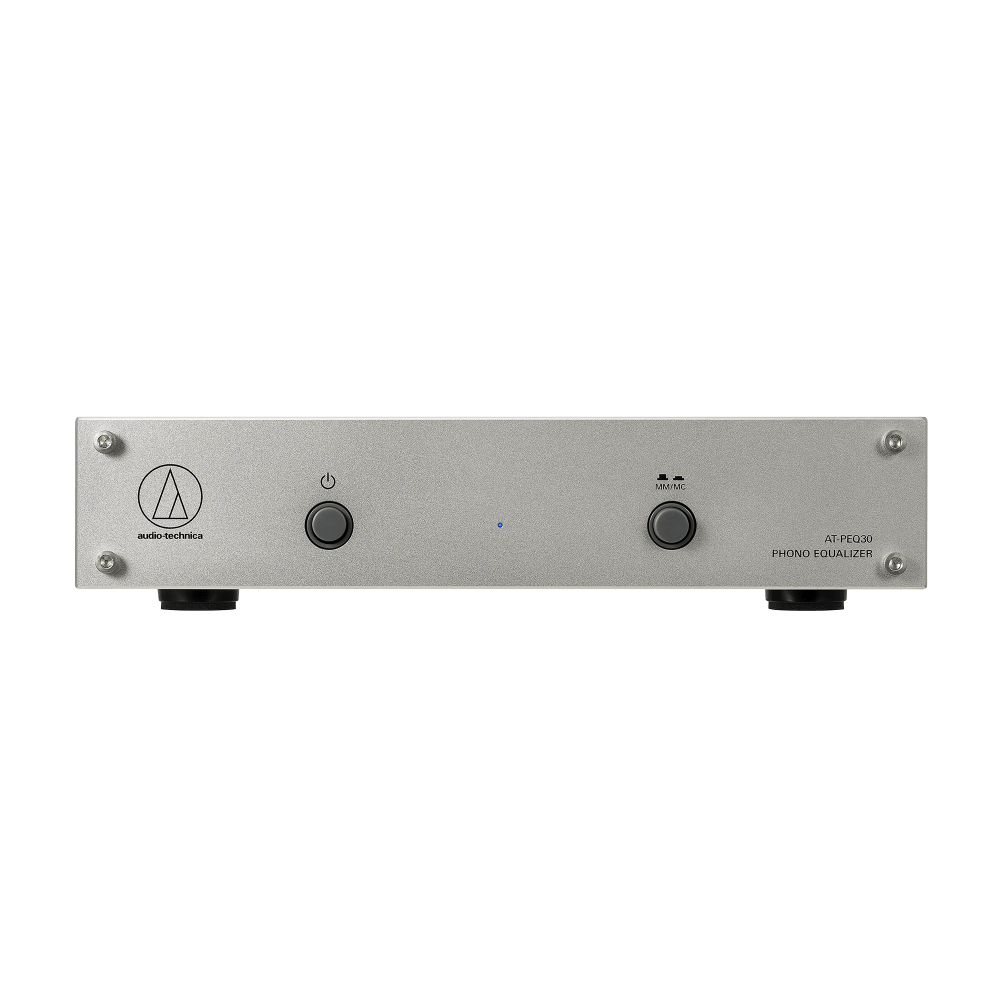

Audio Technica AT-PEQ30 Phono Equalizer

The AT-PEQ30 phono equalizer is designed specifically to add a phono stage to a turntable setup or to upgrade a turntable’s built-in phono preamplifier.
It is compatible with turntables with MM (moving magnet) and MC (moving coil) cartridges. The AT-PEQ30 benefits from Audio-Technica’s years of analog audio expertise and uses the finest quality parts in a layout that is optimized for low noise and minimum distortion.

Features

  • Selectable MM and MC input with fixed gain and impedance allows for compatibility with a wide range of moving magnet and moving coil cartridges
  • High-quality FET inputs ensure a low-noise signal when incorporated with a negative feedback-type phono equalizer circuit
  • Precision components provide an excellent RIAA response for best-in-class performance
  • The all metal construction enclosure provides superior isolation from radio and electronic noise interference
  • The machined aluminum front panel and gold-plated input/output RCA connectors are examples of the high-grade material used throughout
