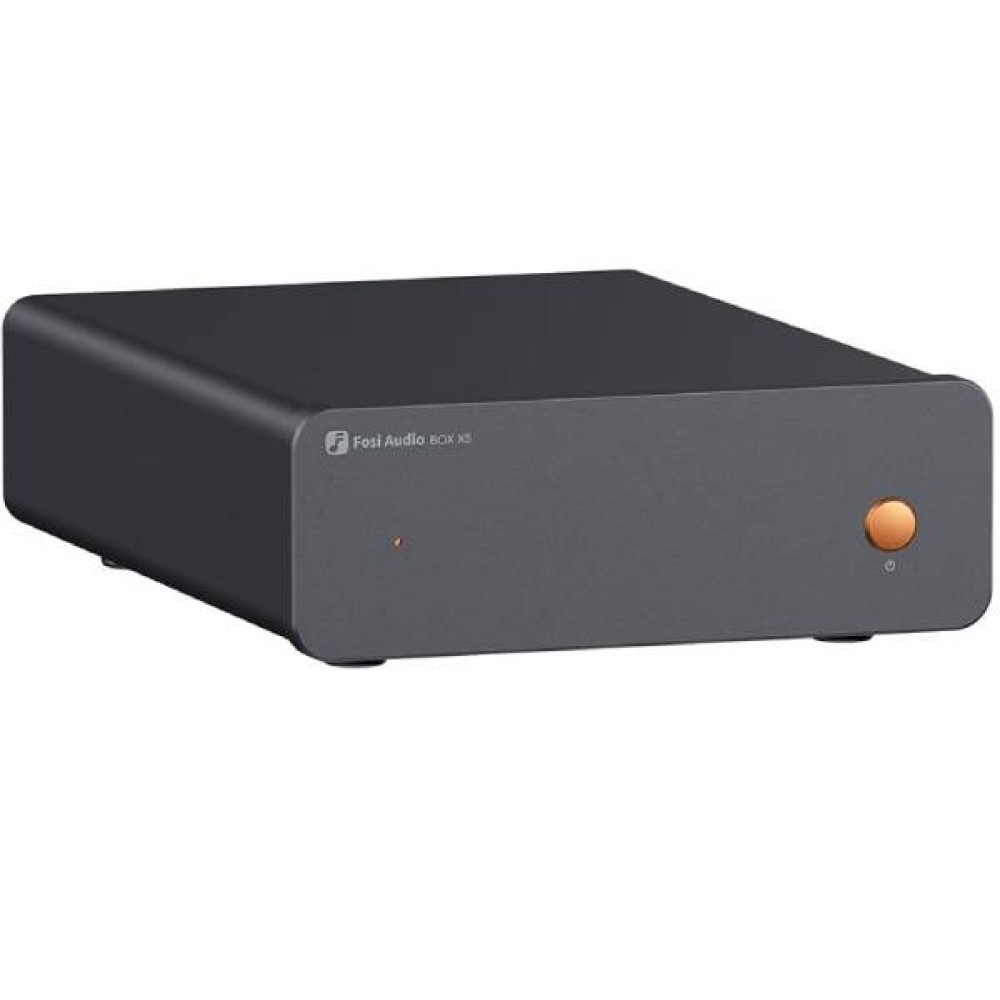

Fosi Audio Box X5 Phono Preamplifier

Fosi Audio Box X5 Phono Preamplifier

The Fosi Audio Box X5 Phono Preamplifier is a dedicated phono preamp designed to connect a turntable to an amplifier or powered audio system. It supports bothMM (Moving Magnet) and MC (Moving Coil) cartridges, making it suitable for a range of vinyl playback setups. With four selectable gain levels, adjustable input impedance, RCA connectivity, and RIAA equalization, the Box X5 is designed to provide the signal conditioning a turntable cartridge needs before sending audio to the next component.

For buyers searching for Fosi Audio Box X5 Phono Preamplifier price in BD, Multimedia Kingdom currently lists the Box X5 in Bangladesh with a product price at the time of research. Product availability and pricing can change, so buyers should verify the current listing before ordering.

What Is Fosi Audio Box X5 Phono Preamplifier?

The Box X5 is aphono preamplifier from Fosi Audio, a model specifically intended for vinyl audio systems. A phono preamp performs an important job: it amplifies the very low-level electrical signal generated by a turntable cartridge and applies the required RIAA equalization before the signal reaches an amplifier or powered speaker system.

Unlike a standard line-level audio source, a turntable cartridge produces a much weaker signal. The Box X5 is therefore positioned between the turntable and the audio amplification stage, helping create a suitable line-level signal for the rest of the system.

Where Does This Product Fit in Its Category?

The Box X5 belongs to the phono preamplifier segment within the broader home audio and vinyl playback category. This makes it different from a conventional stereo power amplifier: it does not primarily drive passive speakers. Instead, its role is to prepare the turntable's cartridge signal for an amplifier or compatible powered audio system.

It is particularly relevant when a turntable does not have a suitable built-in phono stage, or when a listener wants a separate phono preamp with selectable cartridge gain and impedance settings.

Core Technology

The most important technology in the Box X5 is its support forMM and MC cartridge types. These cartridge designs can produce different signal levels and have different electrical requirements, so the preamp provides four gain settings:38dB, 48dB, 56dB, and 66dB.

It also provides selectable input impedance:47kΩ for MMand100Ω for MC, allowing the input stage to be matched more appropriately with the cartridge being used.

The Box X5 usesRIAA equalization, a standard part of vinyl playback that compensates for the equalization applied when records are produced. It also uses precision components and an aluminum chassis intended to help with signal integrity and electromagnetic interference shielding.

Important Features

• MM & MC cartridge support:Allows the same preamp to work with both major cartridge types.

• Four gain levels:38/48/56/66dB gives users more flexibility when matching the preamp to cartridge output.

• Selectable input impedance:MM 47kΩ and MC 100Ω settings provide cartridge-specific electrical matching.

• RIAA equalization:Designed to correctly process the frequency balance of vinyl playback.

• RCA input and output:Provides straightforward analog connectivity between a turntable and amplifier.

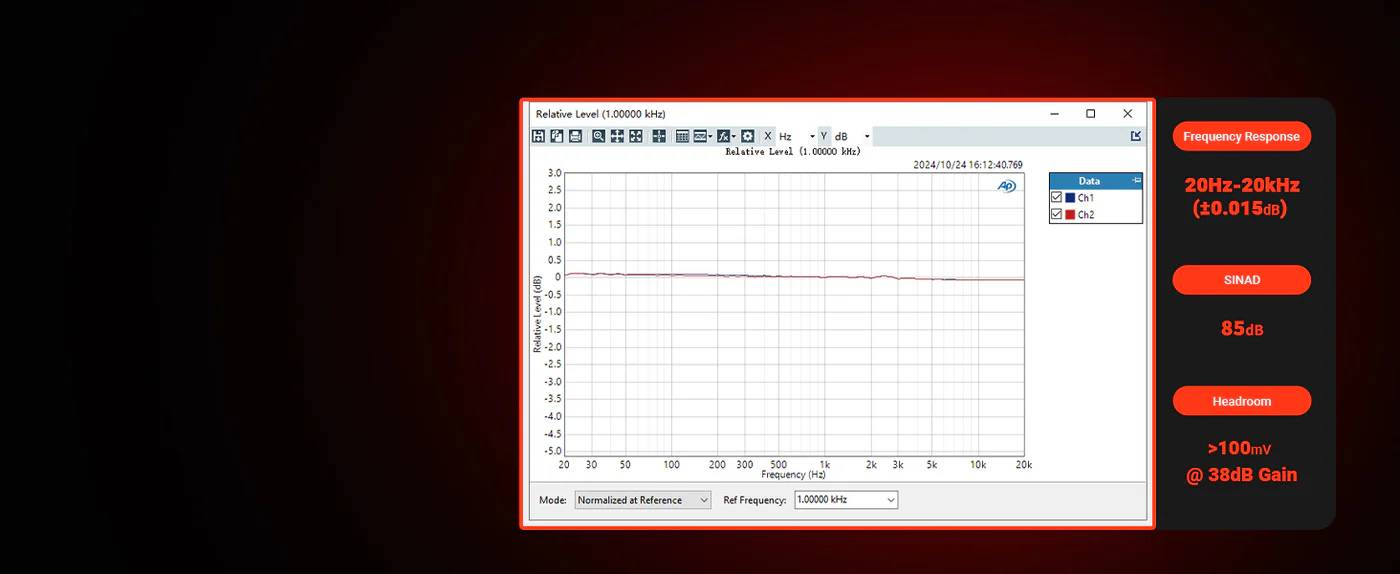

• Low-noise design:Fosi Audio specifies an SNR of ≥92dB and THD of ≤0.009% for the Box X5.

• Swappable op-amp design:The product page states that the unit supports replacement with DIP8 dual op-amps, giving experienced users an option for hardware experimentation.

What Can It Be Used For?

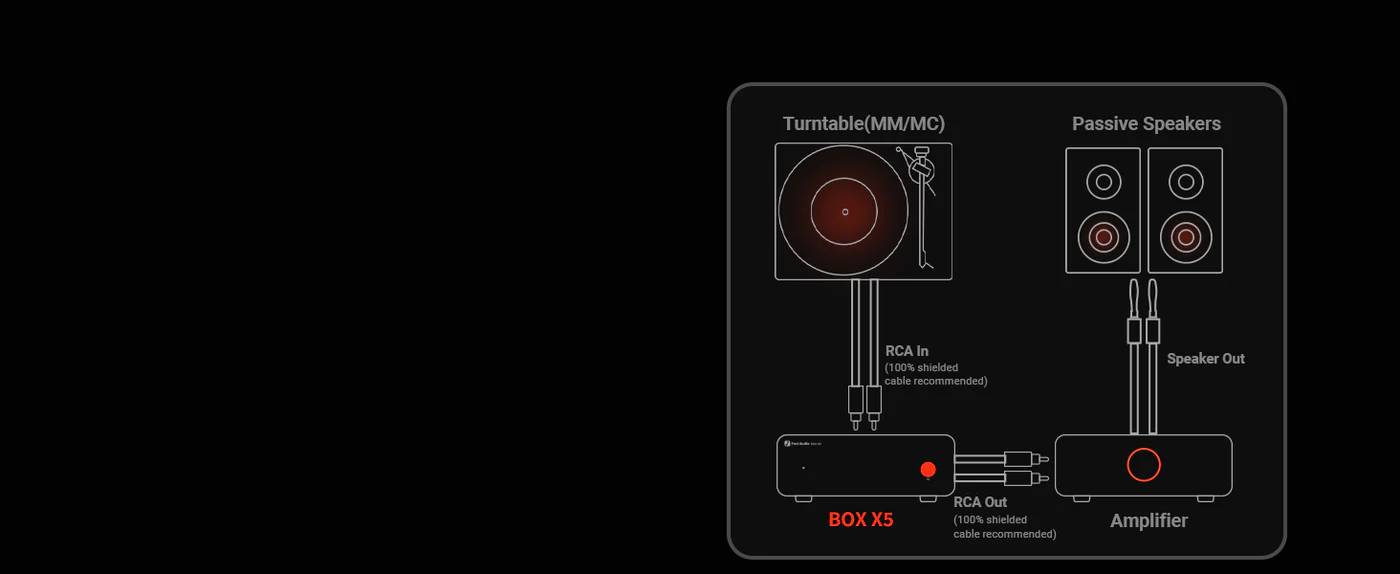

The Box X5 can be used to build or upgrade avinyl listening system. A typical setup is:

Turntable → Fosi Audio Box X5 → Stereo Amplifier → Passive Speakers

It can also be useful for listeners who have a turntable with an MM or MC cartridge but want a dedicated phono stage rather than relying on a built-in phono circuit.

For example, a vinyl enthusiast can pair the Box X5 with a suitable stereo amplifier and passive speakers to create a traditional home Hi-Fi system. The selectable gain and impedance controls are particularly useful when the cartridge requires more careful matching.

Who Is It Designed For?

The Fosi Audio Box X5 is suited tovinyl enthusiasts, Hi-Fi listeners, turntable owners, and audio hobbyistswho want a separate phono preamplifier. Its MM/MC compatibility also makes it relevant for users who may change cartridges or want more flexibility when configuring their vinyl setup.

It is especially useful for someone building a modular audio system where the turntable, phono stage, amplifier, and speakers are separate components.

Product Strengths

One of the Box X5's main strengths issystem flexibility. Instead of being limited to a single cartridge type or fixed gain level, it provides four gain options and two impedance configurations. That makes it easier to configure the preamp around the cartridge rather than forcing every turntable setup into the same electrical configuration.

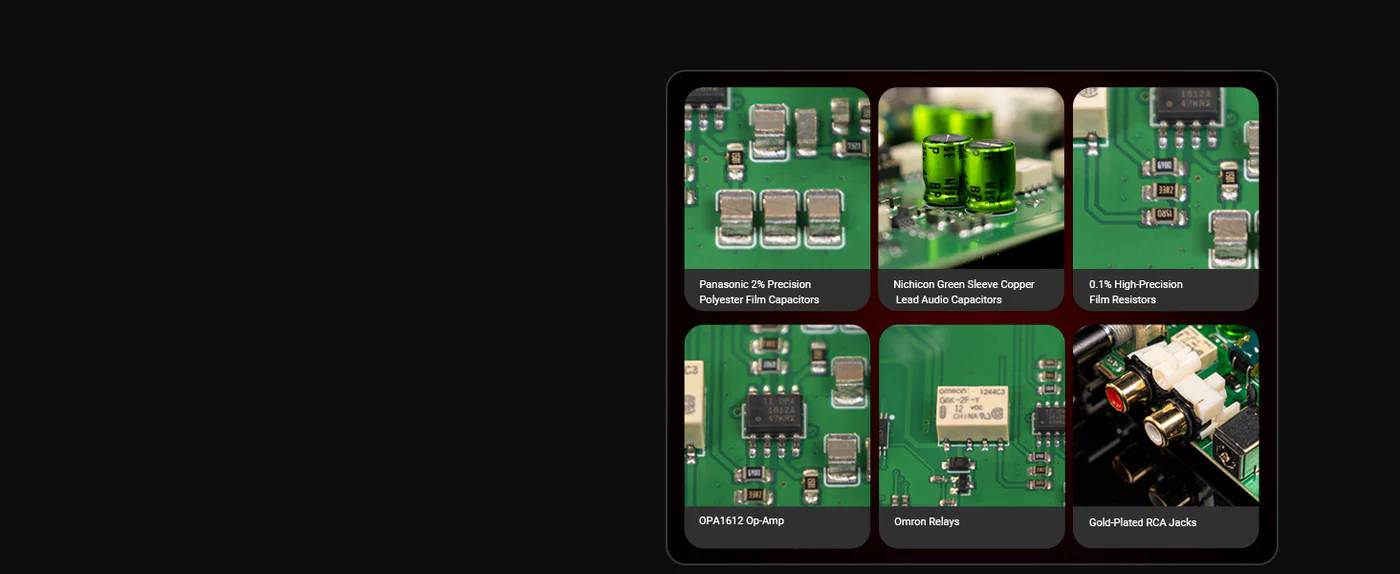

Its compact dedicated design, RCA connectivity, RIAA equalization, and stated low-distortion performance also make it a practical component for a focused analog audio chain. The product page additionally identifies high-precision components and a swappable op-amp design as part of its construction.

What to Consider Before Buying

Before purchasing a phono preamp, first check whether your turntable already includes abuilt-in phono preamp. If it does, an external unit may require the correct output mode or connection configuration.

Next, identify whether your cartridge isMM or MCand check its recommended loading and output level. The Box X5 provides MM 47kΩ and MC 100Ω impedance settings, with four gain levels for different cartridge signal ranges.

You should also confirm that the rest of your system accepts the Box X5'sRCA output. A phono preamp is not a replacement for a power amplifier, so passivespeakers will still require an appropriate amplifier.

Check Out Related Products & Categories

For a complete vinyl system, the Box X5 can be paired with the Fosi Audio V3 Mini Stereo Amplifier 48V, which serves a different role by providing amplification for speakers.

You can also explore Multimedia Kingdom's Turntable collection for compatible vinyl playback sources and Turntable Accessories for supporting equipment.

For buyers interested specifically in the brand, the Fosi Audio collection provides access to other Fosi Audio products available through Multimedia Kingdom.

FAQs

Is the Fosi Audio Box X5 compatible with both MM and MC cartridges?

Yes. The Box X5 supports both Moving Magnet (MM) and Moving Coil (MC) cartridges.

What gain settings does the Box X5 offer?

It provides four selectable gain levels:38dB, 48dB, 56dB, and 66dB.

What input impedance does the Box X5 use?

The specified settings are47kΩ for MMand100Ω for MC.

Can I connect the Box X5 directly to passive speakers?

No. The Box X5 is a phono preamplifier, not a speaker power amplifier. A suitable amplifier is required between the preamp and passive speakers.

Does the Fosi Audio Box X5 use RCA connections?

Yes. It has an MM/MC RCA input and RCA output for connecting the turntable and the following amplification stage.

Is the Box X5 suitable for a turntable setup?

Yes. It is specifically designed for turntable cartridges and includes MM/MC support, adjustable gain, impedance selection, and RIAA equalization.

What is the Fosi Audio Box X5 price in Bangladesh?

Multimedia Kingdom currently lists the Box X5 ataffordable price, although prices and availability can change. Check the live product page before purchasing.

Can I use the Box X5 with a Fosi Audio stereo amplifier?

Yes, provided the amplifier has a compatible RCA line-level input. The Box X5 can act as the phono stage before the stereo amplifier in a vinyl playback chain.
