Toa A 2030 Mixer Power Amplifier

Toa A 2030 Mixer Power Amplifier
Save: 1500৳
N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.
Toa A 2030 Mixer Power Amplifier

Features

  • Stock: In Stock

Cash Discount Price

12,000৳
13,500৳
Check available payment method
Contact for bulk quantity: 01755532345

Monthly EMI Price

1,093৳
Total 12,371৳ need to pay in 12 month.
Price Click here to view 25 banks EMI Plans
Ex Tax: 12,000৳
  • Please confirm availability before completing your purchase by calling us.
  • The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.
  • We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.
  • We cannot guarantee that the information on this page is 100% accurate. Multimedia Kingdom is not responsible for any results obtained from using this information.

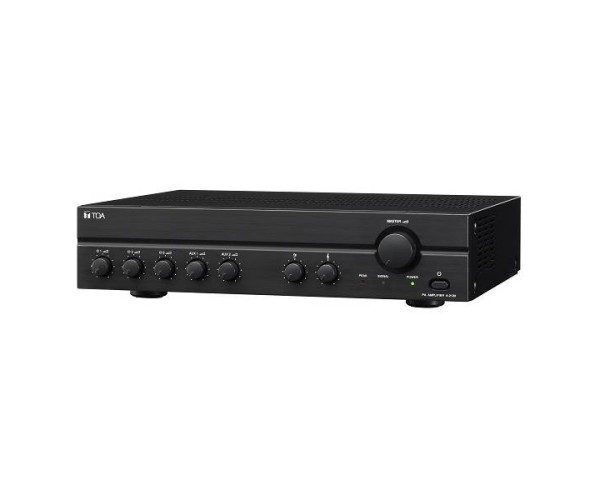

Toa A 2030 Mixer Power Amplifier

The Toa A-2030 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.

Specifications:

Power Source 220 - 240 V AC, or 24 V DC
Rated Output 30 W
Power Consumption 34 W (EN60065), 2 A (DC operation at rated output)
Frequency Response 50 - 20,000 Hz (±3 dB)
Distortion 1% or less at 1 kHz, 1/3 rated power
Input MIC 1 - 3: -60 dB*, 600 Ω, balanced, equivalent to XLR-3-31 type AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack Mute: Contact screw terminal (for MIC 1)
Output Speaker out: Balanced (floating), M3.5 screw terminal, distance between barriers: 8.3 mm (0.33") High impedance: 330 Ω (100 V), 170 Ω (70 V) Low impedance: 4 Ω (11 V) Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack
Phantom Power DC 21 V (MIC 1)
S/N Ratio 60 dB or more
Tone Control Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz
Muting MIC 1 overrides other input signals with 0 - 30 dB attenuation by mute terminal contact.
Finish Panel: ABS resin, black Case: Steel plate, black
Dimensions 420 (W) × 100.9 (H) × 280.3 (D) mm (16.54" × 3.97" × 11.04")
Weight 5 kg (11.05 lb)
