Wacom DTH-1152
Ex Tax: 86,199৳
Features
- Active Area: 8.79″ x 4.94″
- Resolution: 1920 x 1080 pixels
- Pen Pressure: 1024
- Touch: Yes
- Please confirm availability before completing your purchase by calling us.
- The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.
- We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.
- We cannot guarantee that the information on this page is 100% accurate. Multimedia Kingdom is not responsible for any results obtained from using this information.
Features | |
Stand | 15° integrated stand |
Cover glass surface | Tempered AG etched glass |
Touch | Yes |
Keyboard Specifications | |
Drivers | Wacom driver required,, SDK/API available for developers |
Main Features | |
Connectivity | USB2.0, HDMI for Video input |
Technical Specifications | |
Pen Pressure levels | 1024 Levels |
Brightness | 0.13 cd/in² / 200 cd/m² (typical) |
Power Consumption | Power Save mode: 0.5 W or lower, Power OFF mode: 0.5W or lower, 10 W (full loading) |
Aspect Ratio | 16:9 |
Contrast Ratio | 1000:1 (typ) |
Power Supply | AC 100 ~ 240 V, 50/60 Hz |
Response Rate | 25ms |
Viewing Angle | 170/170 (typ) |
Pen Technology | Electromagnetic resonance (EMR) |
Resolution | 1920 x 1080 (16:9) |
Signature software compatability | Compatible with signature / eSign software and Wacom sign pro PDF; C++, .NET and Java SDK/API available for developers |
Color Performance | 16.7M |
Pen storage | Integrated pen compartment, pen stand |
Security lock slot | Yes, Kensington |
Mounting system | VESA 2.95 inches / 75 mm |
Appearance | |
Product Model | DTH-1152 Interactive Pen Display |
Product Code | DTH1152 |
Active Area | 223.2 x 125.6 mm / 8.79 x 4.94 inches, 10.1“ diagonal |
Dimension | 279.8 x 209.9 x 16 mm / 11 x 8.26 x 0.62 inch |
Display Type | AHVA |
Weight | 1.0 kg / 2.2 lbs |
Accuracy | ±0.02 inches / ±0.5 mm (center) |
Report Rate | 200 points per second (non-interpolated) |
Encryption | AES 256 / RSA 2048 |
Connectivity | |
Programmable buttons | NA |
System Requirements | Windows 10 / 8.1 / 7 (32-bit, 64-bit) Mac OSX 10.11 or later |
Warranty | |
Warranty | No Warranty |
Reading Height | 0.2 inches / 5 mm (center) |
Pen Resolution | 2540 lpi |

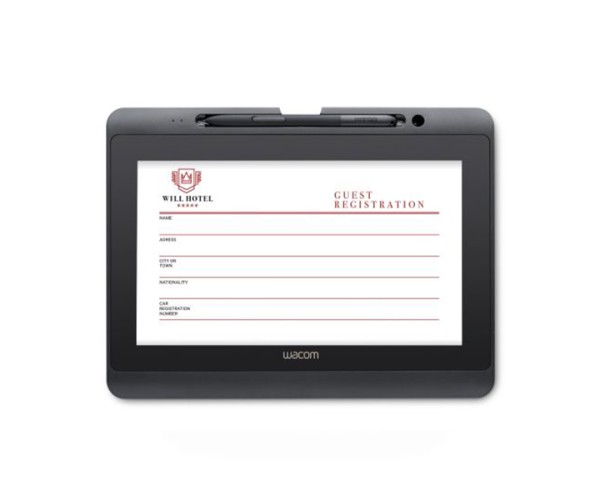

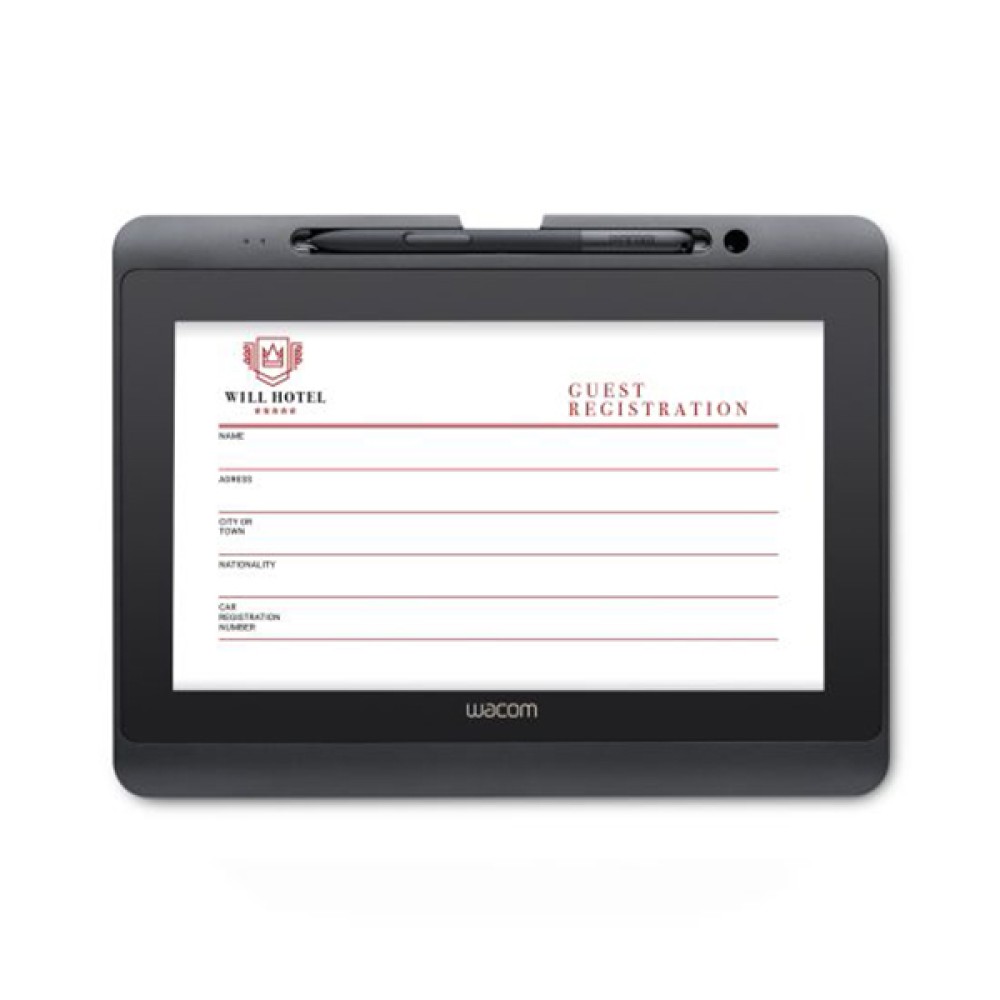

Wacom DTH-1152 Interactive Pen Display
The DTH-1152 is the premier compact pen display for businesses looking to implement electronic review, completion and signing of documents. It combines Wacom’s industry-leading pen technology with an extremely responsive multi-touch screen. Utilize the touch screen to scroll, pan or zoom within documents. With the pen, annotate, fill-out and sign those documents with all the ease of pen on paper. Standard HDMI video connections provide greater flexibility in a variety of virtualized desktop configurations, and a VCP (Virtual Com Port) mode is available to support legacy virtualized environments. The DTH-1152 provides both pen and touch input in a compact pen display for convenience when reviewing, annotating and applying electronic signatures to digital documents. Users can write, draw, annotate, and sign electronic documents directly on screen. The 10.1” Full HD LCD screen has a hardened surface that provides outstanding durability and a paper-like feel. The built-in HDMI video interface also enables the DTH-1152 to be integrated seamlessly into VDI/RDS and Linux systems.Key Features and Benefits
- Optimal user comfort with the 10.1” color Full HD LCD panel that allows easy document viewing and signing, drawing and annotating directly on the screen
- Intuitive input with multi-touch functionality for easy navigation and support for common gestures
- Outstanding durability via the scratch-resistant hardened cover glass that provides easier viewing in different lighting conditions and a paper-like feel
- Flexible installation via the HDMI video interface that allows seamless integration into any system including Citrix, VMware or Linux, and support for VCP (Virtual Com Port) connection for use in legacy VDI/RDS environments
- Enhanced stability with cable protection that prevents accidental disconnections
- Convenient usage with landscape and portrait mode, and built-in VESA mounting holes also provide mounting options and the use of third-party stands
What's included
- DTH-1152
- cordless and battery-free pen
- pen tether
- 5 extra pen nibs
- nib removal tool
- 3-in-1 cable
- AC power adapter
- power cable
- Start Guide
- IPI
