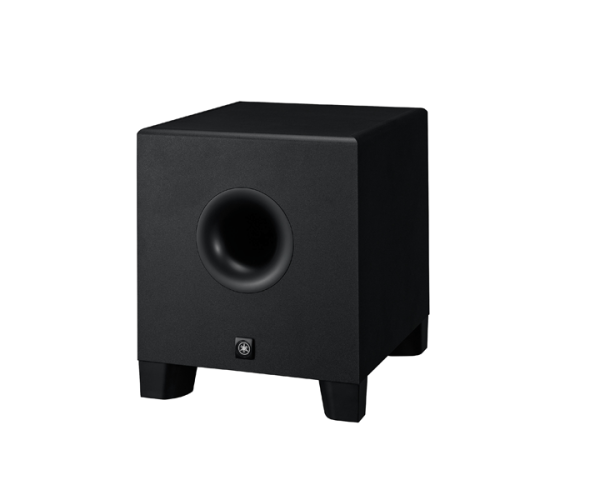

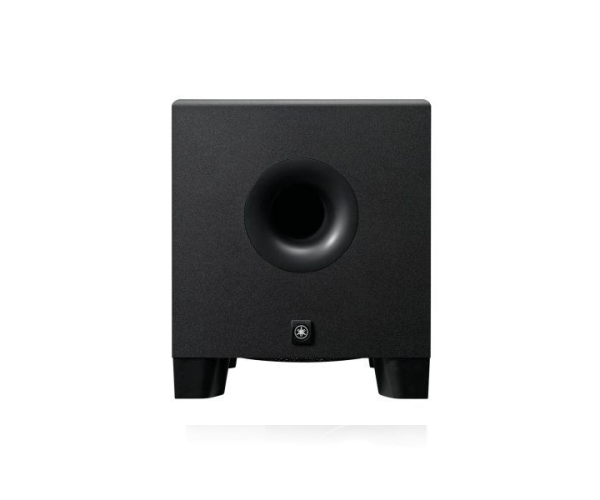

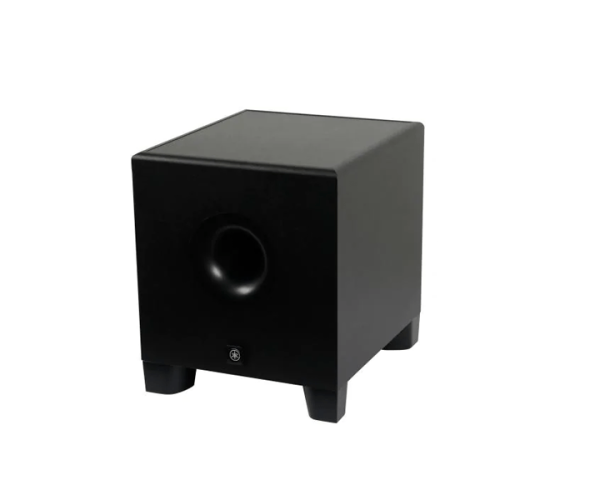

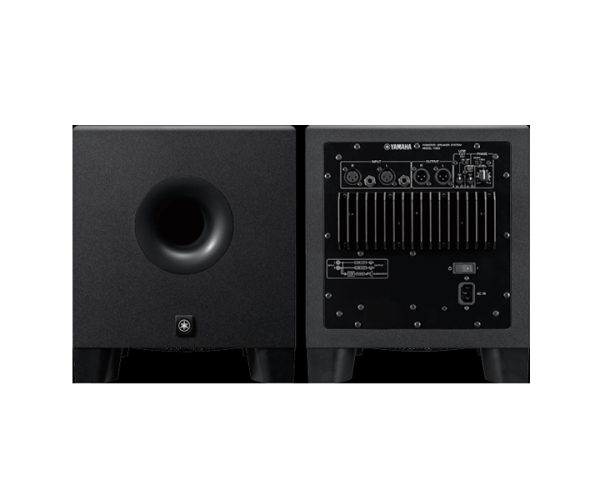

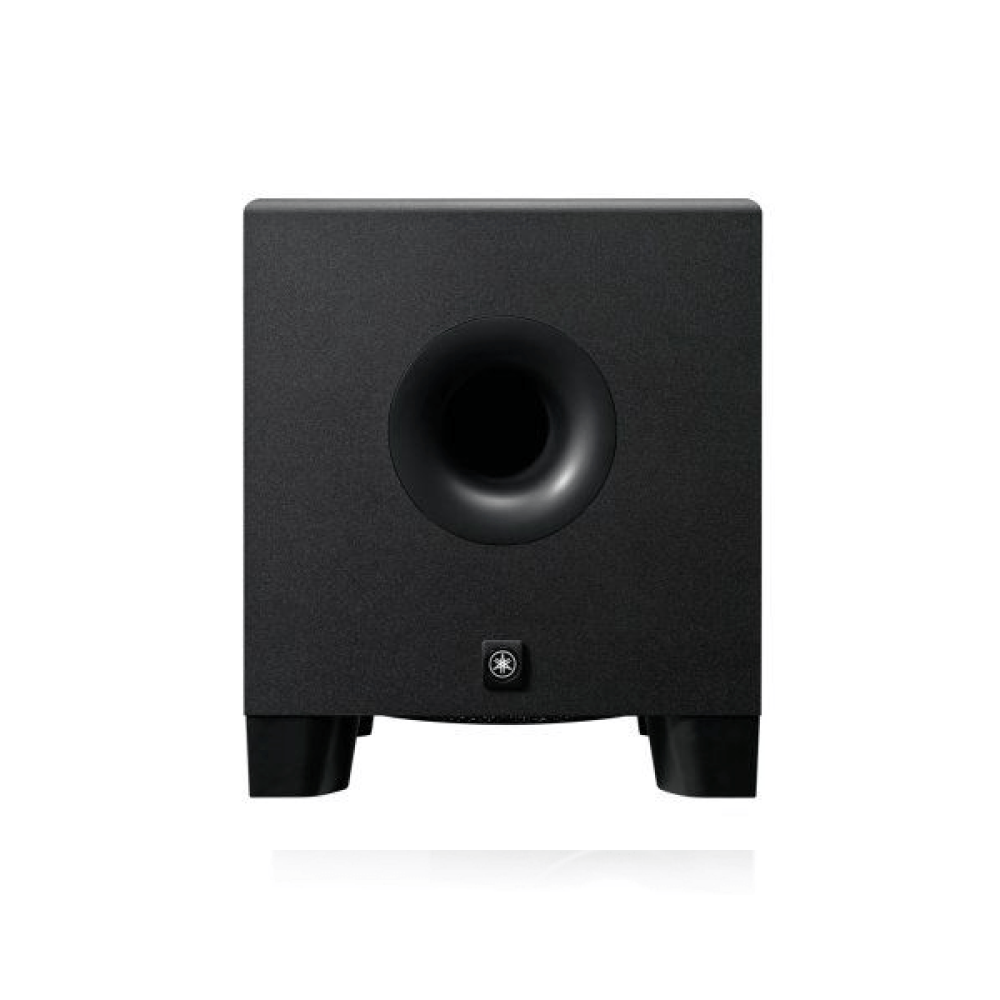

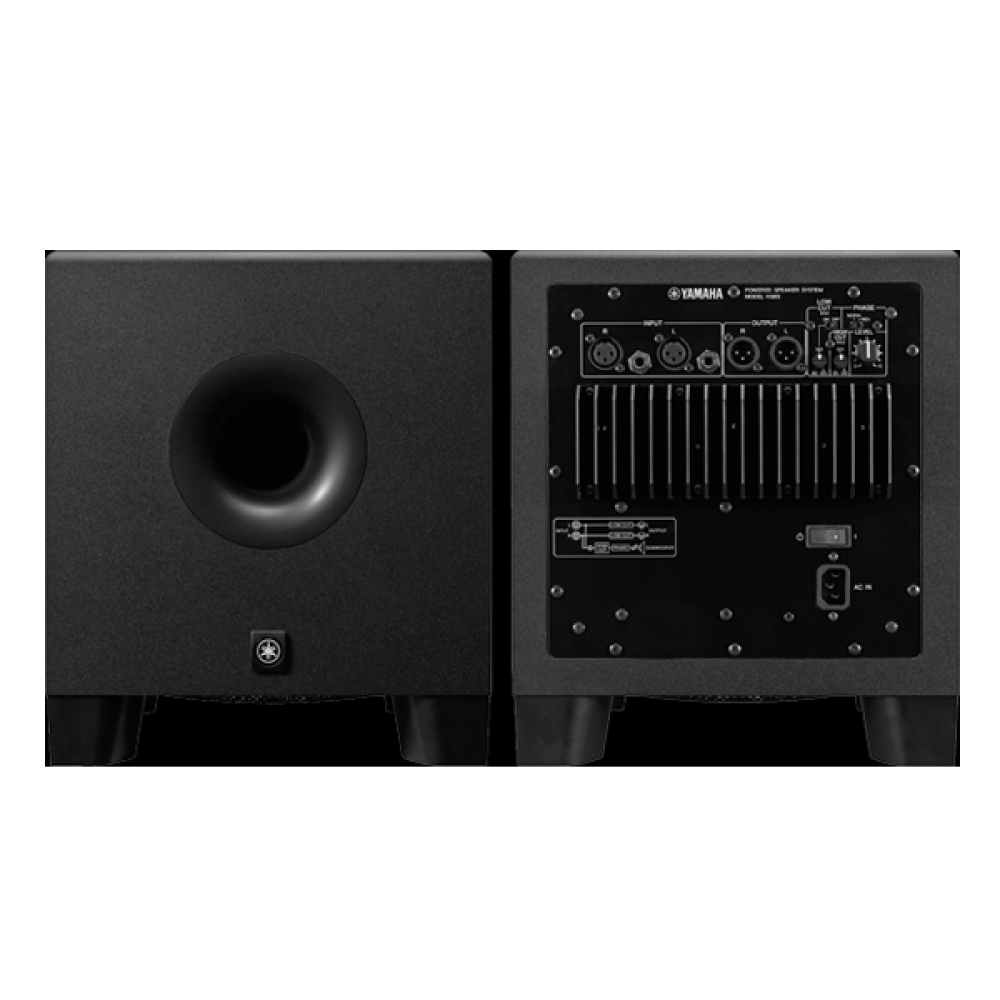

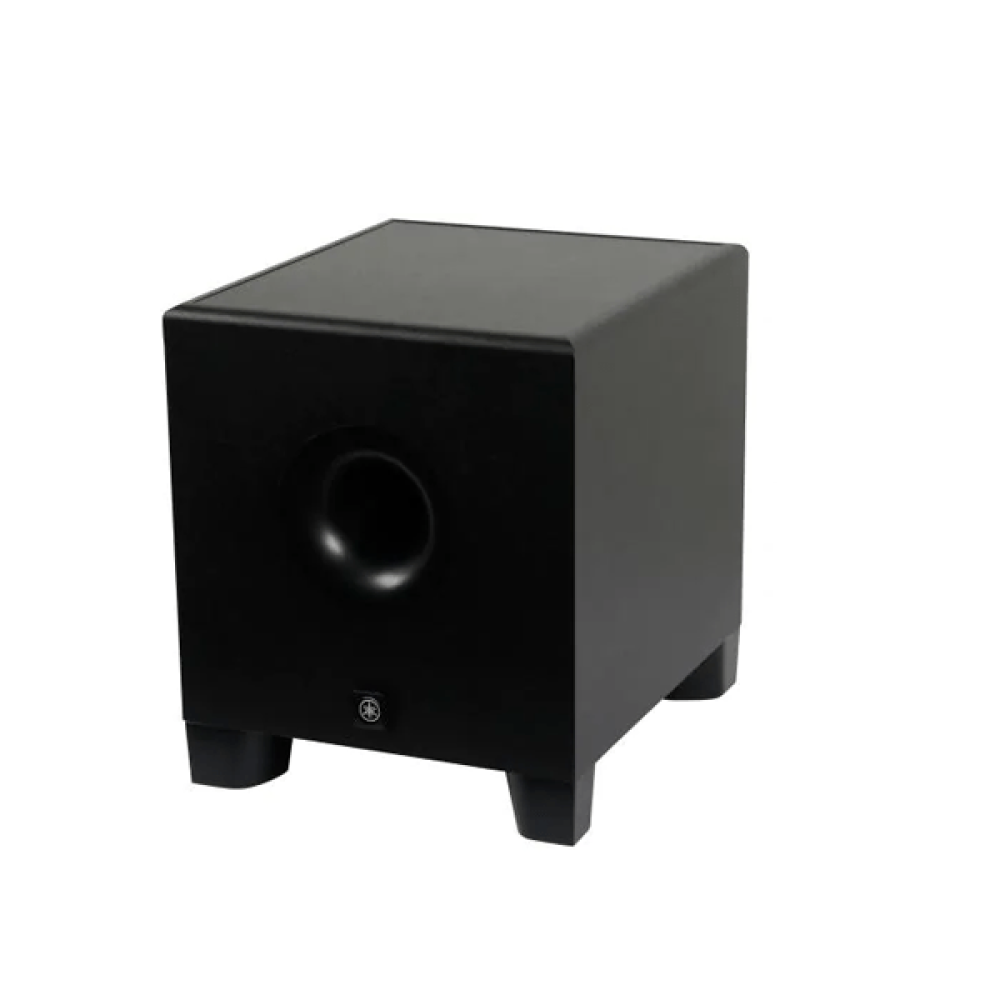

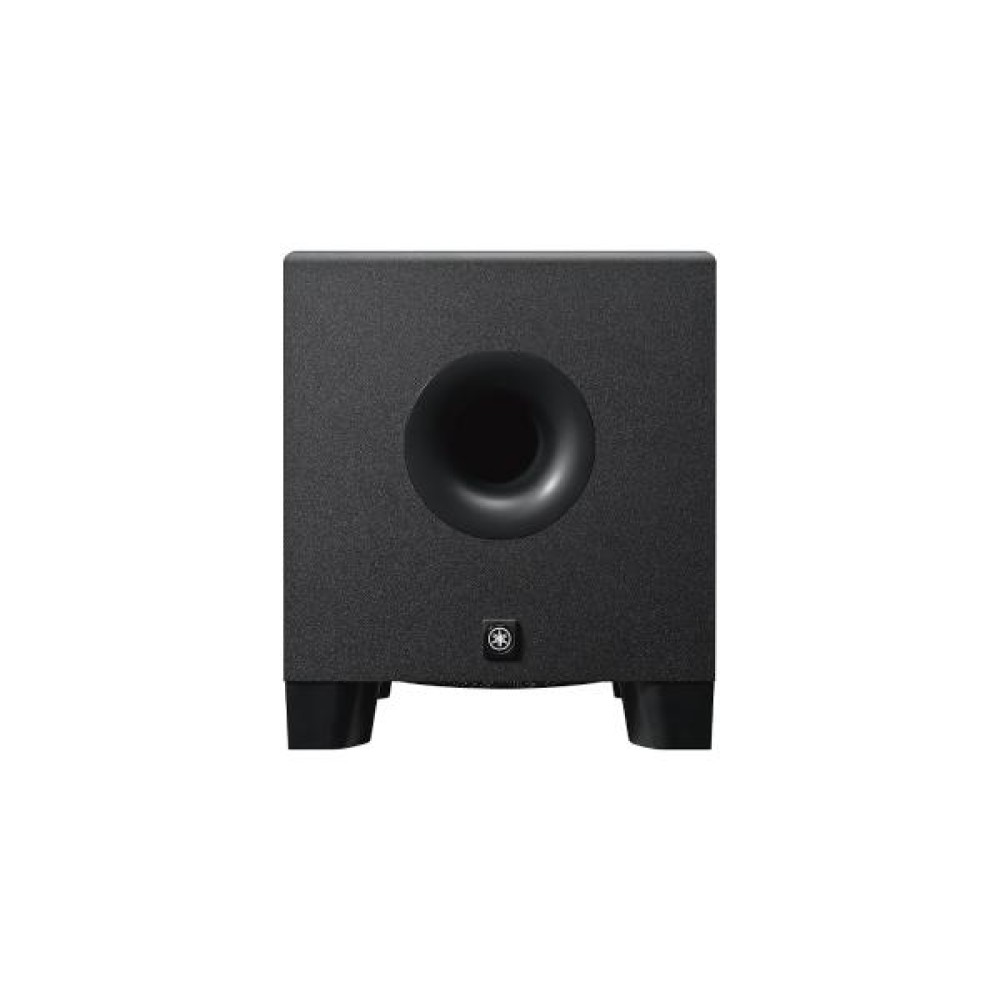

Yamaha HS8S Studio Monitor Subwoofer
Yamaha HS8S Studio Monitor Subwoofer
Yamaha HS8S Studio Monitor Subwoofer employ an amplifier unit perfectly matched to the transducers utilized in each model of the series. Featuring a bi-amp design with a separate dedicated amp for both the woofer and the tweeter, this amplifier unit ensures that each HS Series speaker consistently delivers high-resolution sound with exceptionally flat response across the sound spectrum.
General specifications |
||
|---|---|---|
| Speaker type | Powered subwoofer | |
| Frequency range (-10dB) | 22Hz - 160Hz | |
| Components | LF | 8" cone |
| Output power | 150W | |
| I/O connectors | INPUT: XLR3-31 type (balanced) x2, PHONE (balanced) x2 / OUTPUT: XLR3-32 type (balanced) x2 (L&R), XLR3-32 type (balanced) x1 (EXT SUB) | |
| Power consumption | 70W | |
| Shape | Bass-reflex type | |
| Cabinet material | MDF | |
| Dimensions | W | 300mm (11.8") |
| H | 350mm (13.8") | |
| D | 389mm (15.3") | |
| Net weight | 12.5kg (27.6 lbs.) | |
| Others | LEVEL control, PHASE switch : NORM./REV., HIGH CUT control (80-120Hz, center click), LOW CUT control (80-120Hz, center click), LOW CUT switch (ON/OFF) | |
Features
8" bass-reflex powered subwoofer delivers low frequencies down to 22Hz.
- 8" bass-reflex powered subwoofer delivers low frequencies down to 22Hz
- 22Hz - 150Hz frequency response
- High-power 150W amplifier exclusively designed for low frequencies
- LOW CUT switch, LOW CUT control (80-120Hz) HIGH CUT control (80-120 Hz)
- PHASE switch allow users to set up a subwoofer system with simple connections and no additional equipment
- XLR and TRS phone for outputs and XLR for L and R and EXT SUB
Sound Philosophy of Yamaha HS8S Studio Monitors Subwoofer
When selecting studio reference monitors for mixing and music production, one consideration takes precedence above all others – accuracy.
Beginning with the legendary NS-10M, and continuing with the MSP and previous HS Series, this new lineup shares a design philosophy that emphasizes sonic purity without any coloring or alternation of the original sound. While many manufacturers seek to enhance the sound of their monitors to make them sound impressive, Yamaha studio monitors are designed to achieve the best possible mix by ensuring that the sound from your speakers is true to the original. HS Series nearfield reference monitors are the embodiment of this philosophy, delivering a concise sound image, high resolution, and flat response.
