Name: ASUS PRIME X670
Brand: Asus
Availability: OutOfStock

Audio
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback, Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Battery
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard, Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design, - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution, M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool, - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers
Casing Specification
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Connector & Ports
Display Port (s)	1x DisplayPort
Internal I/O Ports	Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector, Internal I/O Connectors Fan and Cooling related, 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers, 1 x 4-pin +12V Power connector Storage related, Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports, USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous, 3 x Addressable Gen 2 headers 2 x Aura RGB headers, 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thunderbolt (USB4) header, Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (3 x Type-A), 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort, 1 x HDMI® port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks, 1 x BIOS FlashBack button 1 x PS/2 Keyboard/Mouse combo port
RAID	AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
Supported Storage	Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD X670 Chipset, M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports
Expansion Slots
M.2 Socket	Total supports 3 x M.2 slots
PCI	AMD Ryzen 7000 Series Desktop Processors, 1 x PCIe 4.0 x16 slot (supports x16 mode), AMD X670 Chipset, 2 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot
General
Chipset	AMD X670
Memory
Maximum Memory	128GB
Slots	4 x DIMM
Supported Memory	DDR5 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II, 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory
Motherboard Basic Information
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Supported CPU	AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Others
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving, AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z, IT Management software supported - ASUS Control Center Express(ACCE) Norton Anti-virus software (Free Trial version) WinRAR
Ports, Connectors & Slots
USB	Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C), 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports), 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Extra RAM Slot	1 x Intel 2.5Gb Ethernet
Technical Specifications
Graphics	**Supports max. 8K@60Hz as specified in DisplayPort 1.4., 1 x DisplayPort 1 x HDMI port, Supports max. 4K@60Hz as specified in HDMI 2.1.
Warranty
Warranty	3 Years

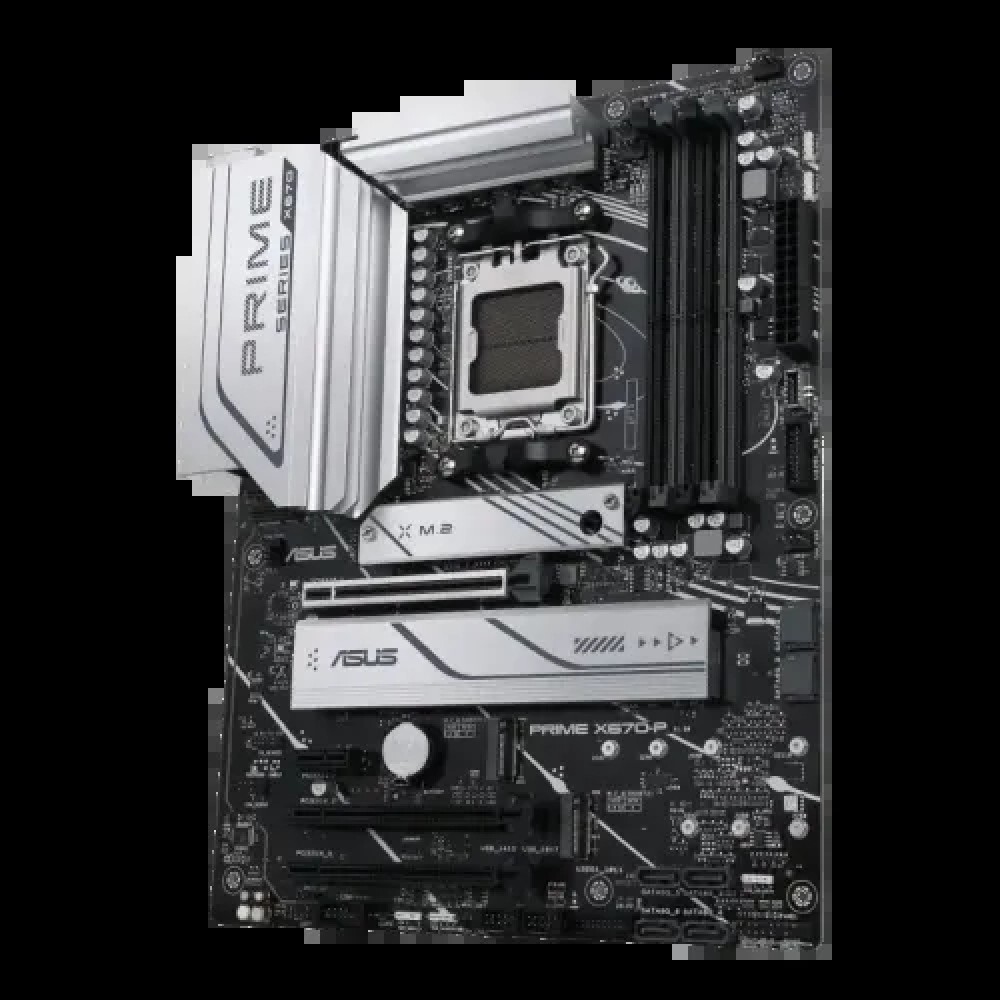

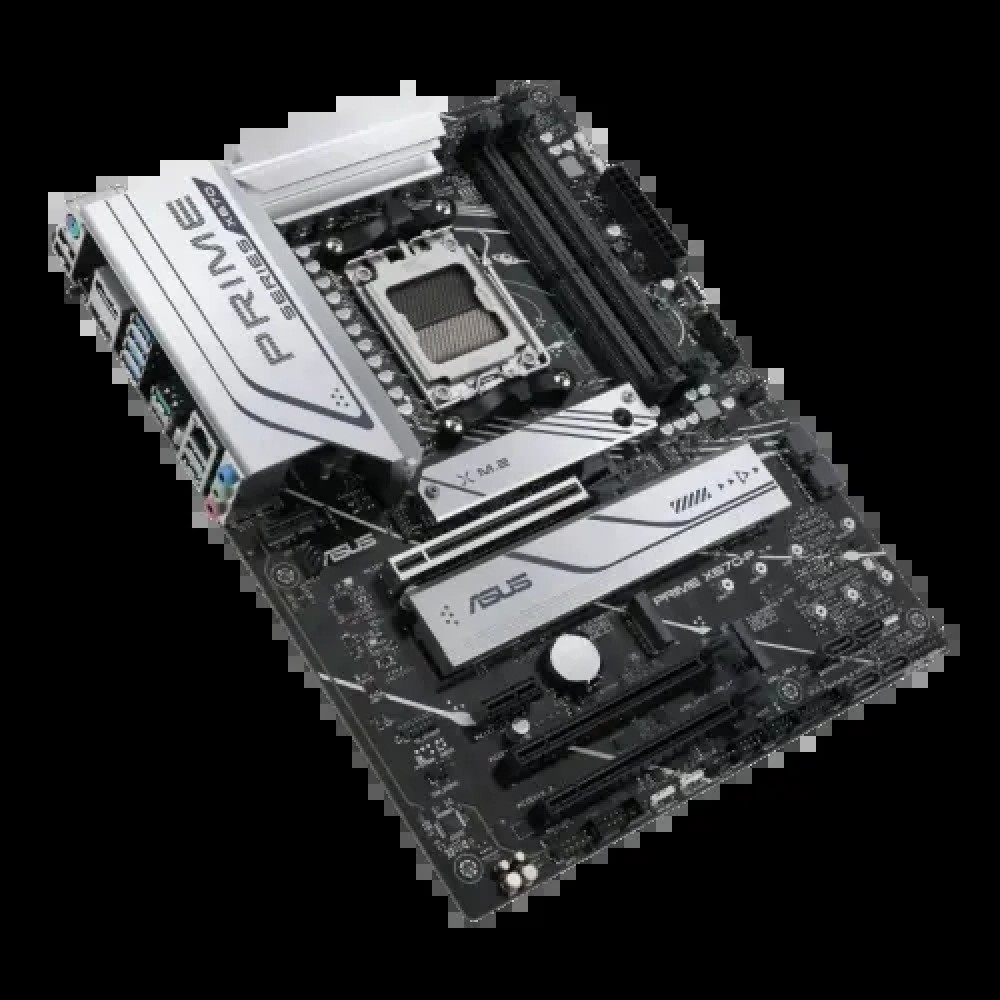

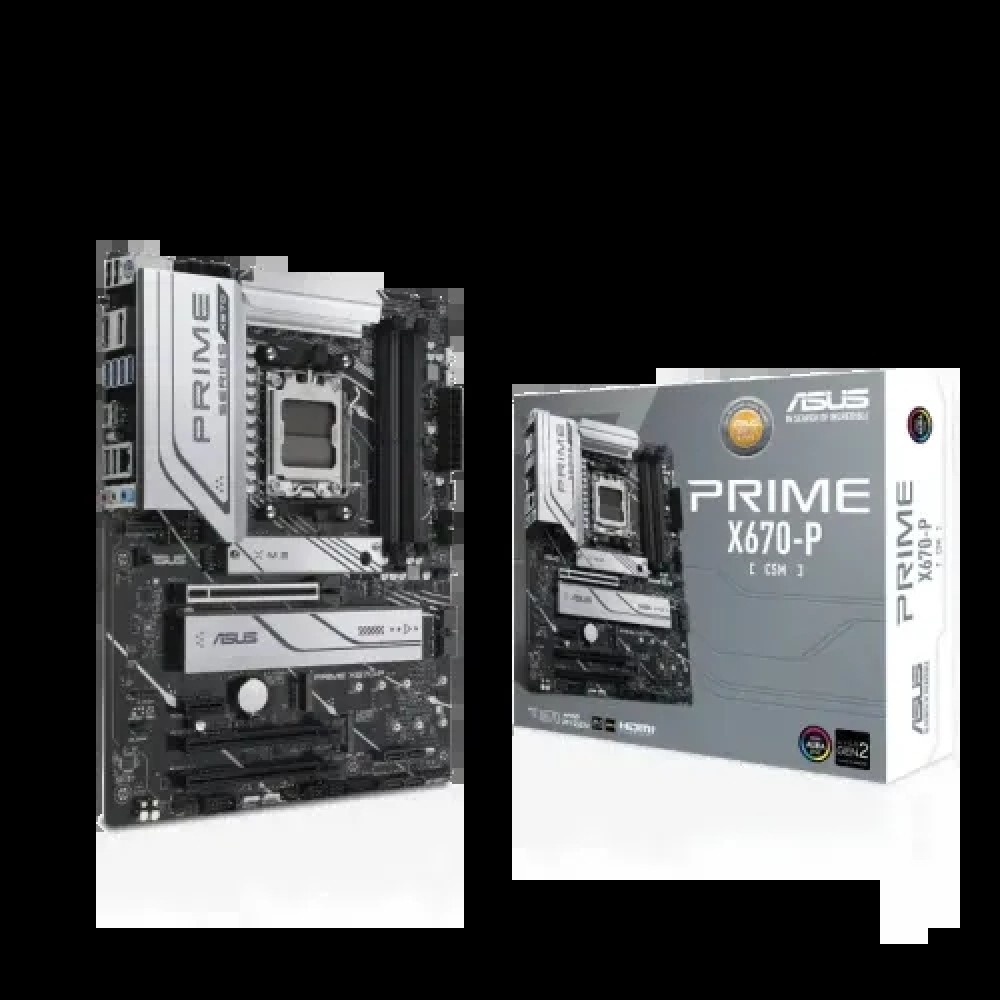

Asus PRIME X670-P-CSM DDR5 AM5 ATX Motherboard

The Asus Prime series motherboards are skillfully designed to maximize the performance of AMD Ryzen 7000-series CPUs. The PRIME X670-P-CSM, with its robust power design, comprehensive cooling solutions, and intelligent tuning options, offers users and PC DIY builders a variety of performance optimizations via intuitive software and firmware features. The PRIME X670 series is designed to handle AMD processors' high core counts and bandwidth demands. The ASUS X670 motherboard includes all of the essentials for increasing daily productivity, ensuring that your system is ready for action with stable power, intuitive cooling, and flexible data transfer options. Build your next rig with an AMD Ryzen 7000 Series processor and PRIME X670-P-CSM to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and an 80MB cache, the AMD Ryzen 7000 Series keeps you ahead of the game. With AMD Socket AM5, you'll also have access to additional capabilities for gamers, such as DDR5 memory speed and PCIe 5.0 improved bandwidth. AMD Ryzen 7000 Series CPUs and AMD socket AM5 motherboards are overclockable, allowing you to customize your experience. Overclock your DDR5 memory with AMD EXPO technology to get even more performance.
