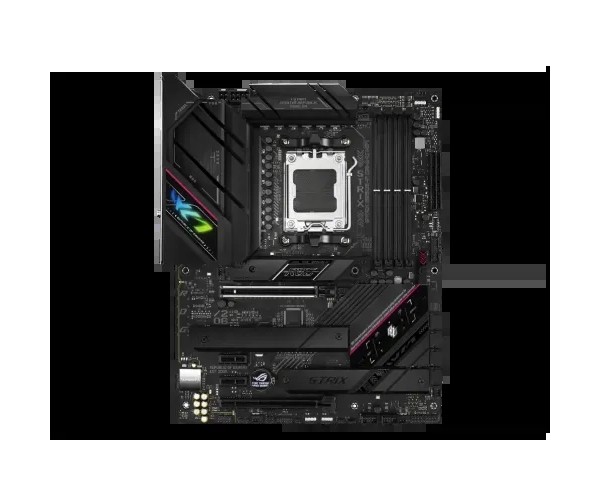

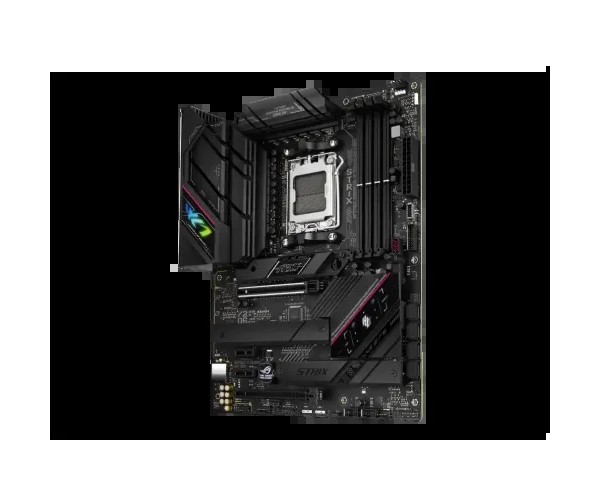

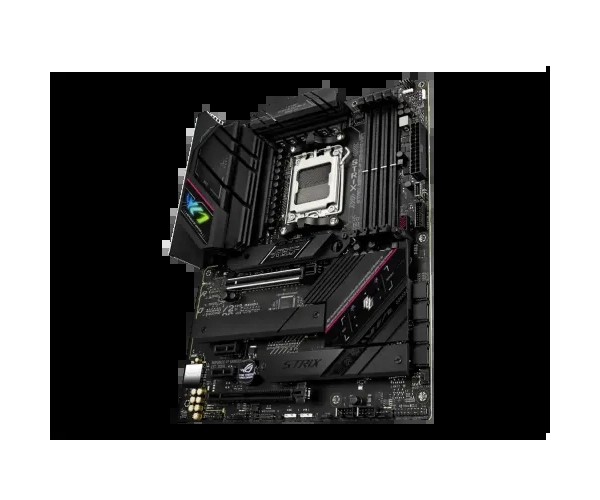

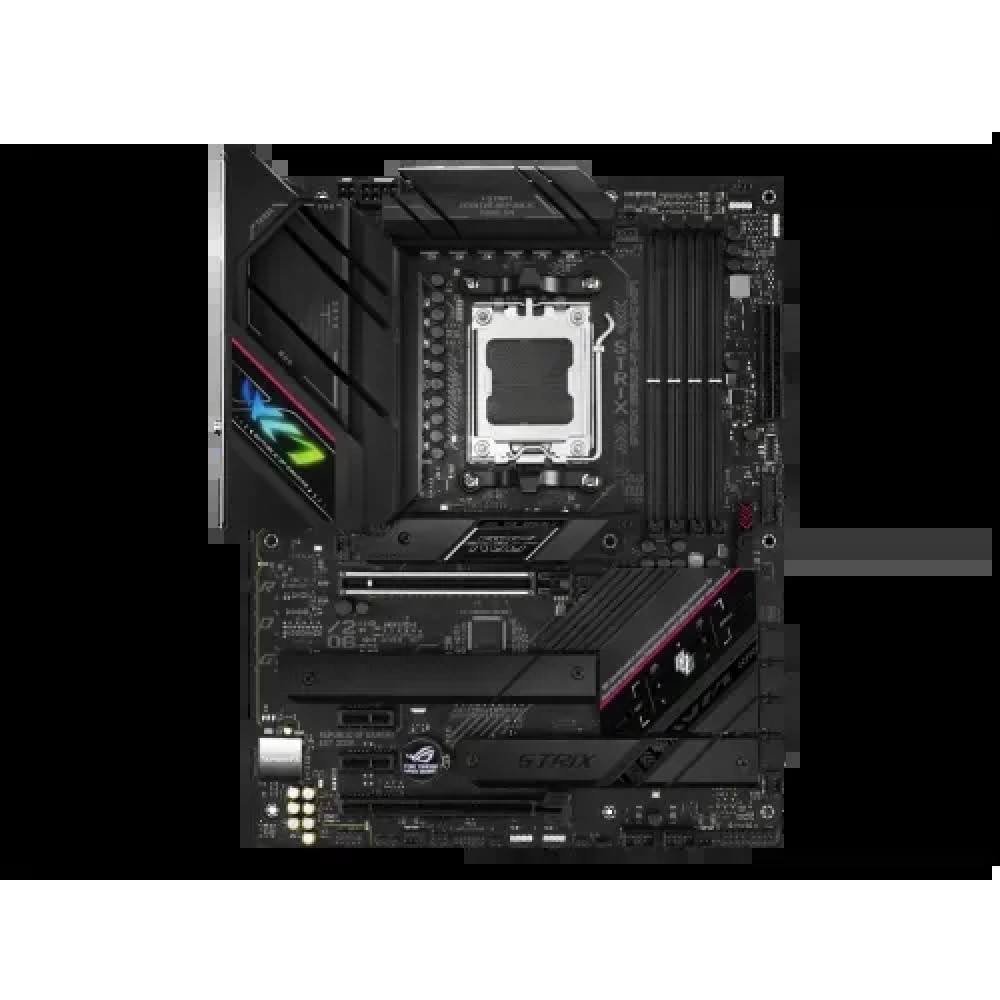

Name: Asus ROG STRIX B650E-F
Brand: Asus
Availability: OutOfStock

Audio
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel, retasking - High quality 120 dB SNR stereo playback output and 113 dB, SNR recording input - Supports up to 32-Bit/384 kHz playback, Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP, - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover
Battery
Special Features	Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-LED - Q-DIMM - Q-Slot, ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield, - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers
Casing Specification
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Connector & Ports
Display Port (s)	1x DisplayPort
Internal I/O Ports	Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector, Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports, Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers, USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1, ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports, Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper, 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header 1 x COM_DEBUGheader
LAN Port (s)	1 x Intel 2.5Gb Ethernet ASUS LANGuard
RAID	AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
Wireless Communication module	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2
Supported Storage	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

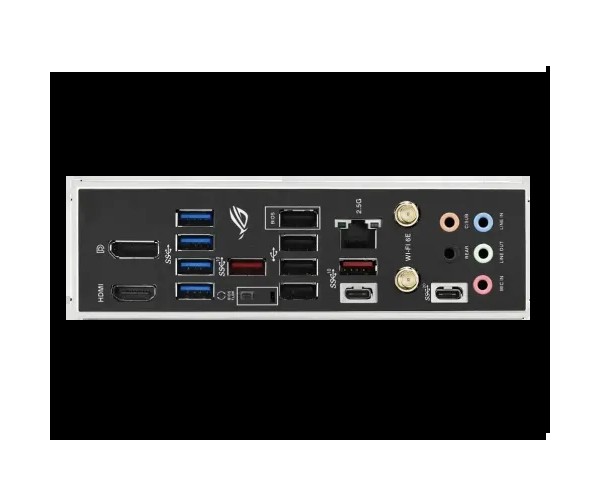

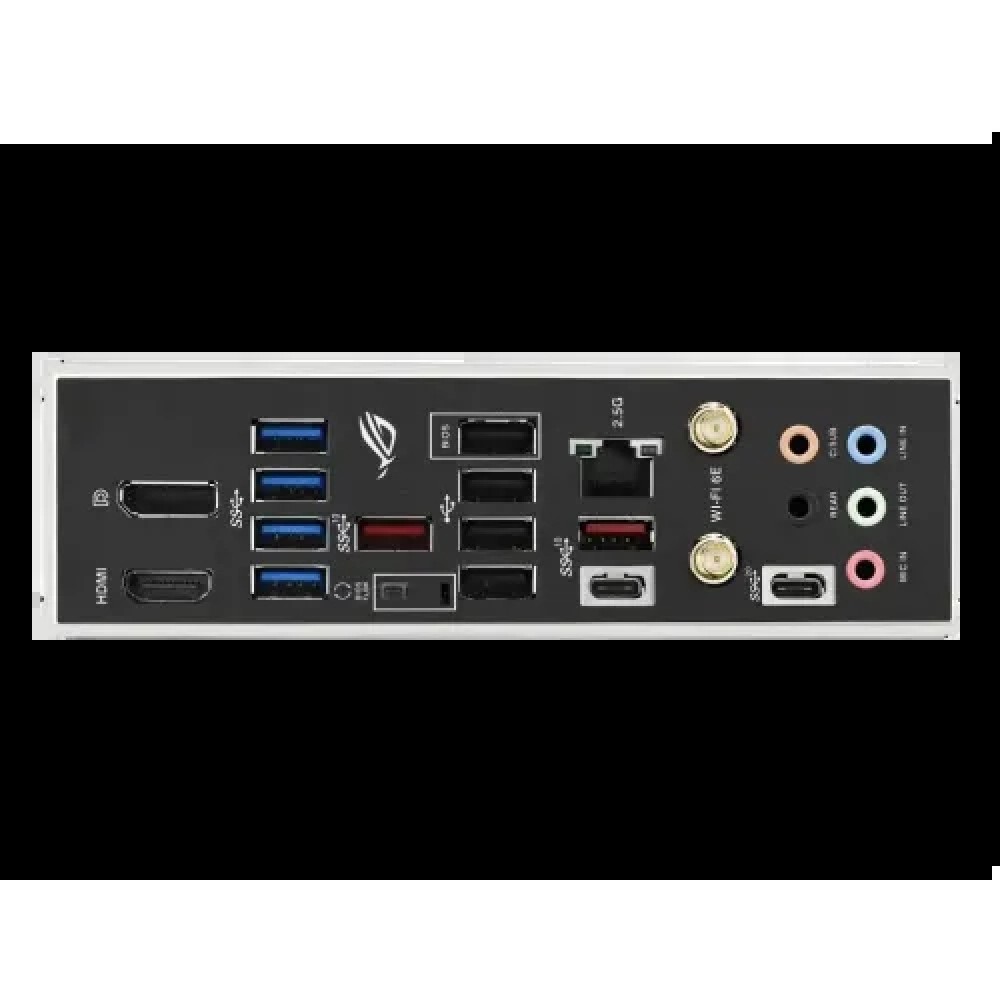

USB (s)	Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C), 4 x USB 3.2 Gen 1 port (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports), 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1
Expansion Slots
PCI	AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)* 2 x PCIe 4.0/3.0 x1 slots, Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II
General
Chipset	AMD B650
Keyboard Specifications
Type	DDR5
Memory
Maximum Memory	128GB
Slots	4 x DIMM
Supported Memory	6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture
Motherboard Basic Information
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Supported CPU	AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors
Others
Bundled Software	ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound - Anti-virus software, ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation, AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey
Technical Specifications
Graphics	1 x DisplayPort 1 x HDMI port Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports max. 4K@60Hz as specified in HDMI 2.1.
Warranty
Warranty	03-Year

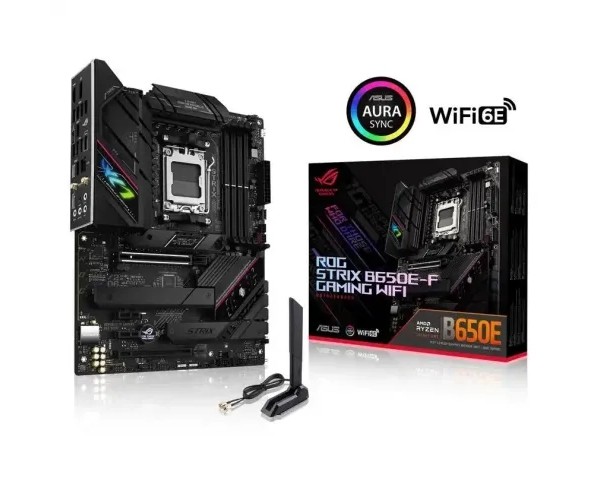

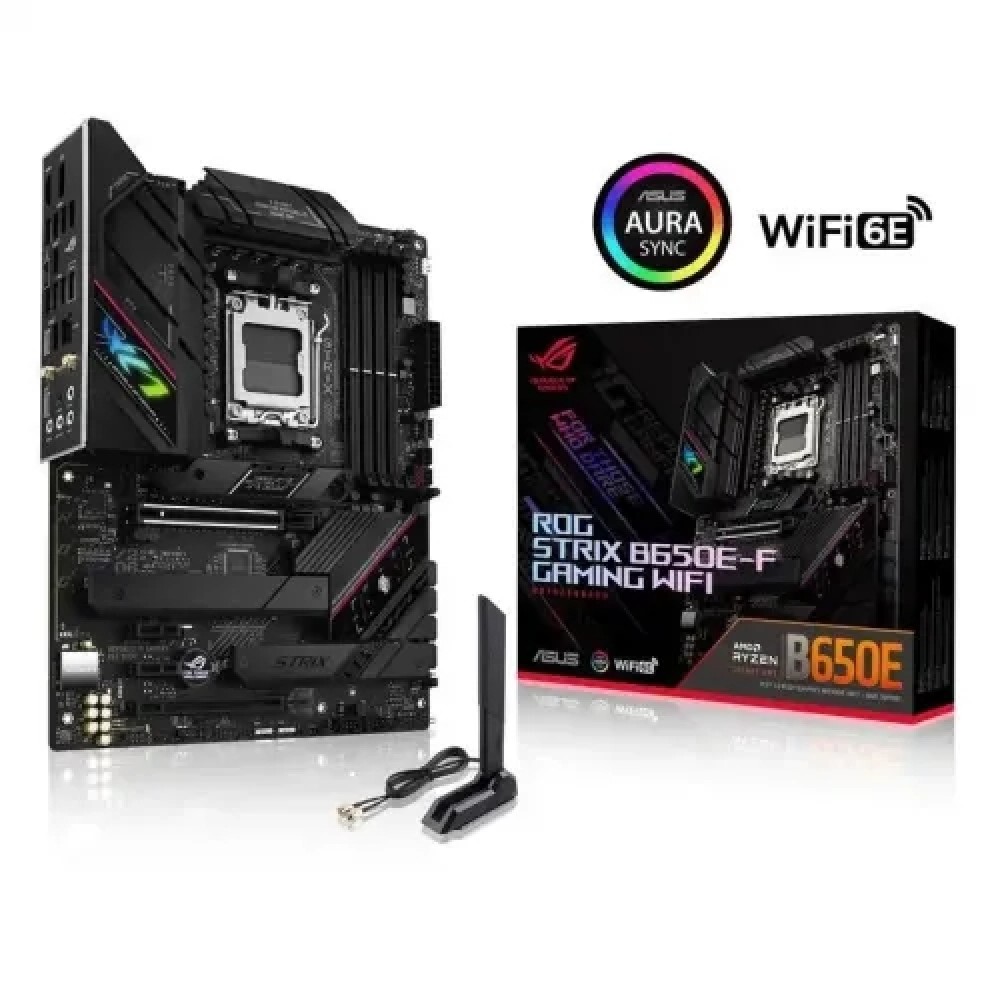

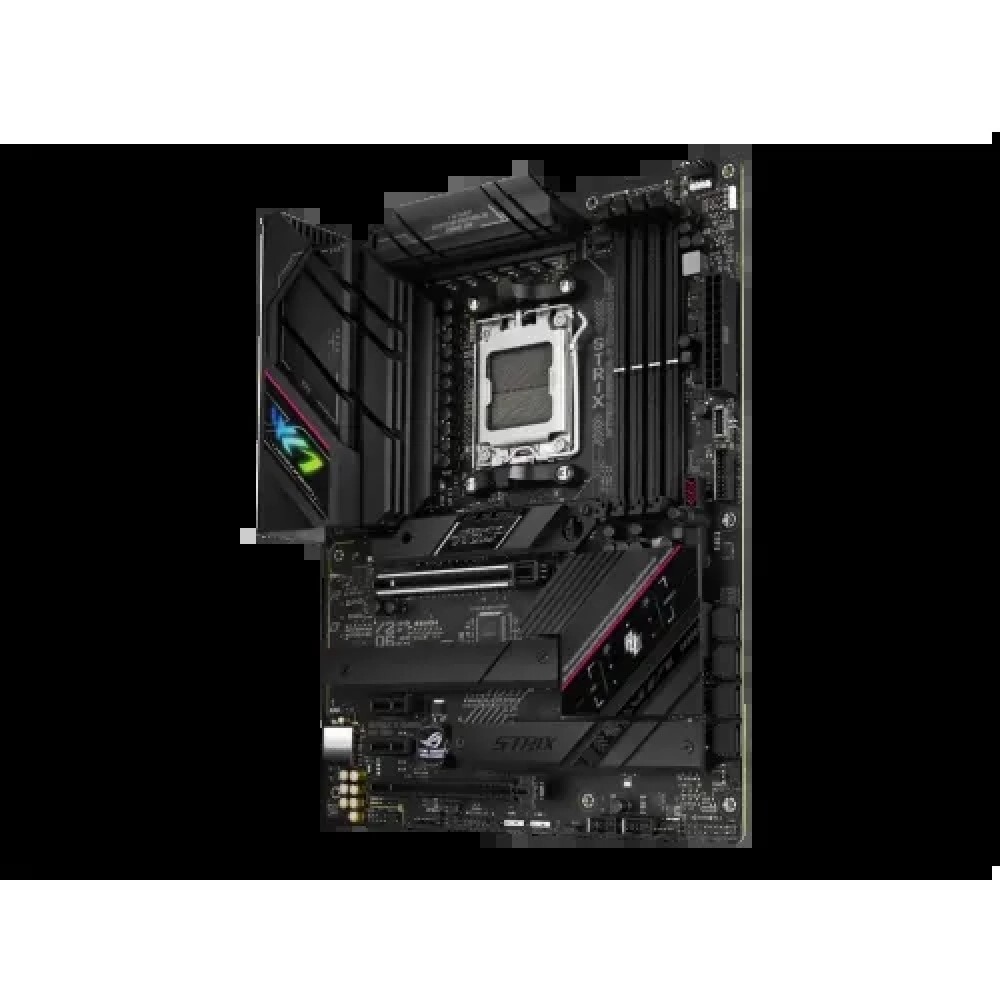

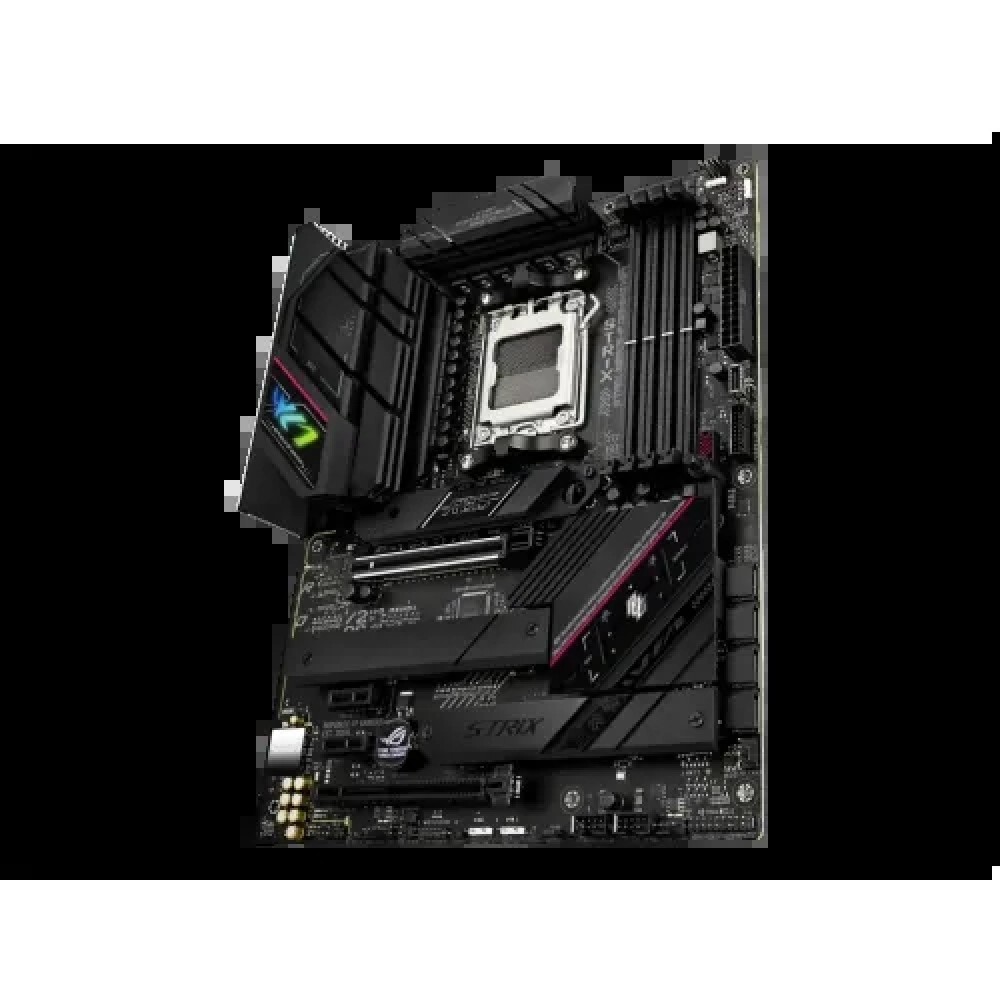

Asus ROG STRIX B650E-F GAMING WIFI DDR5 AM5 ATX Motherboard

This Asus ROG STRIX B650E-F GAMING WIFI DDR5 AM5 ATX Motherboard means the machine is the heart of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, hearty cooling from onboard heatsinks, and advanced power design engineered for the latest Ryzen processors, the ROG Strix B650E-F leaves its competition in the dust. Build your next rig with an AMD Ryzen 7000 Series processor and ROG Strix B650E-F Gaming WiFi to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and an 80MB cache, the AMD Ryzen 7000 Series keeps you ahead of the game. You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe 5.0. AMD Ryzen 8000 & 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO technology.
