Features

    • Model: ROG STRIX B660-G GAMING WIFI
    • 16+1 power stages with ProCool power connectors
    • Integrated I/O cover and VRM heatsinks
    • DDR5 Overclocking Strength
  • Stock: To Be Announced
0৳
Ex Tax: 0৳
  • Please confirm availability before completing your purchase by calling us.
  • The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.
  • We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.
  • We cannot guarantee that the information on this page is 100% accurate. Multimedia Kingdom is not responsible for any results obtained from using this information.
Audio
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback, Audio Features - SupremeFX Shielding Technology - Savitch SV3H712 AMP - Premium audio capacitors - Audio cover
Battery
Special Features Extreme Engine Digi+ -5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot, ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - CPU Socket lever protector -Clear CMOS button, - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s)
Casing Specification
Form Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Connector & Ports
Display Port (s) 1 x DisplayPort
Internal I/O Ports Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector, Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header, Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports, Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 2 x 4-pin Chassis Fan header(s), USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C), 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
LAN Port (s) 1 x Intel 2.5Gb Ethernet
Wireless Communication module Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110, - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode), M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

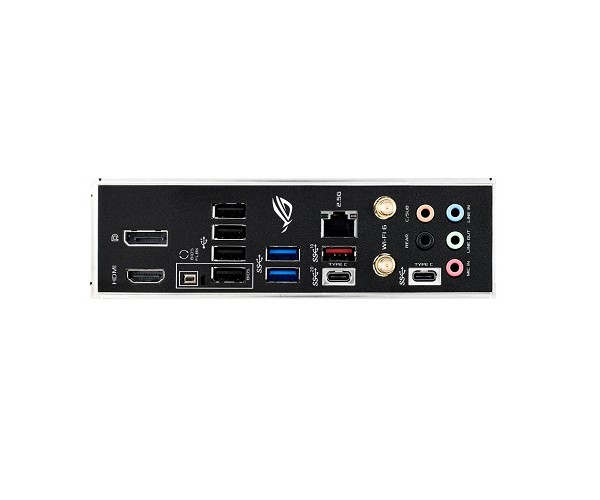

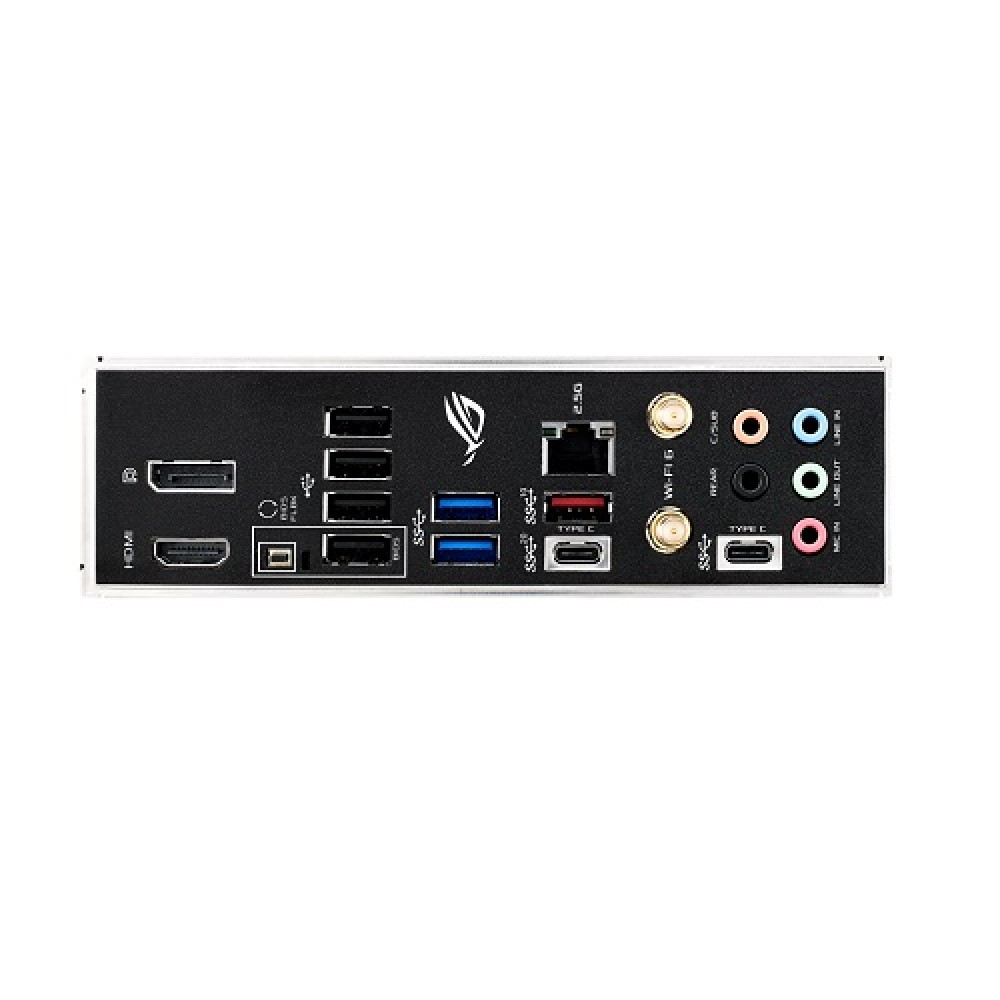

USB (s) Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A), 3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 10-1 pin header + 1 USB 2.0 4 pin hearer support additional 3 USB 2.0 ports
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Expansion Slots
PCI Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) Intel B660 Chipset, 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots
General
Chipset B660
Keyboard Specifications
Type DDR5
Memory
Maximum Memory 128GB
Slots 4 x DIMM
Supported Memory 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered, Memory Dual Channel Memory Architecture OptiMem II
Motherboard Basic Information
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Supported CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium® Gold and Celeron
Others
Bundled Software ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion, - Sonic Radar III - DTS Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial), - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO, EPU DIGI+ VRM Turbo app MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86
Technical Specifications
Graphics 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1), 1 x DisplayPort (Support max. 8K@60Hz as specified in DisplayPort 1.4)

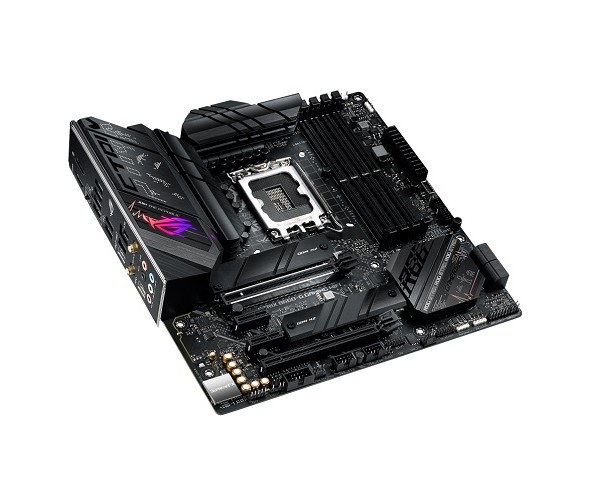

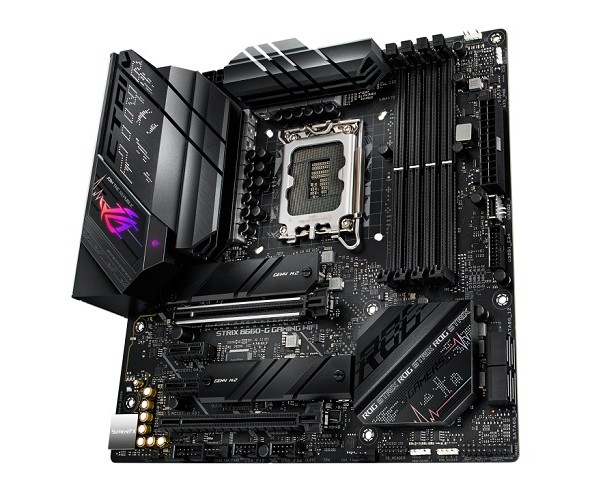

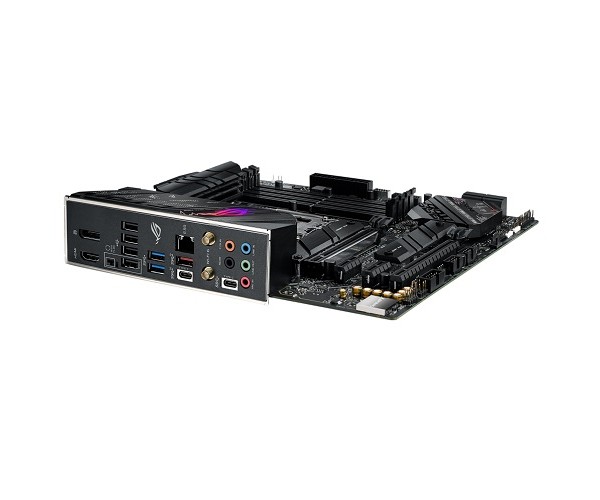

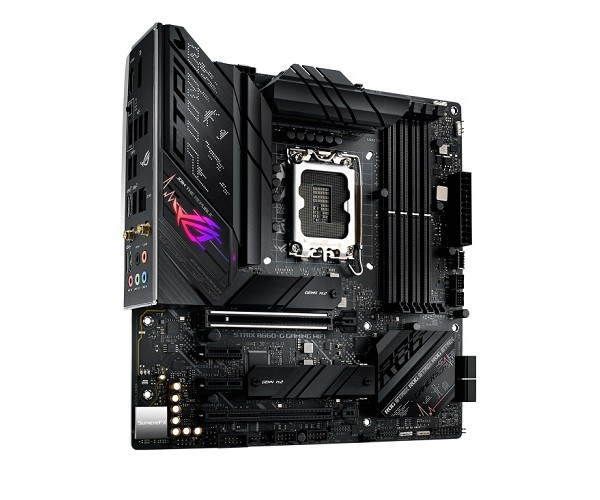

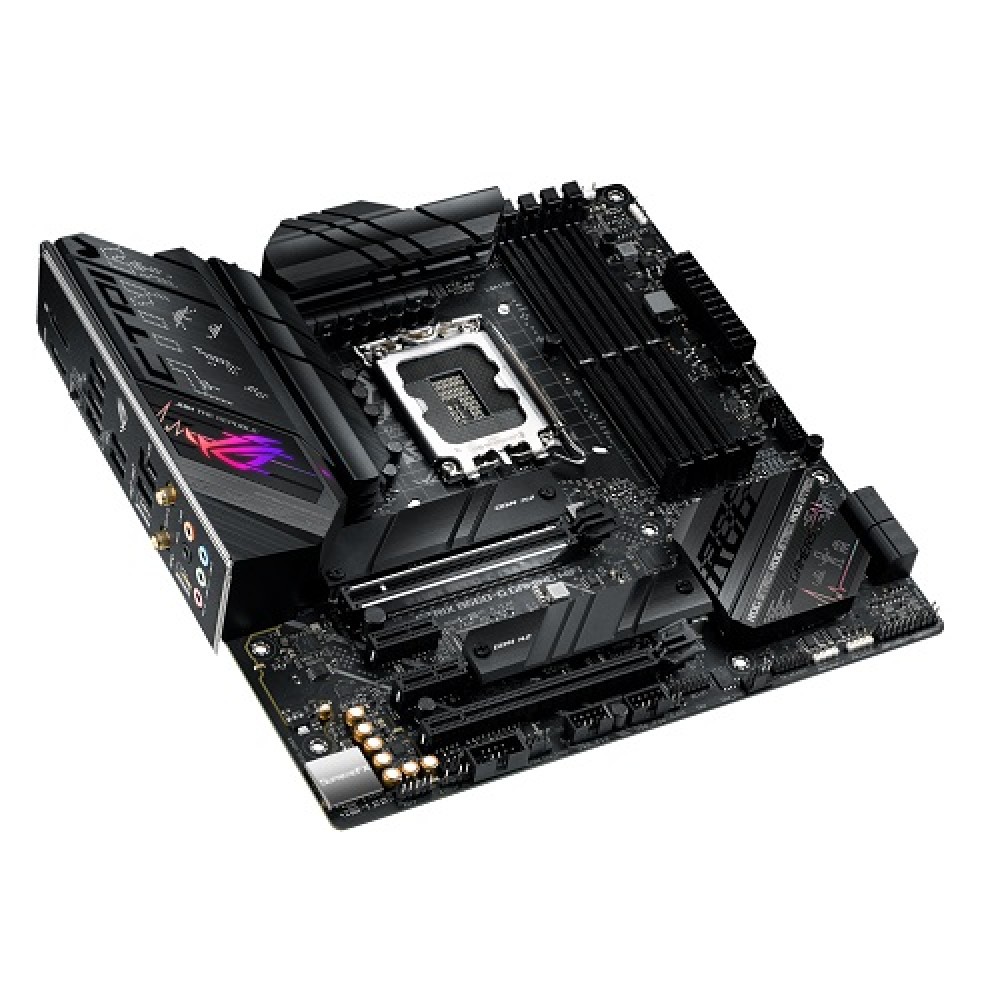

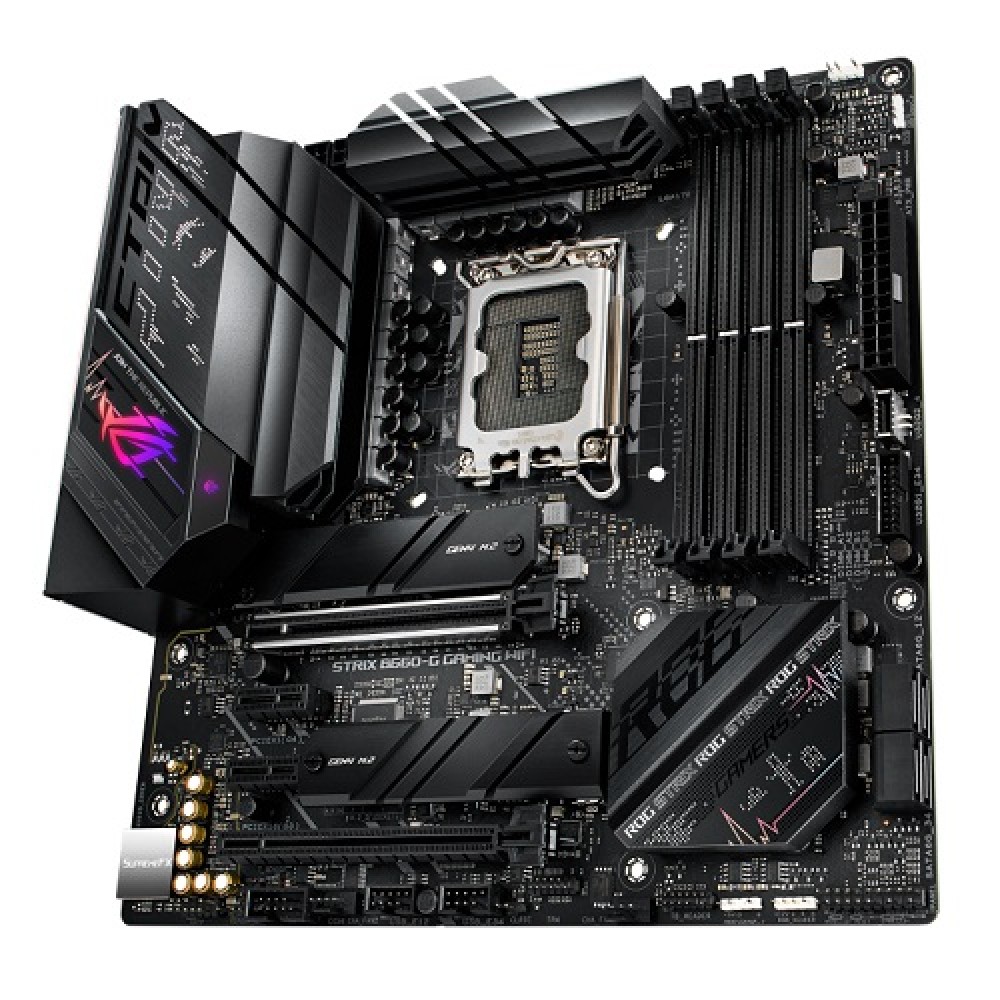

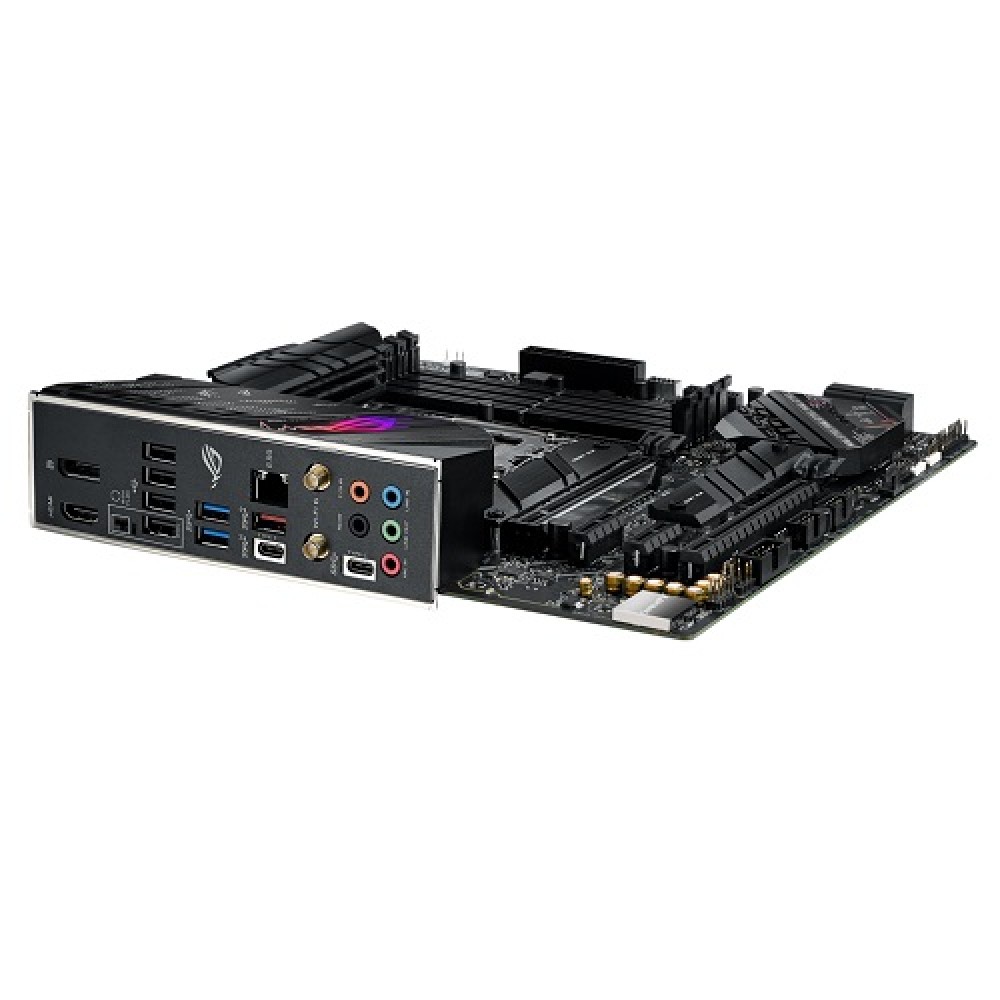

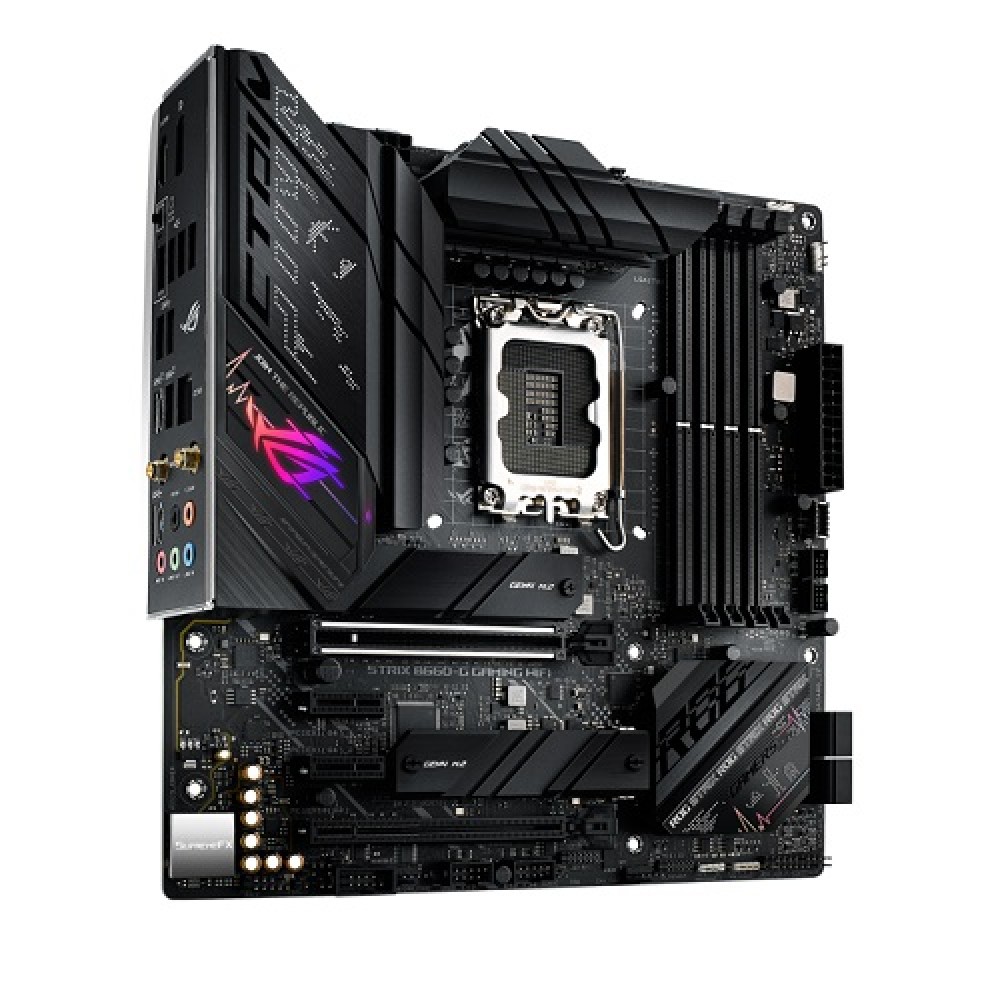

ASUS ROG STRIX B660-G GAMING WIFI DDR5 mATX Motherboard

The Asus ROG STRIX B660-G GAMING WIFI Intel 14th, 13th & 12th Gen Motherboard provides an optimal power solution, 12 + 1 power stages with ProCool power connections, high-quality alloy chokes, and long-lasting capacitors to support multi-priced CPUs. It features an Optimized Thermal Design. Integrated I/O cover, VRM heatsinks with high-conductivity thermal pads, and three integrated M.2 heatsinks. This motherboard offers high-performance networking. Intel WiFi 6 (802.11ax) and Intel Ethernet 2.5Gb with ASUS LANGuard. Better gaming connectivity is provided by the Asus ROG STRIX B660-G GAMING WIFI Intel 12th Gen Motherboard. It supports HDMI 2.1 and DisplayPort 1.4 output, as well as three M.2 slots and USB 3.2 Gen 2x2 Type-C. To ease setup and boost performance, this motherboard has Smart Control, ASUS Exclusive AI cooling, AI networking, and 2-way noise reduction. It boasts an easy-to-use design, an M.2 latch, a pre-mounted I/O shield, a BIOS FlashBack button, and a Q-LED. It boasts unrivaled customizability, ASUS unique Aura Sync RGB lighting, one RGB header, and three Gen 2 addressable headers. The Asus ROG STRIX B660-G GAMING WIFI comes with a 03-years warranty.
