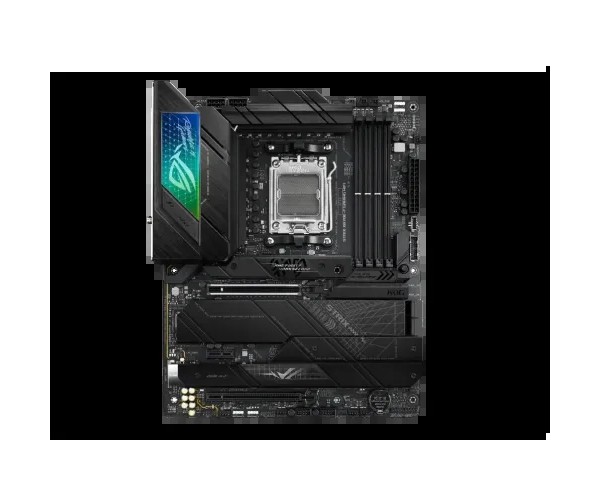

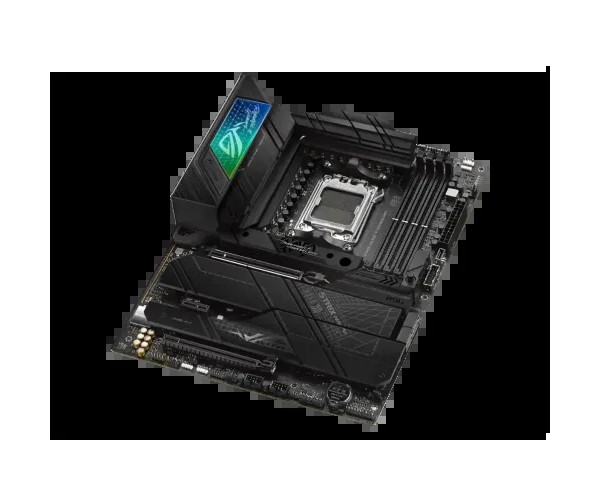

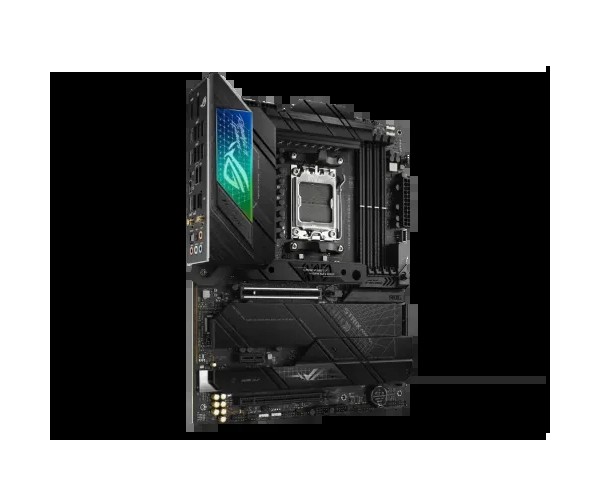

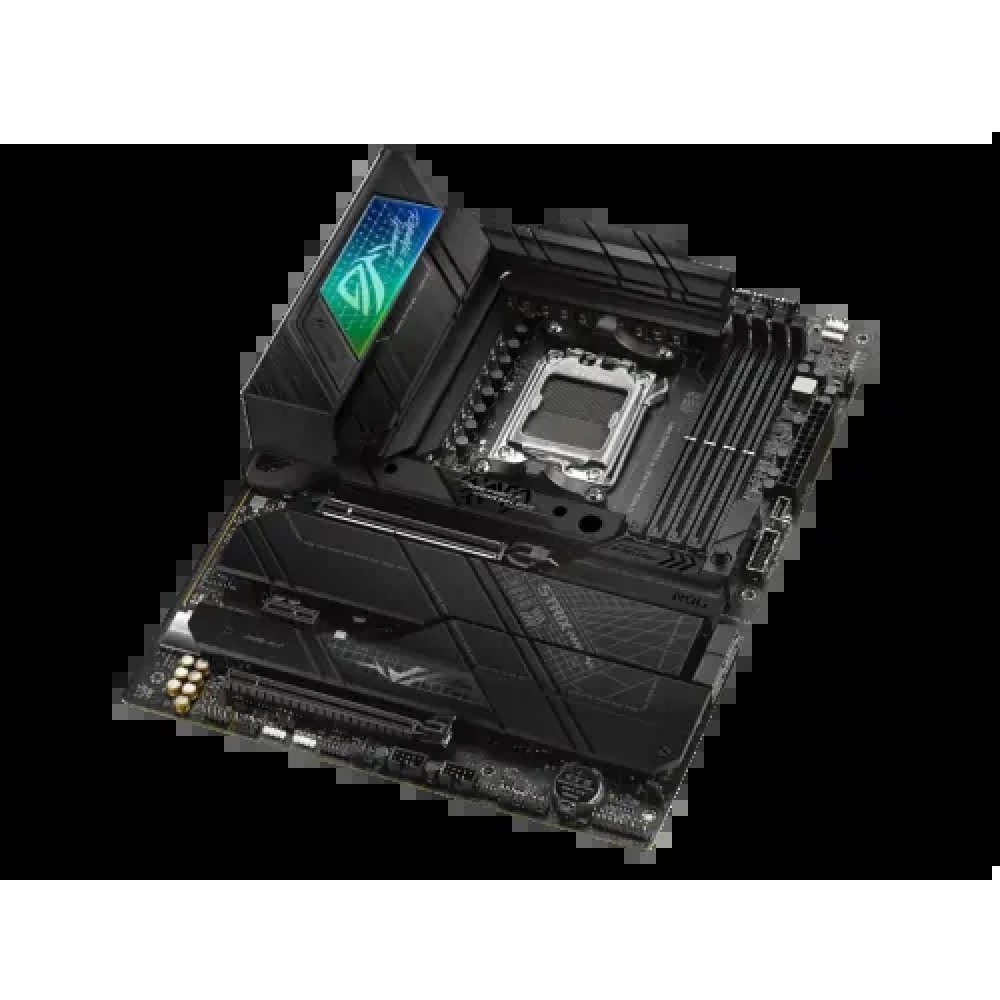

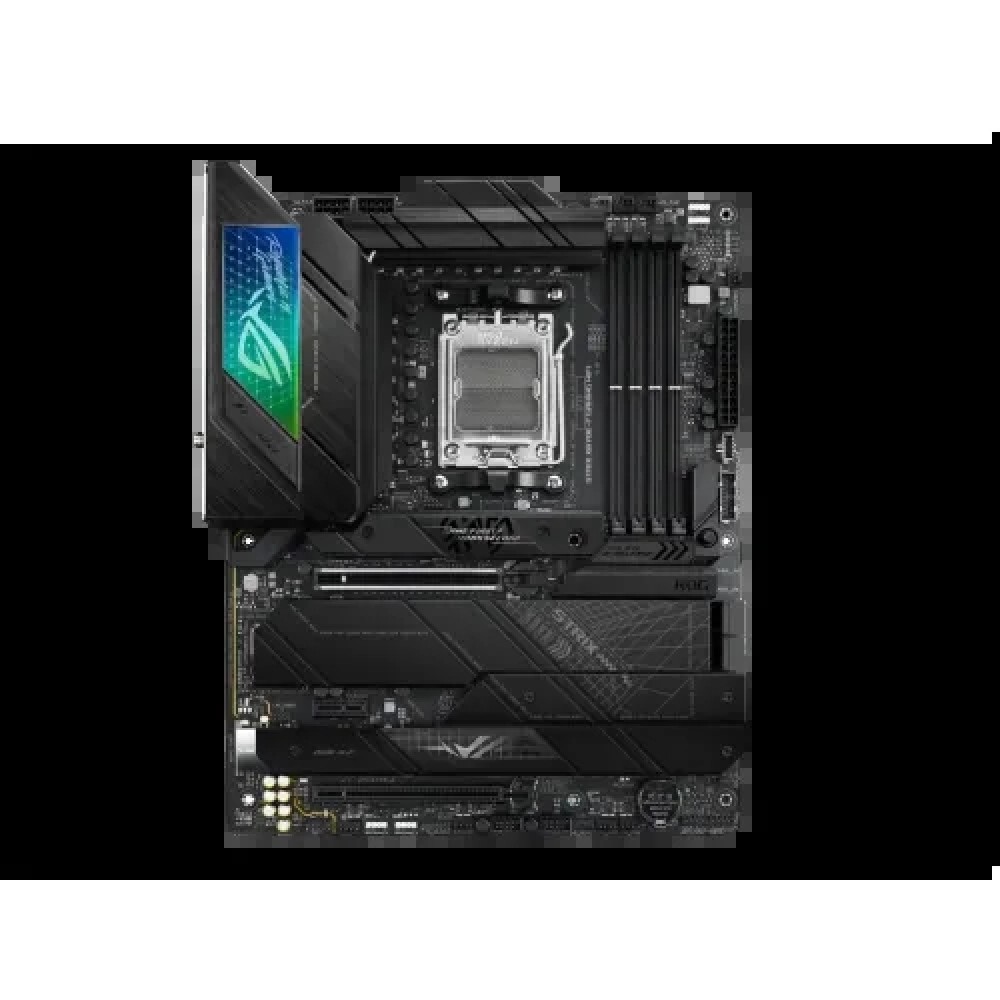

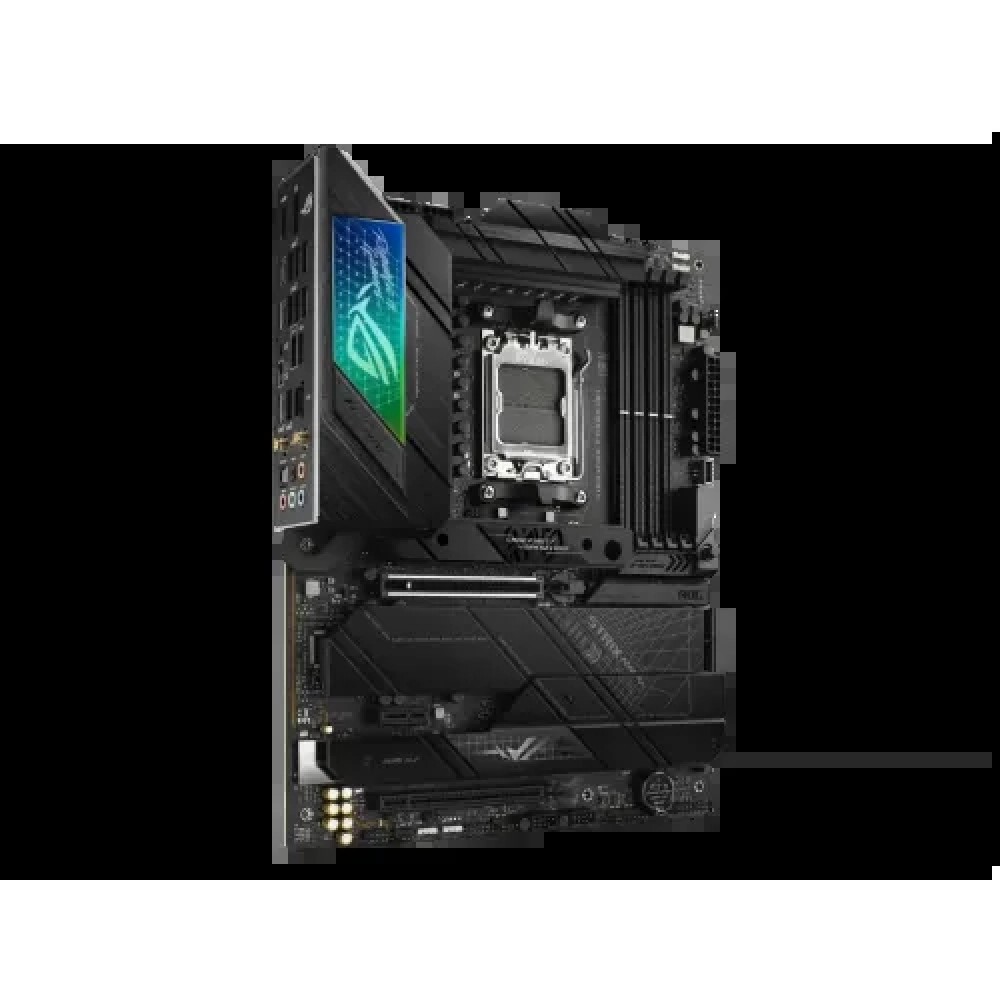

Name: ASUS ROG STRIX X670E-F GAMING/GBL:ROG STRIX X670E-F GAMING WIFI
Brand: Asus
Availability: OutOfStock

Audio
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs
Battery
Special Features	Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design, M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot, ASUS Thermal Solution - M.2 heatsinks - M.2 heatsink backplate - VRM heatsink design, - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II, Pre-mounted I/O shield - SafeSlot - SafeDIMM, Aura Sync- Aura RGB header - Addressable Gen 2 headers
Casing Specification
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Connector & Ports
Display Port (s)	1x DisplayPort
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers, Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors, Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with, Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header, Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x Type-C) 9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 xUSB Type-C) 2 x USB 2.0 ports, 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port, 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button
LAN Port (s)	1 x Intel 2.5Gb Ethernet ASUS LANGuard
RAID	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
Wireless Communication module	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2
Supported Storage	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports, Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
USB (s)	Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C), 9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C) 2 x USB 2.0 ports, Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Expansion Slots
PCI	AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slots (supports x16 mode) AMD X670 Chipset, 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot
General
Chipset	AMD X670
Keyboard Specifications
Type	DDR5
Memory
Maximum Memory	128GB
Supported Memory	Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II, 6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory
Motherboard Basic Information
BIOS	AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Supported CPU	AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Others
Bundled Software	ROG Exclusive Software - GameFirst VI- ROG CPU-Z, Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III, DTS® Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate, AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving, - Two-Way AI Noise Cancellation AI Suite 3 TPU DIGI+ VRM Turbo app PC Cleaner, MyAsus WinRAR UEFI BIOS ASUS EZ DIY, ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode Dynamic OC Switcher FlexKey
Technical Specifications
Graphics	1 x DisplayPort 1 x HDMI port, Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports max. 4K@60Hz as specified in HDMI 2.1.
Warranty
Warranty	3 Years

Asus ROG STRIX X670E-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard

The Asus ROG STRIX X670E-F GAMING WIFI DDR5 Motherboard is the Strix X670E-sneaky A's alter ego. A significant power boost relays its inner monster, providing proprietary ROG overclocking facilities with even more leeway to unleash the potential of AMD Ryzen 7000 Series CPUs. Furthermore, its black PCB and dark metallic heatsinks complement a larger range of system components and build schemes, while a splash of customizable color on its shroud gently signals a ROG presence in your AM5 build. It has Onboard WiFi 6E technology, which uses the newly accessible spectrum in the 6 GHz bands to enable up to seven 160 MHz channels for faster throughput and improved performance in congested wireless situations. Integrated Intel 2.5 Gbps Ethernet speeds up your wired connection to 2.5 times quicker than typical Ethernet connections, allowing for faster file uploads, low-latency gaming, and high-resolution video streaming. The Asus ROG STRIX X670E-F GAMING WIFI DDR5 Motherboard To experience enhanced performance, build your next setup with an AMD Ryzen 7000 Series processor and a ROG Strix X670E-F Gaming WiFi. The AMD Ryzen 7000 Series puts you ahead of the competition with up to 16 "Zen 4" cores and 32 threads, peak frequencies of up to 5.7GHz, and an 80MB cache. The Asus ROG STRIX X670E-F GAMING WIFI DDR5 Motherboard comes standard with AMD Socket AM5, you'll also have access to additional capabilities for gamers, such as DDR5 memory speed and PCIe 5.0 improved bandwidth. AMD Ryzen 7000 Series CPUs and AMD socket AM5 motherboards are overclockable, allowing you to customize your experience. Overclock your DDR5 memory with AMD EXPO technology to get even greater performance.
