Name: ASUS TUF GAMING X670E-PLUS WIFI
Brand: Asus
Availability: OutOfStock

Audio
Audio	- Premium audio capacitors, - Dedicated audio PCB layers, - Audio cover - Unique de-pop circuit, Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs, - Internal audio Amplifier to enhance the highest quality sound for headphones and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, - High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*, Audio Features - Audio shielding
Battery
Special Features	Aura Sync - Aura RGB header - Addressable Gen 2 headers, ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot, TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard, Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O, ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header, ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM
Casing Specification
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Connector & Ports
Display Port (s)	1x DisplayPort
Internal I/O Ports	Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header, Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports, Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors, 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header, 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button, Internal I/O Connectors Fan and Cooling related, 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header, USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports, Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C) 5 x USB 3.2 Gen 1 ports (5 x Type-A)
LAN Port (s)	1 x Intel 2.5Gb Ethernet ASUS LANGuard
RAID	AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
Wireless Communication module	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band Bluetooth v5.2
Supported Storage	AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), AMD X670 Chipset, M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**, M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
USB (s)	4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C), 5 x USB 3.2 Gen 1 ports (5 x Type-A), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 3 x USB 2.0 headers support additional 6 USB 2.0 ports, Front USB (Total 9 ports), 1 x USB 3.2 Gen 2 connector (supports USB Type-C), Rear USB (Total 10 ports), 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
Expansion Slots
PCI	AMD Ryzen 7000 Series Desktop Processors -1 x PCIe 5.0 x16 slot, AMD X670 Chipset -1 x PCIe 4.0 x16 slot (supports x4 mode) -1 x PCIe 4.0 x4 slots
General
Chipset	AMD X670
Keyboard Specifications
Type	DDR5
Memory
Maximum Memory	128GB
Slots	4 x DIMM
Supported Memory	OptiMem II, Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO), 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC Un-buffered Memor
Motherboard Basic Information
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Supported CPU	AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Others
Bundled Software	ASUS Exclusive Software Armoury Crate - AURA Sync, - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation, AI Suite 3 - Easy Optimization - DIGI+ VRM - Turbo app - PC Cleaner, TUF GAMING CPU-Z DTS Audio Processing MyAsus, Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY, ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey
Technical Specifications
Graphics	1 x DisplayPort 1 x HDMI port Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports max. 4K@60Hz as specified in HDMI 2.1.
Warranty
Warranty	3 Years

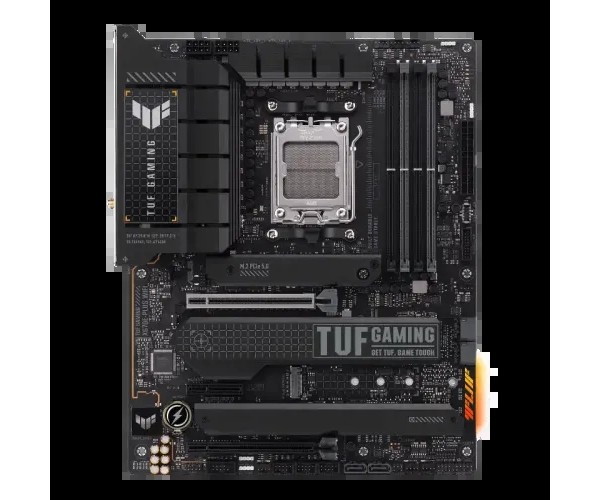

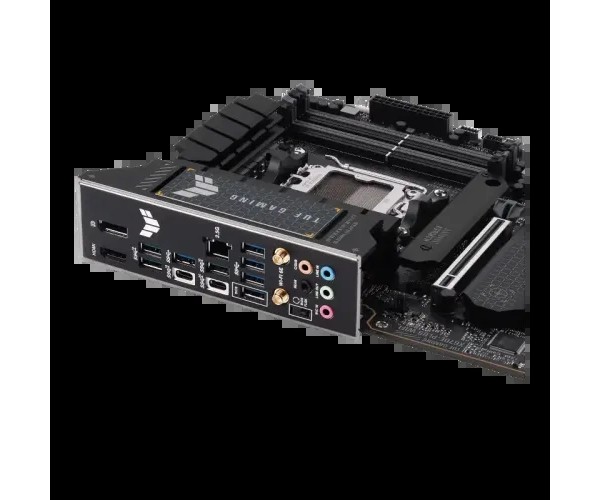

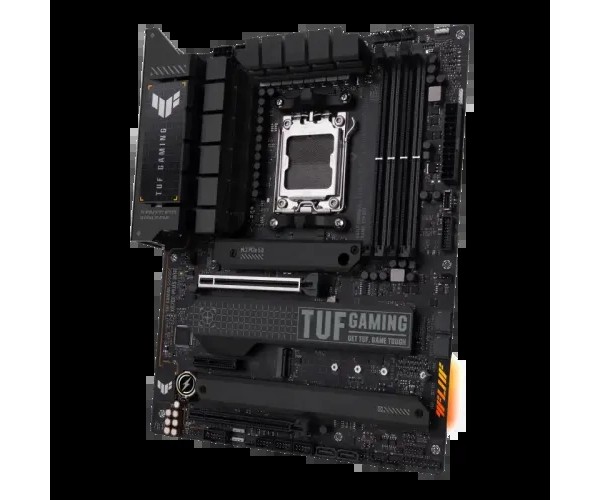

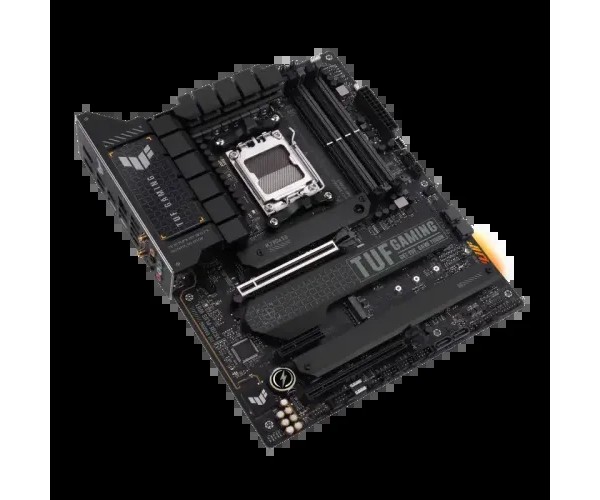

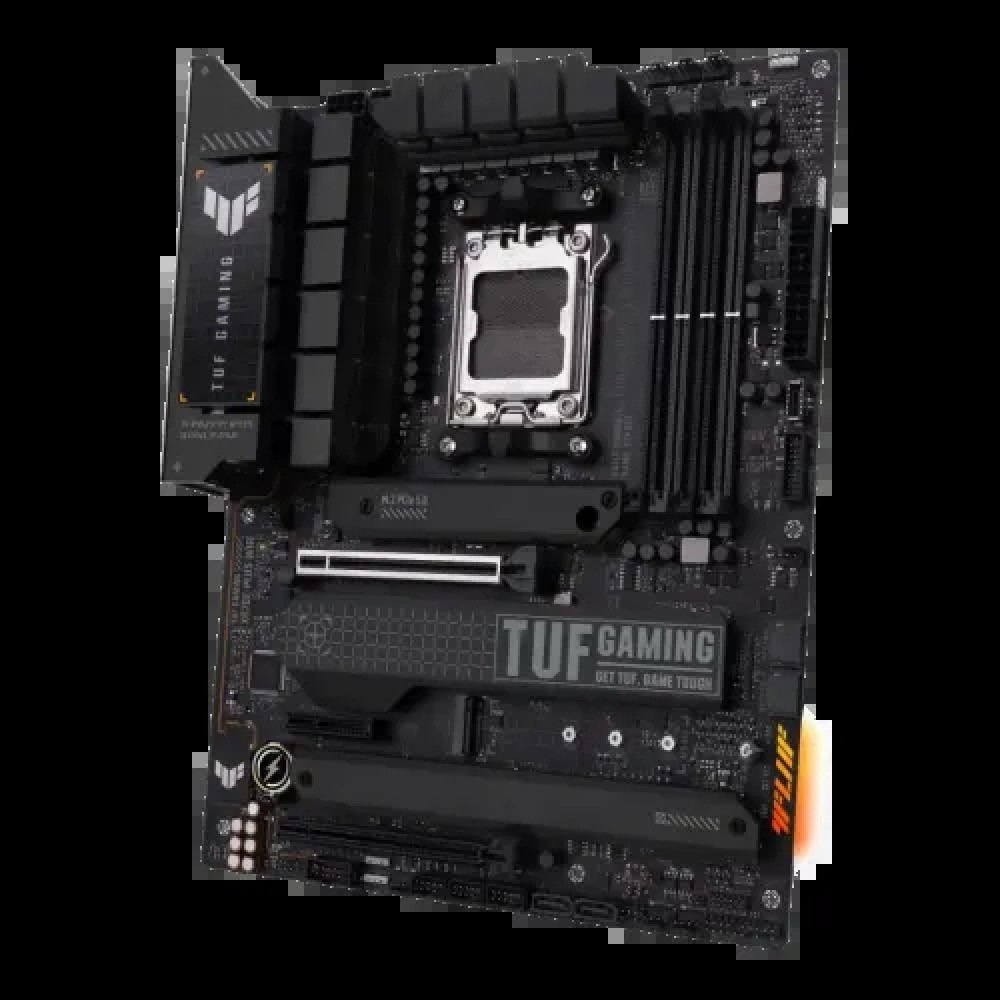

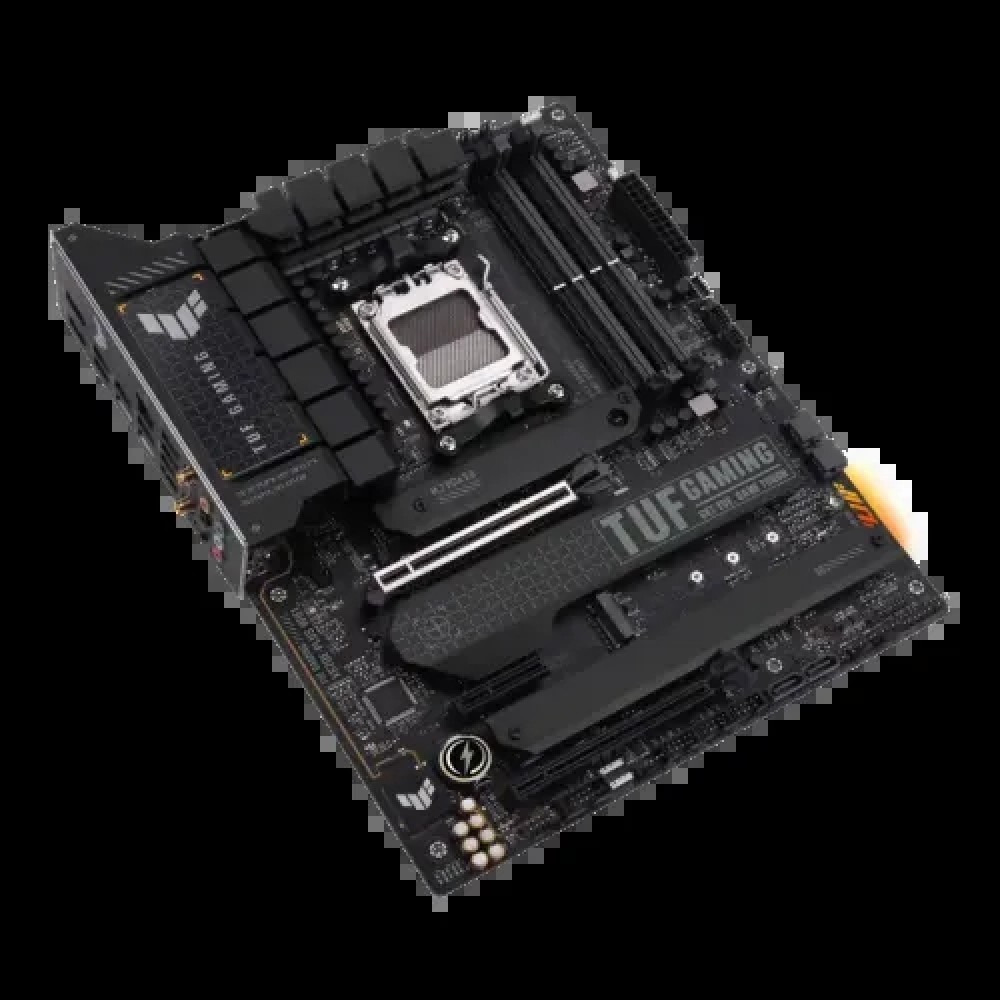

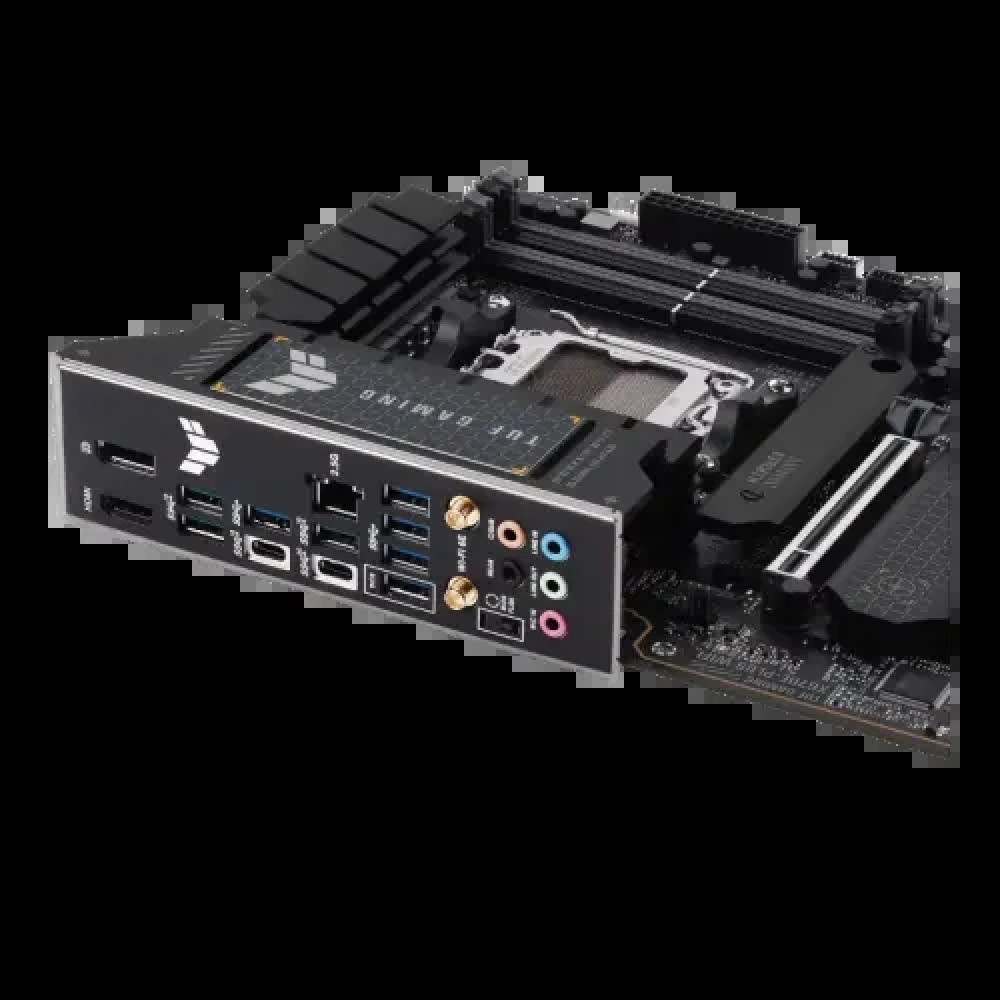

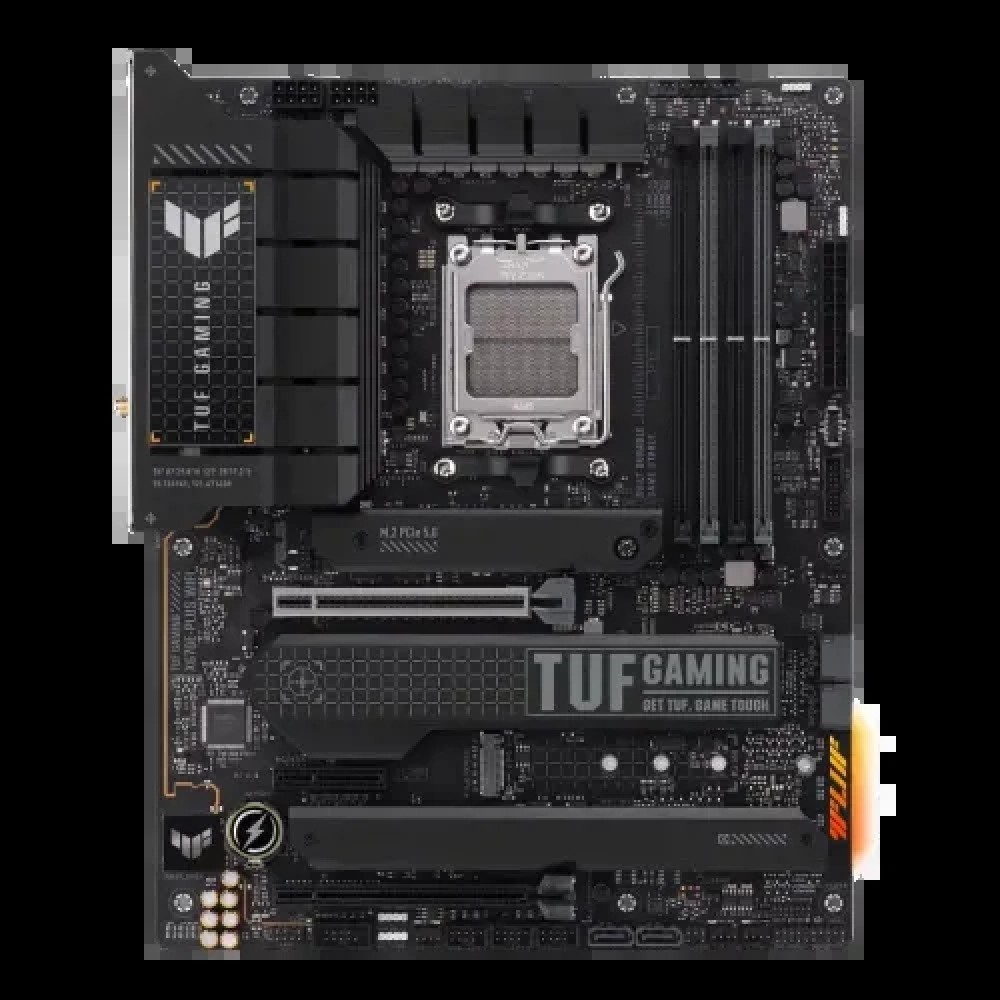

Asus TUF GAMING X670E-PLUS WIFI DDR5 AM5 ATX Motherboard

The Asus TUF GAMING X670E-PLUS WIFI Motherboard combines all of the core characteristics of the most recent AMD Ryzen 7000-series CPUs with game-ready features and proven sturdiness. This motherboard exceeds expectations with rock-solid and reliable performance for marathon gaming, thanks to military-grade components, an enhanced power solution, and a sophisticated cooling system. TUF GAMING motherboards are also subjected to extensive durability testing to guarantee that they can withstand situations that might cause other motherboards to fail. This model has tough off-black and geometric design elements to highlight the durability and stability that characterize the TUF GAMING line. Each of the 14+2 power stages is rated at 70 amps and combines high-side and low-side MOSFETs as well as drivers into a single package to give power, efficiency, and steady performance for all compatible AMD CPUs. TUF GAMING X670E motherboards offer a feature-rich high-performance gaming solution that includes ultrafast networking for smoother online gaming, exquisite audio with positional cues for FPS gaming, and integrated RGB lighting that syncs with associated gear to customize your gaming environment. To experience superior performance, build your next setup using an AMD Ryzen 7000 Series processor and ASUS TUF GAMING motherboards. The AMD Ryzen 7000 Series puts you ahead of the game with up to 16 "Zen 4" cores and 32 threads, peak frequencies of up to 5.7GHz, and an 80MB cache. With AMD Socket AM5, you'll also have access to additional capabilities for gamers, such as DDR5 memory speed and PCIe 5.0 improved bandwidth. AMD Ryzen 7000 Series CPUs and AMD socket AM5 motherboards are overclockable, allowing you to customize your experience. Overclock your DDR5 memory with AMD EXPO technology to get even greater performance.
