Asus TUF Gaming Z690-Plus

Asus TUF Gaming Z690-Plus
Asus TUF Gaming Z690-Plus
Asus TUF Gaming Z690-Plus
Asus TUF Gaming Z690-Plus
Asus TUF Gaming Z690-Plus
Asus TUF Gaming Z690-Plus
N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.
Asus TUF Gaming Z690-Plus

Features

    • Model: TUF Gaming Z690-Plus D4
    • 14+1 DrMOS, six-layer PCB, ProCool sockets
    • PCIe 5.0, USB 3.2 Gen2x2 Type-C
    • Intel 2.5 Gb Ethernet and TUF LANGuard
  • Stock: To Be Announced
Asus Asus
Based on 0 reviews. - Write a review

Cash Discount Price

32,499৳
Check available payment method
Contact for bulk quantity: 01755532345

Monthly EMI Price

2,960৳
Total 35,518৳ need to pay in 12 month.
Please Click here to view 27 banks EMI Plans
Ex Tax: 32,499৳
Add to Cart
Buy Now Buy Now
Add to Wish List Compare this Product
Payment Details
Contacts
Whatsapp

  • Please confirm availability before completing your purchase by calling us.
  • The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.
  • We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.
  • We cannot guarantee that the information on this page is 100% accurate. Multimedia Kingdom is not responsible for any results obtained from using this information.
Battery
Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O, ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design, ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers
Casing Specification
Form Factor ATX 30.5cm x 24.4cm
Connector & Ports
Display Port (s) 1 x HDMI port
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers, Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports, USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header, 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header
LAN Port (s) 1 x Intel 2.5Gb Ethernet TUF LANGuard
Supported Storage Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode, Intel Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports, * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.

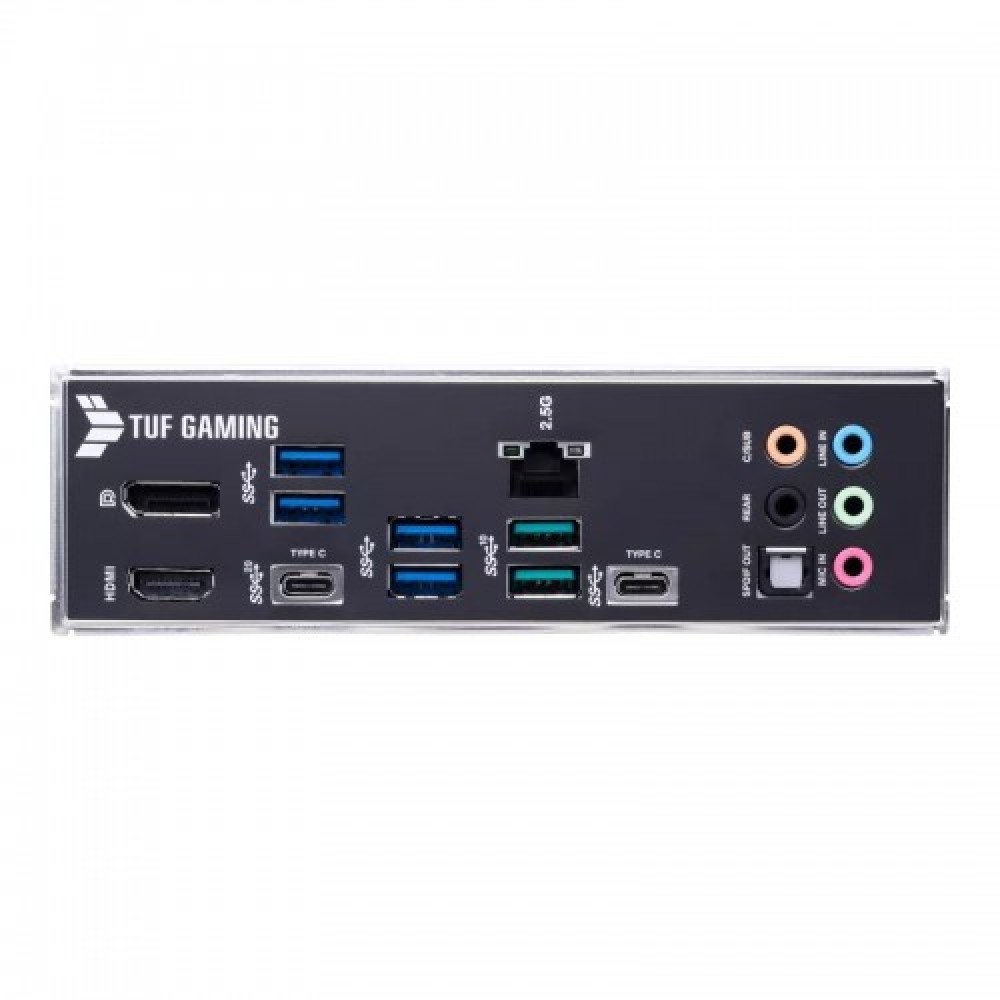

USB (s) Rear USB:Total 8 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C), Front USB:Total 7 ports 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Expansion Slots
M.2 Socket Supports 4 x M.2 slots
PCI Intel 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel Z690 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x4 slot 2 x PCIe 3.0 x1 slots
General
Chipset Z690
Keyboard Specifications
Type DDR4
Motherboard Basic Information
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Supported CPU Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processors, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Others
Bundled Software ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility, TurboV EVO EPU DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR, UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Technical Specifications
Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Memory
Maximum Memory 128GB
Slots 4 x DIMM
Supported Memory 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/, 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture, Supports Intel Extreme Memory Profile (XMP) OptiMem II
Audio
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback, Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio Cover

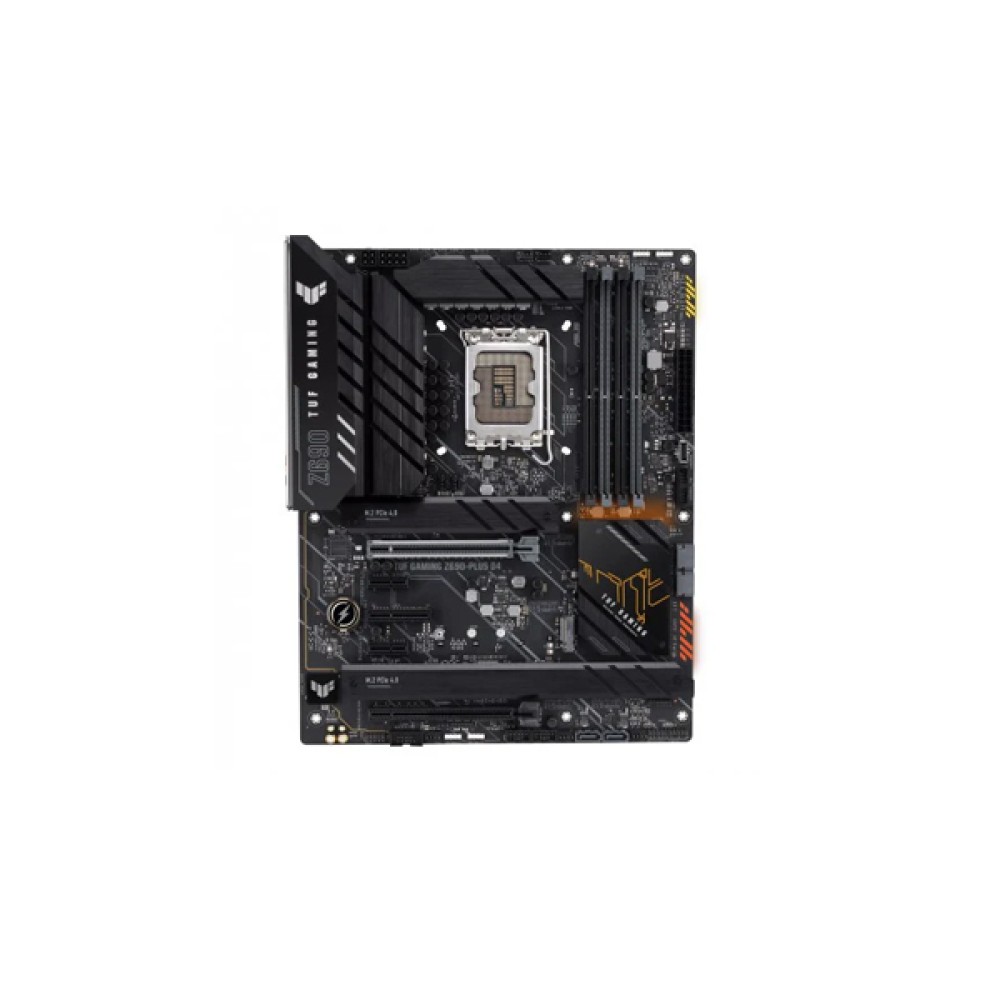

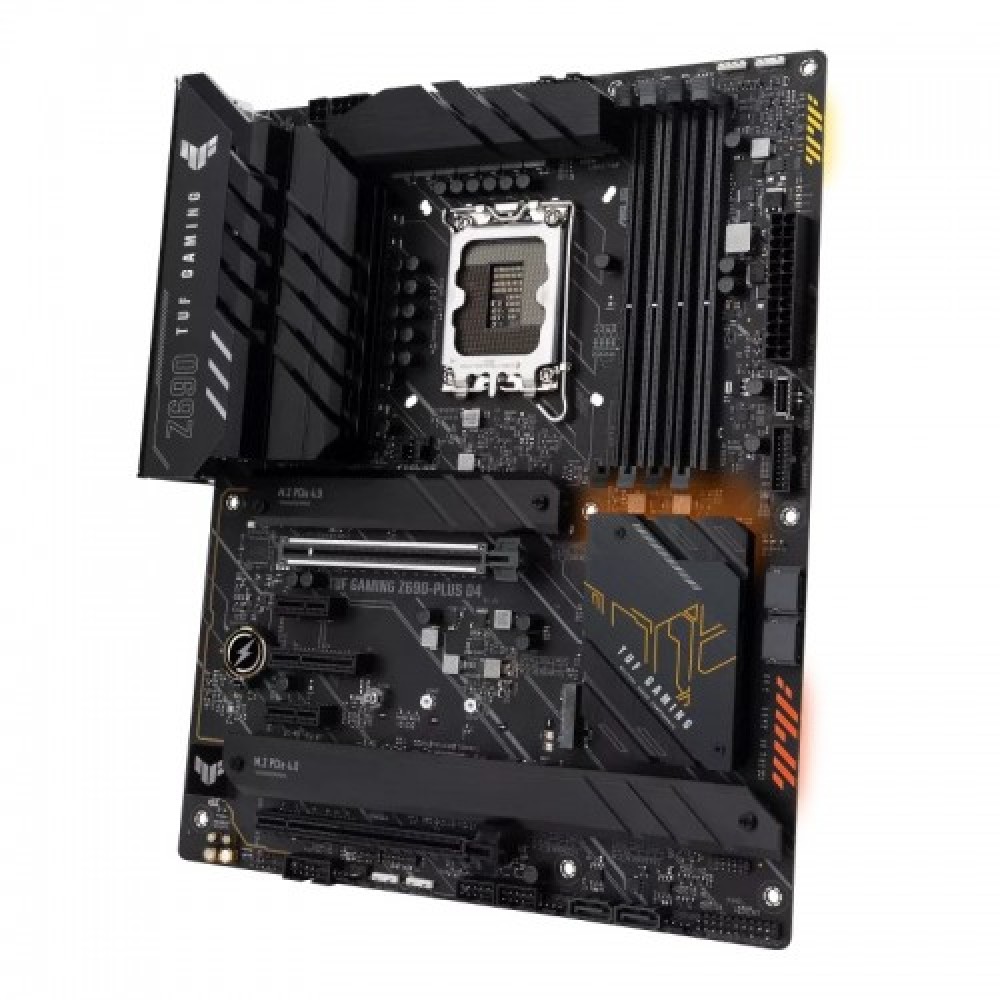

Asus TUF Gaming Z690-Plus D4 ATX Motherboard

The Asus TUF Gaming Z690-Plus D4 Motherboard features an Intel LGA 1700 socket Ready for 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. Asus Prime series motherboards are expertly engineered to unleash the full potential of 12th-generation Intel processors. It comes with an enhanced power solution. 14+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes, and durable capacitors for stable power delivery. It features an enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate. The Asus TUF Gaming Z690-Plus D4 is supported with PCIe 5.0, USB 3.2 Gen2x2 Type-C, front USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support. Asus 5-Way Optimization makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig. Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. Asus TUF Gaming Z690-Plus D4 offers a total of four M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives. The Asus TUF Gaming Z690-Plus D4 comes with 3 years of warranty.
