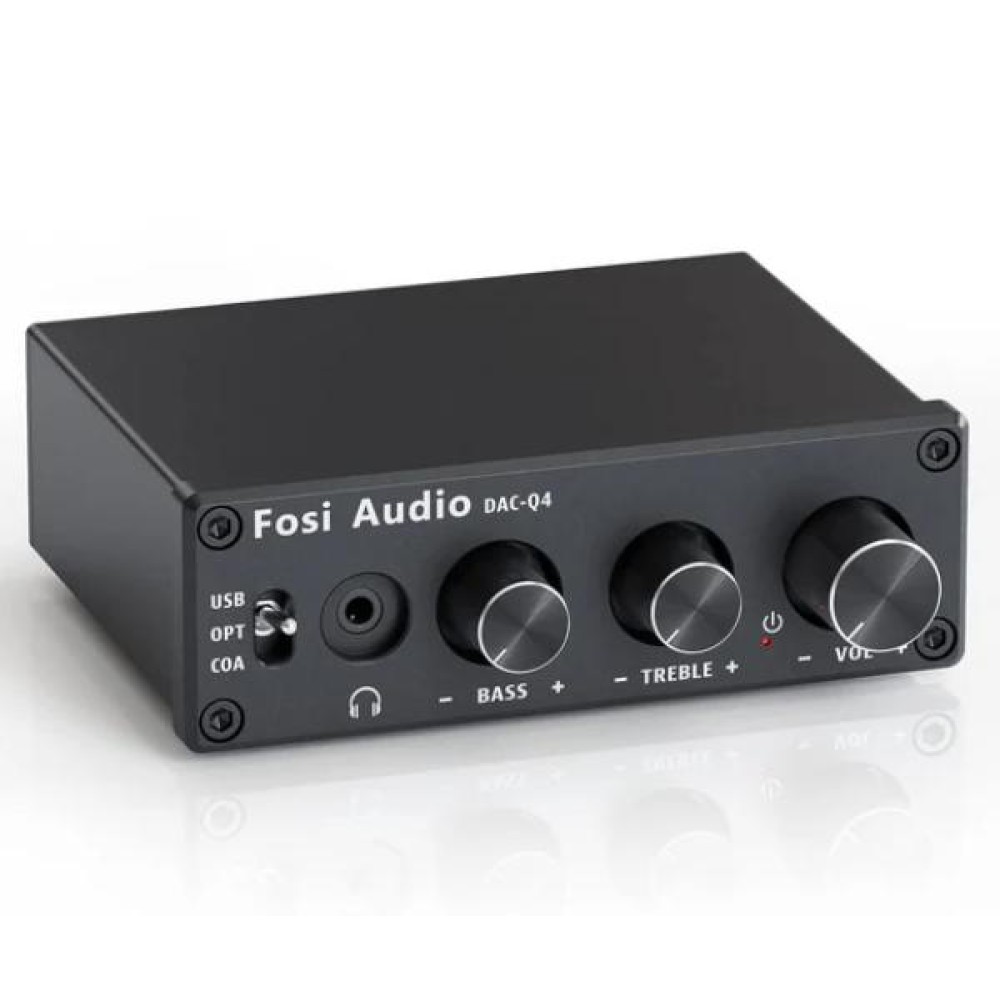

Fosi Audio Q4 Desktop DAC Headphone Amplifier

Fosi Audio Q4 Desktop DAC Headphone Amplifier

The Fosi Audio Q4 Desktop DAC Headphone Amplifier is a compact digital-to-analog converter (DAC), headphone amplifier, and preamplifier designed for desktop and home audio systems. Developed by Fosi Audio, the Q4 combines USB, optical, and coaxial digital inputs with a 3.5mm headphone output and RCA line output, allowing users to connect computers, TVs, and other digital audio sources to headphones, powered speakers, or an external amplifier.

What Is Fosi Audio Q4 Desktop DAC Headphone Amplifier?

The Fosi Audio Q4 is a desktop DAC and headphone amplifier built around the Q4 model platform. Its primary job is to convert digital audio signals into analog audio while also providing headphone amplification and convenient volume, bass, and treble controls.

According to Fosi Audio's official documentation, the Q4 supports USB, optical, and coaxial inputs, along with a 3.5mm headphone output and RCA output. Its optical and coaxial inputs support up to 24-bit/192kHz audio, while USB input supports up to 24-bit/96kHz.

Where Does This Product Fit in Its Category?

The Q4 sits within the desktop DAC, headphone amplifier, and digital audio converter category. Unlike a conventional speaker amplifier that is designed primarily to drive passive speakers, a DAC headphone amplifier focuses on processing digital audio and delivering an amplified analog signal to headphones or connected audio equipment.

Its multiple digital inputs make it particularly suitable for desktop computers, laptops, TVs, gaming setups, and compact home audio systems. Multimedia Kingdom also categorizes this type of equipment within its broader amplifier range, which includes DACs, headphone amplifiers, and DAC/headphone amp combinations.

For a broader selection, explore the Amplifier category or browse the complete Fosi Audio collection at Multimedia Kingdom.

Core Technology

The Q4 combines several stages of digital and analog audio processing in a compact desktop unit. Digital signals can enter through USB, optical, or coaxial S/PDIF connections before being converted into analog audio for headphones or RCA-connected equipment.

Fosi Audio specifies a chipset configuration of SA9023 + CS8412 + 97220 + NE5532. The manufacturer also lists a signal-to-noise ratio of at least 105dB and total harmonic distortion of no more than 0.01%, providing useful reference points when evaluating its audio circuitry.

The Q4 also incorporates adjustable bass and treble controls, with the manufacturer specifying a high/low sound adjustment range of ±6dB. This allows users to make simple tonal adjustments without relying entirely on software equalizers.

Important Features

• Multiple digital inputs: USB, optical, and coaxial connectivity gives the Q4 flexibility across different audio sources.
• 24-bit/192kHz optical and coaxial support: The Q4 can process high-resolution digital audio through its optical and coaxial inputs. USB input supports up to 24-bit/96kHz.
• 3.5mm headphone output: The built-in headphone amplifier is designed for headphones in the 16Ω–200Ω impedance range.

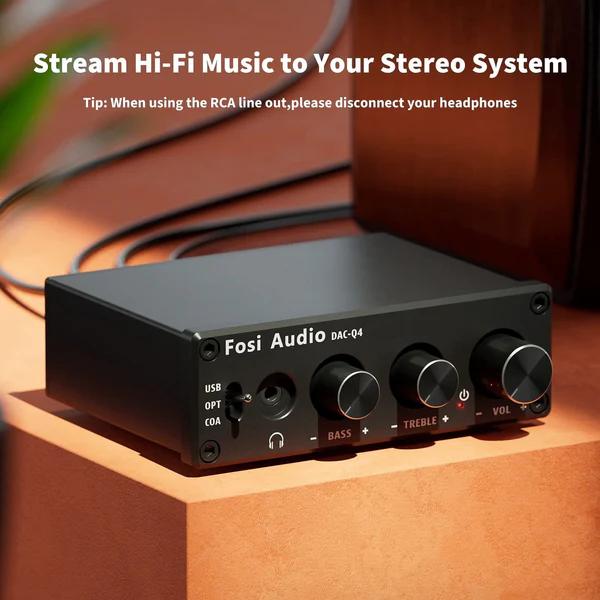

• RCA output: RCA connectivity allows the Q4 to function as a source component or volume-control/preamp stage for compatible powered speakers or amplifiers.
• Bass and treble adjustment: ±6dB adjustment provides straightforward control over the tonal balance.
• Compact desktop design: Measuring approximately 73.5 × 98 × 33mm without knobs and terminals, the Q4 is designed to occupy limited desk space.
• Simple setup: Fosi Audio describes the Q4 as a plug-and-play digital audio adapter that does not require special software, an app, or a dedicated driver for normal use.

Product Strengths

The main appeal of the Q4 is its combination of DAC conversion, headphone amplification, preamp functionality, multiple digital inputs, and physical tone controls in a small desktop enclosure. Instead of using separate devices for basic digital conversion and headphone amplification, users can handle these functions through one unit.

Its optical and coaxial 24-bit/192kHz support also makes it useful for users who want to connect compatible high-resolution digital sources without relying exclusively on USB.

Visit Multimedia Kingdom's Other Related Products & Category

Multimedia Kingdom offers the Fosi Audio Q4 Desktop DAC Headphone Amplifier for customers looking for a compact DAC and headphone amplification solution in Bangladesh. Multimedia Kingdom has also announced its authorized distributor relationship with Fosi Audio in Bangladesh.

For users building a speaker-based system alongside the Q4, the Fosi Audio V1.0G Mini Stereo Audio Amplifier is a relevant companion product because it is designed to drive passive speakers and can form part of a compact desktop or bookshelf audio setup.

You can also explore Multimedia Kingdom's wider Audio Devices category for headphones, speakers, DACs, amplifiers, and other audio equipment. The Fosi Audio Amplifier category is another useful destination for comparing Fosi Audio amplification products.

FAQs

Is the Fosi Audio Q4 a DAC or a headphone amplifier?

It is both. The Q4 functions as a digital-to-analog converter and includes a built-in headphone amplifier, while also providing RCA output for compatible external audio equipment.

What inputs does the Fosi Audio Q4 support?

The Q4 supports USB, optical, and coaxial digital inputs. It provides 3.5mm headphone and RCA outputs.

What headphone impedance is compatible with the Q4?

Fosi Audio specifies a headphone matching impedance of 16Ω–200Ω. Actual performance can also depend on headphone sensitivity and design.

Does the Q4 support 24-bit/192kHz audio?

Yes. Optical and coaxial inputs support up to 24-bit/192kHz, while PC-USB input supports up to 24-bit/96kHz according to the manufacturer's specifications.

Can I use the Fosi Audio Q4 with a TV?

Yes, when the TV provides a compatible optical or coaxial digital audio output. Optical connection is one of the Q4's supported input methods.

Is the Q4 suitable for a PC or laptop?

Yes. USB connectivity allows it to function as an external DAC and headphone amplifier for compatible computers. Fosi Audio lists support for Windows, Mac, and Linux systems.
