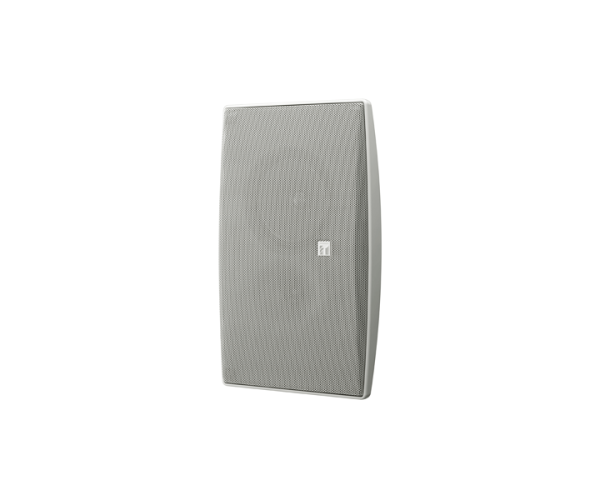

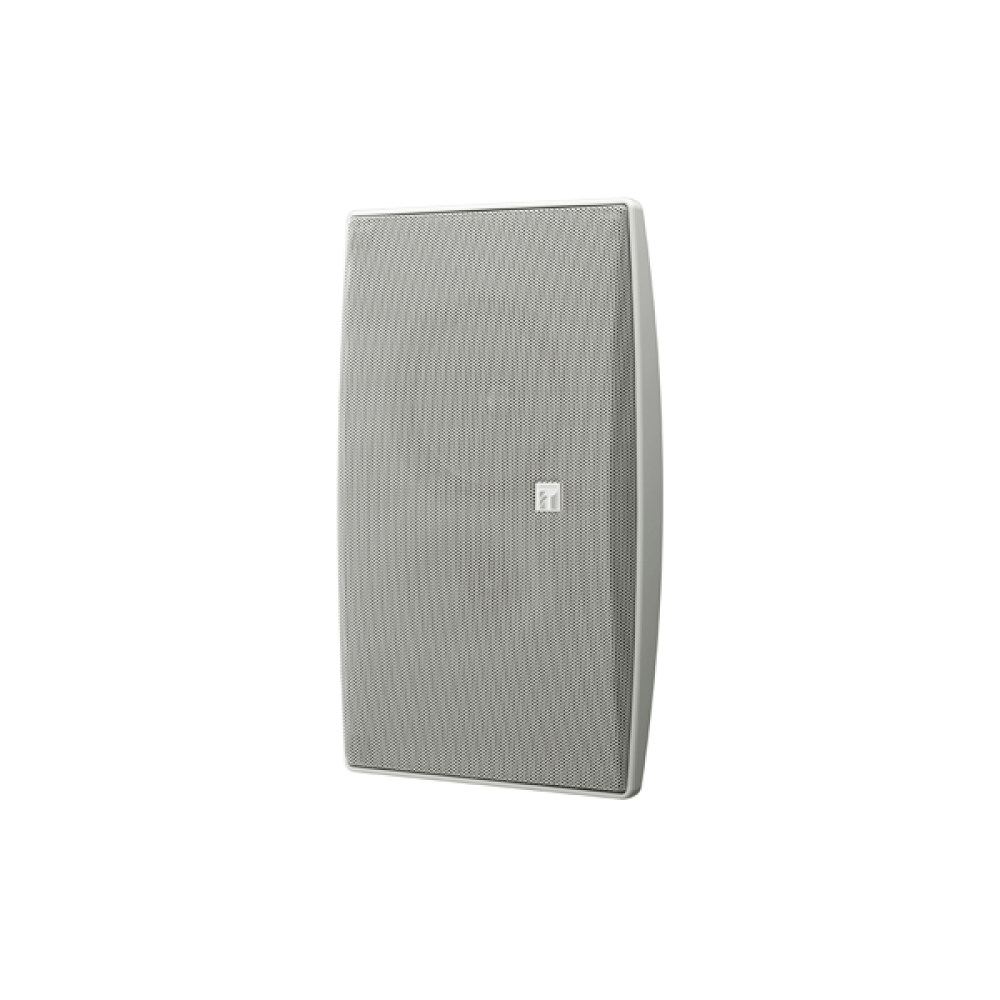

Toa BS-634 Wall Mount Speaker
The Toa BS-634 can be installed easily on the wall with help of the plug-in speaker receptacle.
The TOA BS-634 is a 6 watt, 5" wall mounted cabinet speaker designed for use only on 70 / 100 volt line high impedance distributed sound systems. Ideal for background music systems and paging.
The BS634 loudspeaker is easy to install due to being supplied with a plug-in speaker receptacle and M4 screw terminal input connectors.
The slim design cabinet can be mounted either horizontally or vertically (the TOA logo rotates to suit) and is available in either off-white or silver.
| Rated Input | 6 W |
| Rated Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W) |
| Sensitivity | 90 dB (1 W, 1 m) |
| Frequency Response | 120 Hz - 18 kHz |
| Speaker Component | 12 cm (5") cone-type |
| Input Connector | M4 screw terminal, distance between barriers: 11 mm (0.43") |
| Finish | Enclosure: HIPS resin (fire resistant grade UL94 V-0 or its equivalent), off-white (RAL 9010 or equivalent color) Net: Surface-treated steel plate, off-white (RAL 9010 or equivalent color), paint |
| Dimensions | 208 (W) × 327 (H) × 79 (D) mm (8.19" × 12.87" × 3.11") |
| Weight | 1.3 kg (2.87 lb) |
| Accessory | Speaker receptacle …1, Wall mounting screw …2 |
