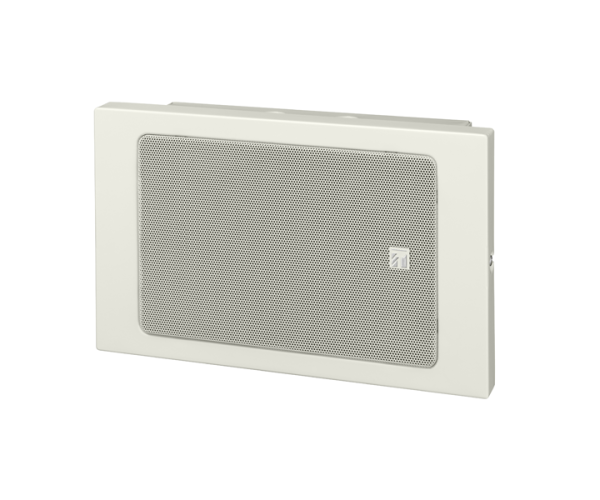

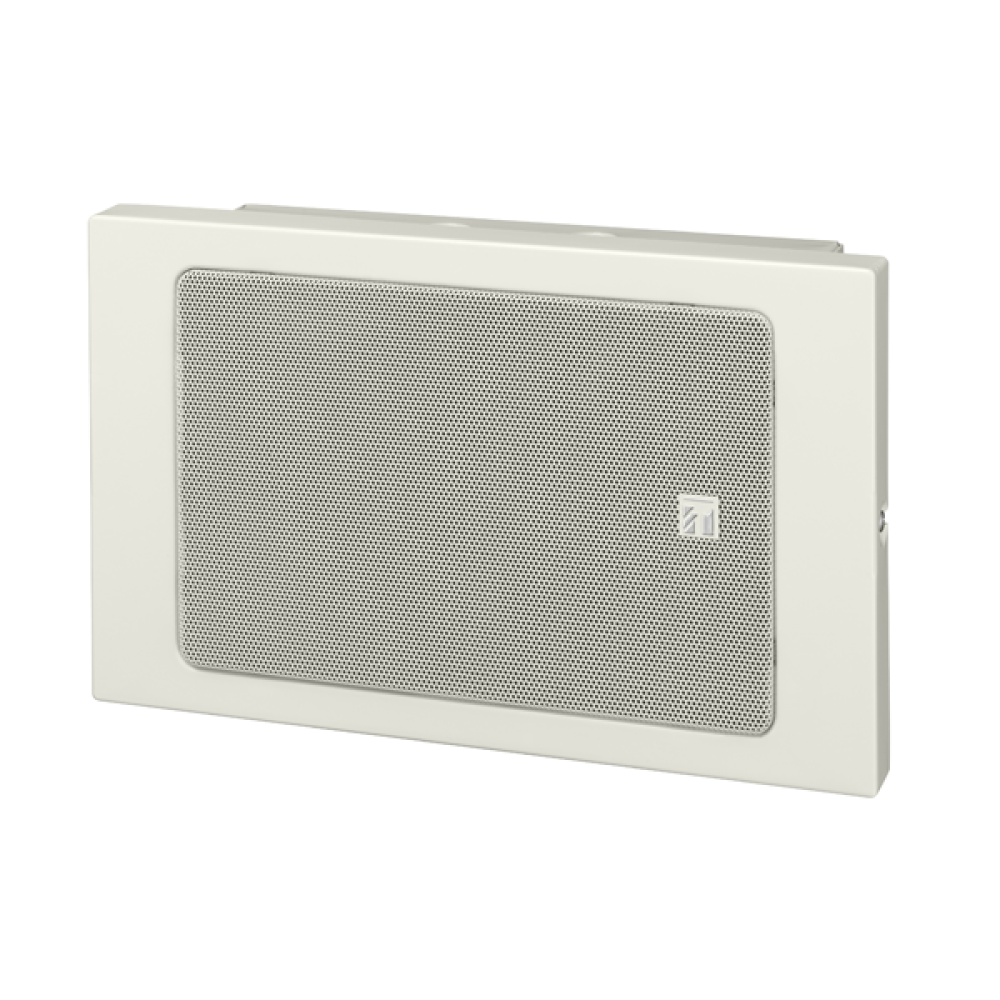

Toa BS-680U Wall Mount Speaker
Constructed with metal cabinet, the speaker is ideal for use in a voice alarm system. Can be surface- or flush- mounted to the wall. Either concealed in-wall wiring or exposed wiring can be used for speaker cable connection. The speaker structure of direct wall-mounting with screws prevents the speaker from falling easily even if an outward force is applied to. The input impedance can be easily changed by changing the tap position of the transformer. The built-in 16 cm double cone speaker unit delivers high quality sound. The push-in type input connector makes cable connections easy and allows bridge wiring. The Toa BS-680U is certified to UL 1480 UUMW and ULC-S541 standards, and for indoor use only.
Specifications:
| Rated Input |
6 W |
| Rated Impedance |
70 V line: 830 Ω (6 W), 1.67 kΩ (3 W), 5 kΩ (1 W)
25 V line: 105 Ω (6 W), 210 Ω (3 W), 650 Ω (1 W) |
| Sensitivity |
94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise) |
| Frequency Response |
150 Hz - 20 kHz (peak -20 dB) |
| Speaker Component |
16 cm (6") double cone-type |
| UL Code |
UL 1480 UUMW, ULC-S541 |
| Applicable Cable |
Solid copper wire: φ0.8 - φ2.0 mm (AWG 20 - 12)
2
Stranded copper wire: 0.5 - 2.0 mm (AWG 20 - 14) |
| Connection |
Push-in connector (bridging terminal) |
| Operating Temperature |
-10 ℃ to 50 ℃ (14 ゜F to 122 ゜F) |
| Finish |
Baffle, Cabinet: Steel plate, white (RAL 9010 equivalent), powder coating
Grille: Surface-treated steel plate mesh, white (RAL 9010 equivalent), paint |
| Dimensions |
310 (W) × 190 (H) × 90 (D) mm (12.2" × 7.48" × 3.54") |
| Weight |
2.6 kg (5.73 lb) |
| Accessory |
Rubber grommet …2, Speaker mounting screw (4 × 16) …4,
Sponge tape …1 sheet (2 pieces) |
