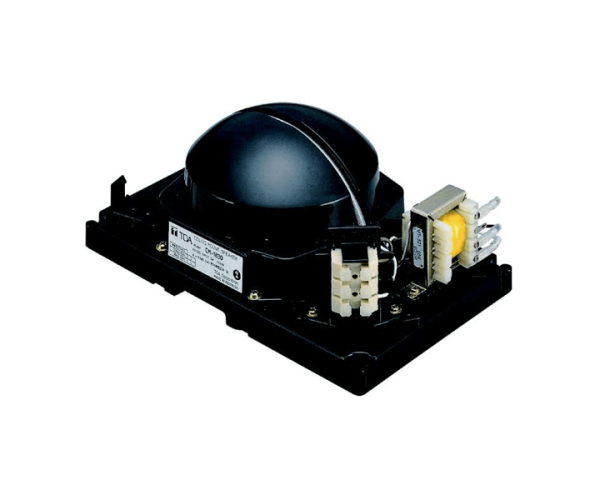

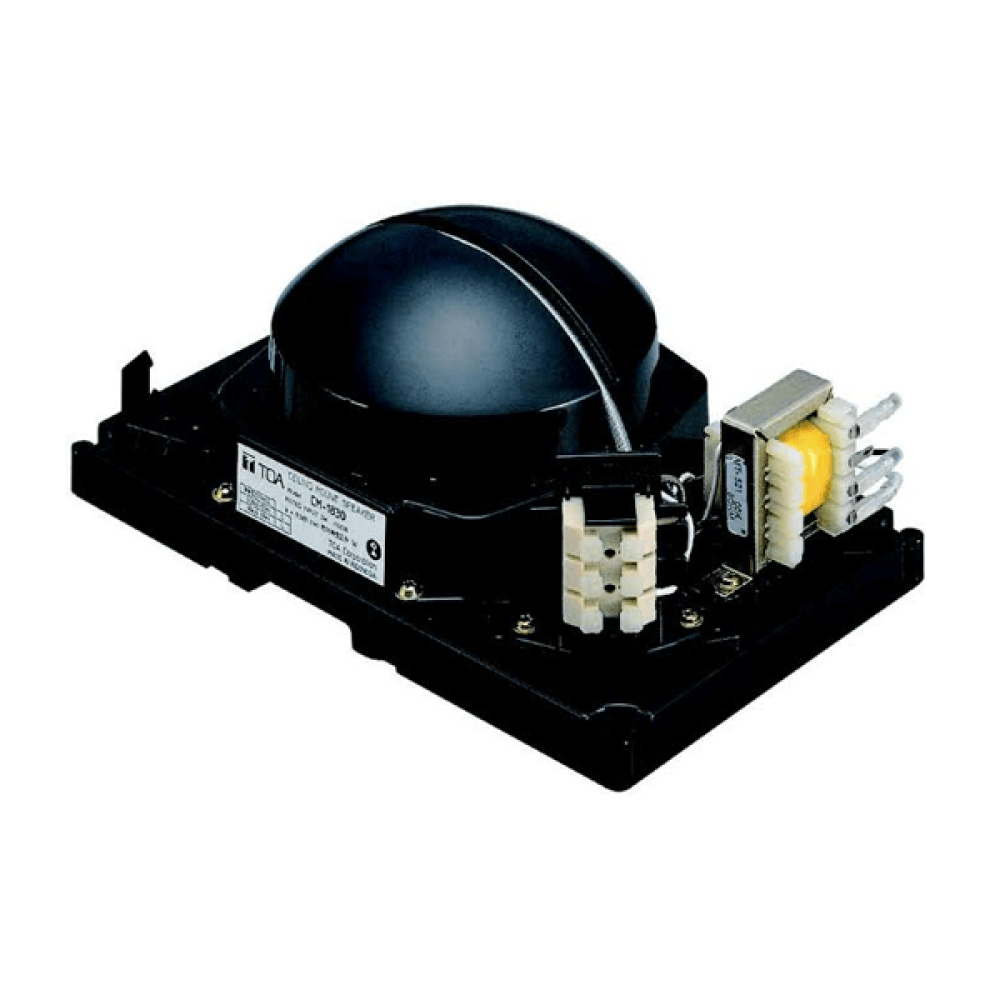

Toa CM-760 Separate Type Ceiling Speaker
The Toa CM-760 speaker allows selection of most suitable front panel out of the CP-70 series panels (optional) depending on the installation place. Thanks to its coil spring catch method, the panel can be easily attached to the speaker. The CM-760 comes with a push-in connector which permits instant wire connection for bridging and branch wiring. The speaker is protected by a hard speaker cover.
Specifications:
| Rated Input |
6 W |
| Rated Impedance |
1.7 kΩ (6 W), 3.3 kΩ (3 W),
(6.7 kΩ (1.5 W), 13 kΩ (0.8 W): Internal wiring must be changed) |
| Sound Pressure Level |
90 dB (1 W, 1 m) |
| Frequency Response |
100 - 16,000 Hz |
| Speaker Component |
12 cm dynamic cone-type speaker |
| Dimensions for Fixing Hole |
150 (mounting hole) × 50 (ceiling thickness) mm |
| Speaker Mounting Method |
Spring catch |
| Applicable Cables |
600 V Vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: φ0.8 - φ1.2 mm
7-core twisted copper wire: 0.75 - 1.25 m㎡ |
| Connection |
Push-in connector (Bridging and branch connections possible.) |
| Finish |
Grille: Fire-resistant, high-impact styrene resin
(resin material grade: UL94 V-O or its equivalent), black |
| Dimensions |
215 (W) × 134 (H) × 89 (D) mm |
| Weight |
630 g |
| Applicable Panel |
CP-70 series panel (option): CP-73, CP-77 |
