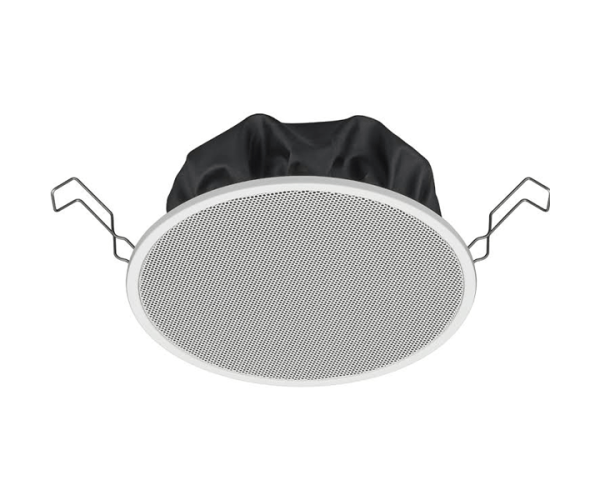

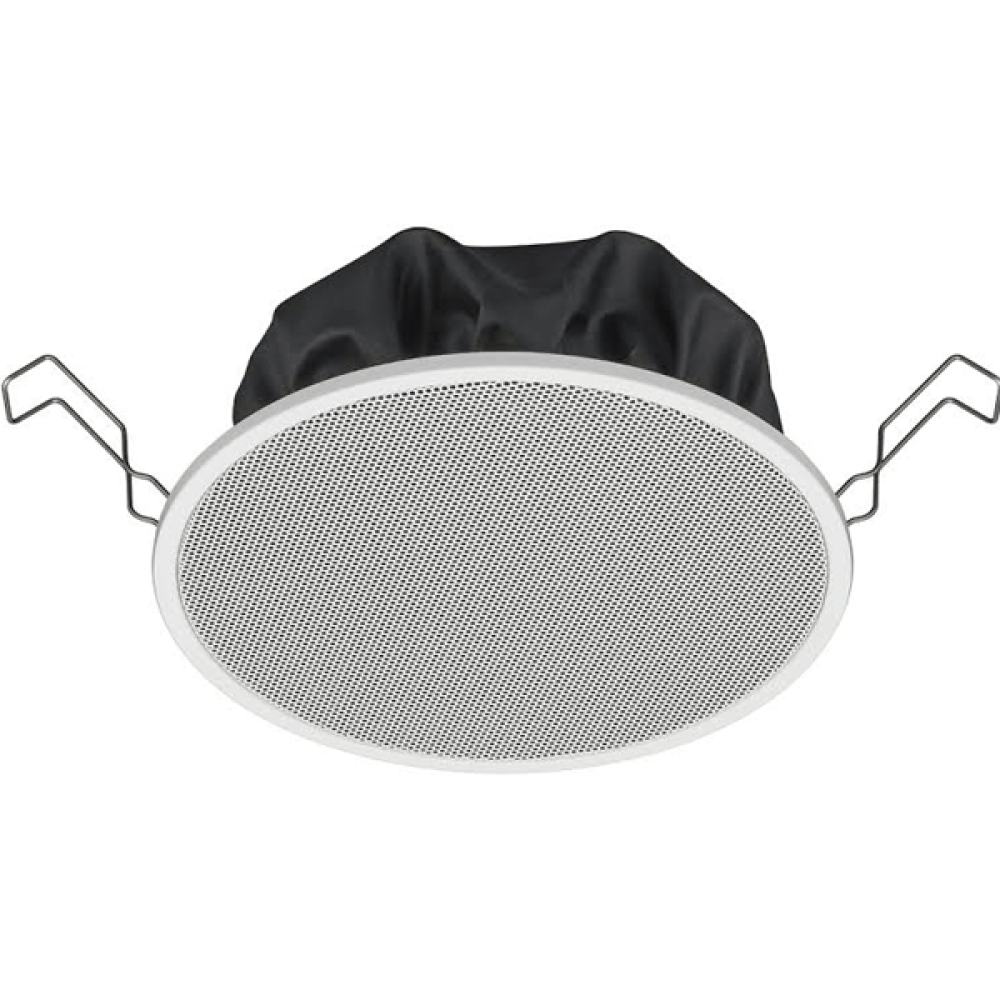

Toa PC-1860S Ceiling Mount Speaker
The Toa PC-1860S Ceiling Mount Speaker features an mounting bracket for safety installation. The PC-1860S is suitable for announcement and music use in high quality sound cone speaker. Speaker design that harmonize with venue's architecture and decor
| Rated Input | 6 W (100 V line), 3 W (70 V line) |
| Rated Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W) |
| Sensitivity | 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise) |
| Frequency Response | 80 Hz - 20 kHz (peak -20 dB) |
| Speaker Component | 12 cm (5") cone-type |
| Dimensions for Fixing Hole | Mounting hole: φ150±3 mm (5.91"±0.12") Ceiling thickness: 5 - 25 mm (0.2" - 0.98") |
| Speaker Mounting Method | Spring catch |
| Operating Temperature | -10 ℃ to 50 ℃ (14 ゜F to 122 ゜F) |
| Applicable Cable | Solid wire: 0.5 - 3 m㎡ (AWG 20 - 12) |
| Connection | Push wire connection (Bridging terminal-2 branch type) |
| Finish | Frame: Steel plate, white (RAL 9016 equivalent), paint Grille: Steel net, white (RAL 9016 equivalent), paint Mounting bracket: Steel plate, plating |
| Dimensions | φ180 × 5 (exposed section) 101 (D) mm (7.09" × 0.2" 3.98") |
| Weight | 750 g (1.65 lb) |
| Accessory | Paper pattern …1 |
