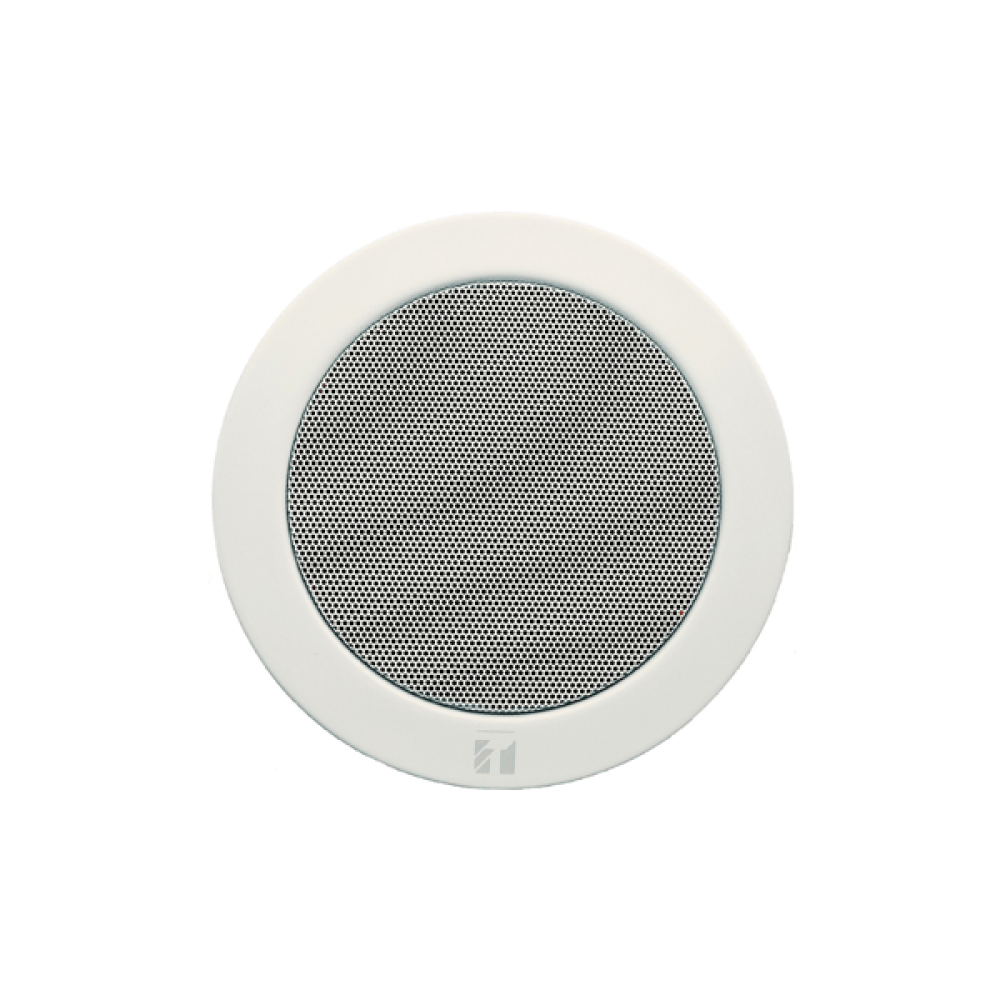

Toa PC-1869S Ceiling Mount Speaker
The Toa PC-1869S Ceiling Mount Speaker is of all metallic construction and ideal for use in a voice alarm system. It feature V-shaped spring catch mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer. The push-in type input terminal block makes cable connections easy and allows bridge wiring.
| Rated Input | 6 W (100 V line), 3 W (70 V line) |
| Rated Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W) |
| Sensitivity | 90 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise) |
| Frequency Response | 55 Hz - 18 kHz (peak -20 dB) |
| Speaker Component | 12 cm (5") cone-type |
| Dimensions for Fixing Hole | Mounting hole: φ150±3 mm (φ5.91"±0.12") |
| Ceiling Thickness for Mounting | Max. 34 mm (1.34") note: Max. 50 mm (1.97") allowable when Ceiling clamp is bent. |
| Speaker Mounting Method | Spring catch |
| Applicable Cable | 600 V vinyl-insulated cable (IV wire or HIV wire) Solid wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14) 7-core twisted wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16) |
| Connection | Push-in connector (bridging terminal-2 branch type) |
| Finish | Baffle: Steel plate, white (RAL 9016 equivalent), paint Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint |
| Dimensions | φ180 × 111 (D) mm (φ7.09" × 4.37") |
| Weight | 750 g (1.65 lb) |
