| Basic Information | ||
| Microphone Type | AUDIO-TECHNICA CASE STYLE R5 | |
| Sound Level | 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal) | |
| Switch | Flat, roll-off; 10 dB pad (nominal) | |
| Noise/Signal | 12 dB SPL | |
| Main Spec | ||
| Frequency Range | 20-20,000 Hz | |
| Sensitivity | -32 dB (25.1 mV) re 1V at 1 Pa | |
| Output Impedance | 100 ohms | |
| Dimension | 170.0 mm (6.69") long, 52.0 mm (2.05") maximum body diameter | |
| Weight | 12.7 oz (360 g) | |
| Polar pattern | Cardioid | |
| Connector | Integral 3-pin XLRM-type | |
| Power Module | 48V DC, 4.2 mA typical | |

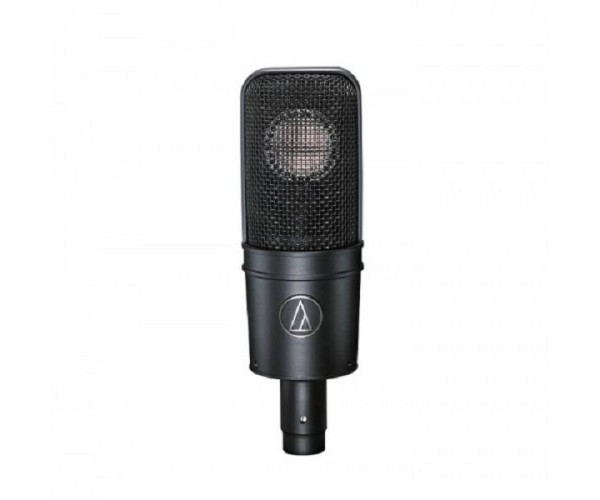

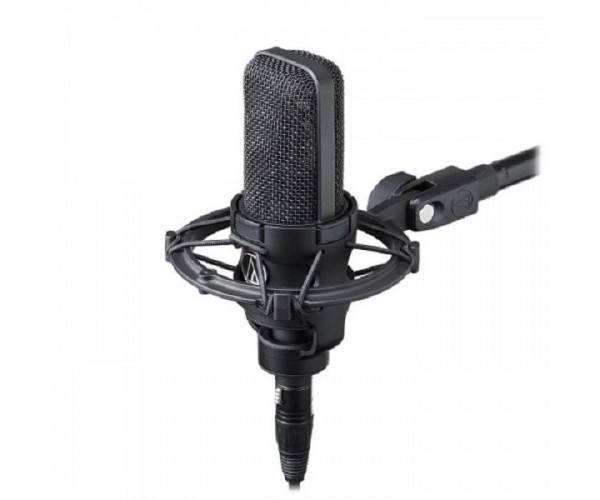

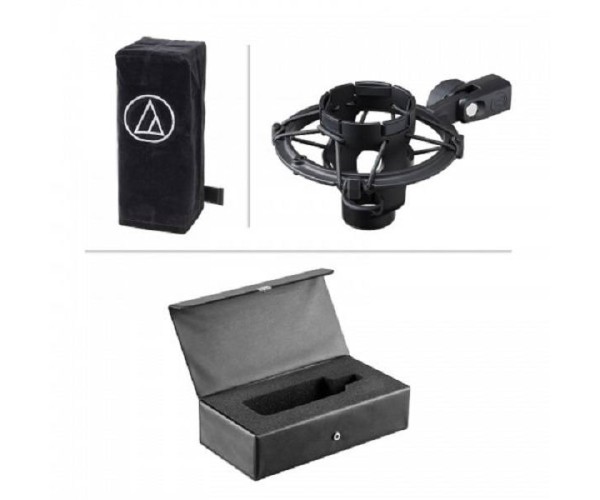

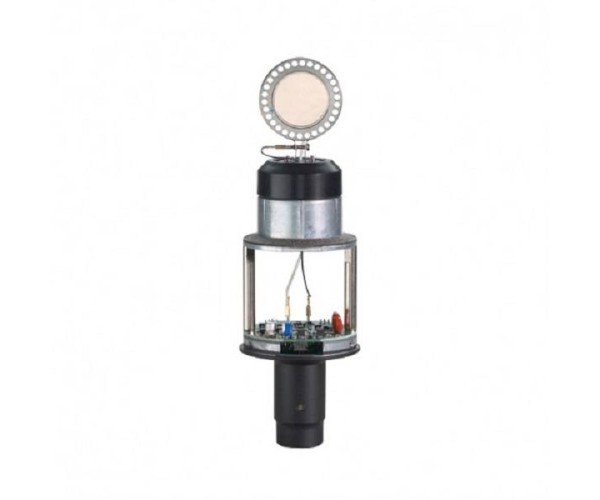

Audio Technica AT4040 cardioid externally polarized (DC bias) true condenser, state-of-the-art surface-mount electronics microphone provides A-T's stringent consistency and improved isolation of desired sound source at low noise. Its technically-advanced large diaphragm tensioned and high-SPL capability ensure less noise, smooth & natural sound with great versatility. Moreover, it is well equipped with custom shock mount, nickel-plated brass & acoustic element baffle and switchable 80 Hz high-pass filter and 10 dB pad for technical precision and artistic inspiration with enhanced element stability and optimal sensitivity. Transformer less circuitry virtually of this device provides superior correlation of high-speed transients and less frequency distortion. It reduces unwanted internal reflections in open acoustical environment of the symmetrical housing assembly.
