Toa PC-2852 Ceiling Mount Speaker

Toa PC-2852 Ceiling Mount Speaker
Save: 200৳
N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.
Toa PC-2852 Ceiling Mount Speaker

Features

  • Stock: In Stock

Cash Discount Price

3,300৳
3,500৳
Check available payment method
Contact for bulk quantity: 01755532345

Monthly EMI Price

301৳
Total 3,402৳ need to pay in 12 month.
Price Click here to view 25 banks EMI Plans
Ex Tax: 3,300৳
  • Please confirm availability before completing your purchase by calling us.
  • The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.
  • We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.
  • We cannot guarantee that the information on this page is 100% accurate. Multimedia Kingdom is not responsible for any results obtained from using this information.

Toa PC-2852 Ceiling Mount Speaker

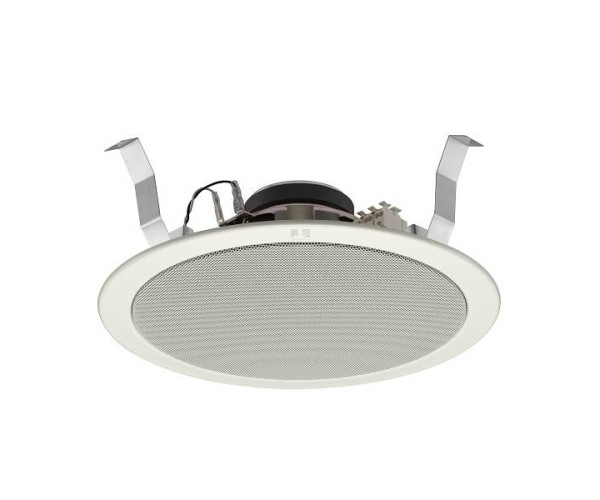

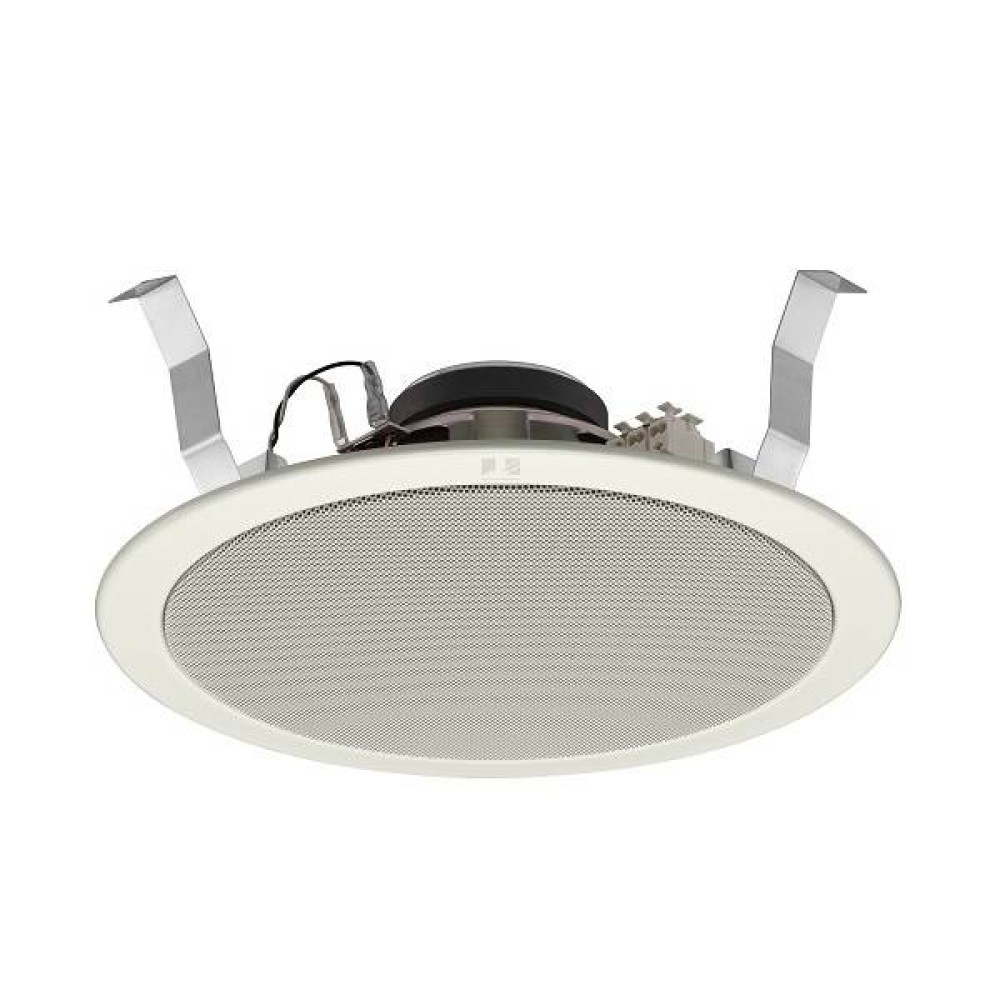

The Toa PC-2852 Ceiling Mount Speaker is of all metallic construction and ideal for use in a voice alarm system. It feature spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer. The push-in type input terminal block makes cable connections easy and allows bridge wiring.

Specifications:

Rated Input 15 W (100 V, 70 V line)
Rated Impedance 100 V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W) 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W)
Sensitivity 96 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
Frequency Response 45 Hz - 20 kHz (peak -20 dB)
Speaker Component 20 cm (8") coaxial cone-type
Dimensions for Fixing Hole Mounting hole: φ250±3 mm (φ9.84"±0.12") Ceiling thickness: 5 - 25 mm (0.2" - 0.98")
Speaker Mounting Method Spring clamp
Applicable Cable 600 V vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14) 7-core twisted copper wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16)
Connection Push-in connector (bridging terminal-2 branch type)
Finish Baffle: Steel plate, white (RAL 9016 equivalent), paint Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint
Dimensions φ280 × 92 (D) mm (φ11.02" × 3.62")
Weight 1.6 kg (3.53 lb)
Accessory Paper pattern …1
