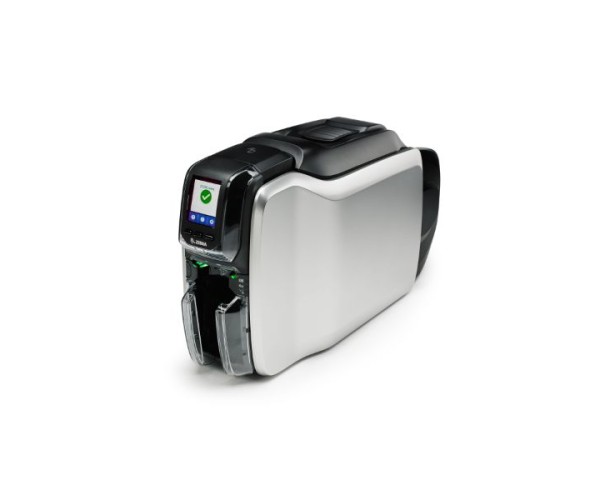

Name: Zebra ZC300 Dual Sided Card Printer
Brand: Zebra
Availability: InStock

Main Features
Display	Graphical colour LCD
Technical Specifications
Resolution	300 dpi (11.8 dots/mm) print resolution Image size: 1006 x 640 pixels
Appearance
Product Model	Zebra ZC300 Dual Sided ID Card Printer
Product Code	ZC300
Dimension	10.2 x 6.2 x 18.4 inch / 258 x 157 x 468 mm
Supplies Specifications	NOTE: The ZC300 printer is designed to work only with Zebra genuine ribbons. Ribbons are included in a simple-to-load recyclable cartridge.
Operating Temp	59º F to 95º F/15º C to 35º C
Weight	8.8 lbs (4.0kg)
Media Storage	— Temperature: 41º F to 77º F/5º C to 25º C — Humidity: 35% to 65% non-condensing
Electrical	• Auto-switching single-phase AC power • Operating range: 90-132VAC and 190-264VAC RMS • Frequency range: 47-63 Hz • FCC Class A
USB 2.0	Standard
Built-in 10/100 Ethernet	Built-in 10/100 Ethernet
802.11ac	Optional
Encoding Options And Specifications	Magnetic stripe encoder — ISO 7811 (new and pre-encoded; tracks 1, 2, and 3; high and low coercivity; stripe down and stripe up with duals-sided printers) * • Third party contactless encoder integration kit (ZIP Pocket)* • EPCglobal Gen 2 UHF RFID encoder *Field upgradeable options
Microsoft Windows Certified	Windows Server 2008 (32 and 64 bit), Windows 7 (32 bit and 64 bit) Windows 8 and Windows 8.1 (32 bit and 64 bit compatible) Windows Server 2012 (64 bit) Windows 10 (32 bit and 64 bit) Windows Server 2016,Windows drivers include: • Color coded printer status indicators for the operator • Black panel extraction and controls for specialty ribbon panels with image preview • Configuration utility to limit access by operators to change image quality and printer settings • Advanced printer configuration, security settings and diagnostics capabilities
Linux	Ubuntu 16..X (64 Bit)
Apple	MAC OS X 10.13.X (64 bit)
Additional Features	• Card flipper for dual-sided printing* • 10 card reject bin is standard with dual-sided printers* • Lockable enclosure* *Field upgradeable options
Multiplatform Software Development Kit (SDK)	• Windows C#/.Net and Java Printer Software Development Kit (SDK) • One SDK supports Android, Java and Windows environments • Easily build card-printing apps with complete control over print functionality from Windows, Linux, Mac OS and Android environments • Enable card printing from Android mobile devices • Incorporate encryption and host authentication (Windows only) • Includes documentation and source code examples
CardStudio	A simple-to-learn and feature-rich card design software that makes it easy to design loyalty cards, gift cards, ID cards and more.
Print Touch	With a single tap, you can use Android-based mobile devices to access how-to and troubleshooting information to help keep printers up, running and available.
Printer Profile Manager Enterprise (PPME)	PPME facilitates the centralized control and management of a large number of Card printers via an intuitive Web interface. This application makes it easy to navigate through all the Card Printer settings and quickly create your printer profiles with just a handful of ‘clicks’. Update and manage networked Enterprise Zebra Link-OS printers from a single console automatically with a direct encrypted connection to protect sensitive data.
About Print DNA	Print DNA propels your Zebra Link-OS for Card printers into a class of their own, providing Zebra-only software tools that make life easier for everyone who touches your printers, from printing to printer management and application development.
Warranty
Standard Features	• 300 dpi (11.8 dots/mm) print resolution • 2 GB flash memory • Image size: 1006 x 640 pixels • Auto calibration of ribbon • USB 2.0 and Ethernet 10/100 connectivity • 100 card capacity auto-adjusting input hopper (30 mil) • 100 card capacity output hopper (30 mil) • Manual card feeding capability with LED bezel • Graphical color LCD • 3 Tricolor printer status indicator lights • Kensington® secure lock slot • Print Touch NFC tag for online printer help and documentation access • Printer host authentication • Data encryption
Printing Specifications	• Dye-sublimation thermal transfer direct to card print method • Full-color or monochrome printing • Single and dual-sided printing • Edge-to-edge printing on standard CR-80 media Printing throughput (cards per hour) based on batch printing with USB connectivity. Times may vary depending on the computer configuration. • 900 cards/hour single sided monochrome • 200 cards/hour single-sided YMCKO • 140 cards/hour dual-sided YMCKOK • 450 cards/hour dual sided monochrome
Ribbon Description	-Cartridge Image Count -YMCKO* 200 -YMCKO* 300 -YMCKOK* 200 -½ YMCKO* 400 -½ YMCKOKO* 250 -YMCKLL* 200 -YMCPKO* 200 -SrDYMCKO* 200 -KrO* 700 -KdO* 700 -Black Monochrome* 2000 -Black Monochrome 1500 -White Monochrome* 1500 -Red Monochrome 1500 -Blue Monochrome 1500 -Gold Monochrome 1500 -Silver Monochrome 1500
Media Specifications	Ribbon availability may vary by region. *Zebra intelligent technology automatically detects and authenticates ribbon • Cleaning roller is included with each ribbon • Two available cleaning kit options: your choice of two (2) or five (5) isopropyl alcohol cleaning cards (1,000 images/card)
Card Compatibility	NOTE: For optimum print quality and printer performance, use of Genuine Zebra supplies is recommended. • Card Thickness: 10-40 mil* • Card Size: CR80 ISO 7810 ID-1 format, CR79* • Card Material: PVC and PVC composite • Adhesive back and writable back cards • Transparent cards* *Note: Spot color or monochrome printing recommended only on >20 mil thick cards, CR79 cards, and transparent cards.
Storage Temp.	23º F to 158º F/-5º C to 70º C
Warranty	No Warranty
Power Options	90-132VAC and 190-264VAC RMS
Print Speed	900 cards/hour single-sided monochrome 200 cards/hour single-sided YMCKO 140 cards/hour dual-sided YMCKOK 450 cards/hour dual-sided monochrome
Media Size	CR80 ISO 7810 ID-1 format, CR79
Media Type	PVC and PVC composite
Media weight	10-40 mil
Media Input Capacity	100 card capacity auto-adjusting input hopper (30 mil)
Media Output Capacity	100 card capacity output hopper (30 mil)

Zebra ZC300 Dual Sided ID Card Or Card Printer

The ZC300 Dual sided ID card or card printer delivers groundbreaking simplicity, security and connectivity options in the slimmest fit-everywhere design in this printer class. Its elegant engineering eliminates virtually all pain points typically associated with card printing, making it easier than ever to print identity, access or membership cards, or credit and debit cards. The result is push-button simplicity, regardless of whether you are printing dual-sided cards in color or in black and white.

The simplest card printer on the planet Highly graphical LED/LCD interface

The ZC300 offers highly-intuitive well-tested icons, animations and text-based messages in your own language, allowing any user to easily understand what the printer needs and how to perform virtually any function — including how to clear a printer jam, fix a ribbon, load a ribbon or cards and more.

Protect your investment with Zebra’s superior support services

No matter what level of support you need, there is a Zebra support service that is just right for your business. With Zebra OneCare, no matter what happens to your printer, it’s covered. If you just need access to technical support, choose Zebra’s Technical Software and Support (TSS). And if you want help setting up and configuring the hundreds of settings on local and remote ZC300 printers, our Install & Configuration Assistance (ICA) Select program provides the support you need.
